The Arch Coupler is a lightweight and low profile professional coupler, constructed from high tensile aluminum extrusion.

It has been developed for installations where load capacities of up to 150kg are required. The KUPO professional couplers combine strength and durability with a high degree of safety.

The Arch Coupler is designed to fit tubes with diameters between 38mm-51mm. It has double levels counter and sunk for M10 or M12 hex for customer solutions. It has a black anodized finish.

• Built for heavy-duty lighting equipment and comes with a 16mm receiver, spigot and a 28mm receiver
• Supports up to 300kg on the 28mm attachment, and 40kg on the 16mm attachment
• Fits pipes/tube dia: 48mm-51mm
• Constructed from high-tensile aluminum extrusion

Specifications

• Built for heavy-duty lighting equipment and comes with a 16mm receiver, spigot and a 28mm receiver
• Supports up to 300kg on the 28mm attachment, and 40kg on the 16mm attachment
• Fits pipes/tube dia: 48mm-51mm
• Constructed from high-tensile aluminum extrusion

Specifications

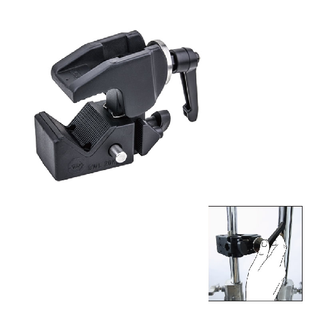

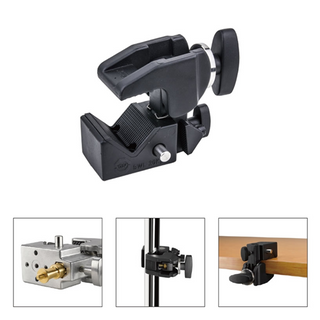

The Convi Clamp is more than just an amazing clamp it's the foundation of an entire grip system. The all-metal Convi Clamp is made from a lightweight alloy that will support loads of up to 20kg. It features a hexagonal receiver that accepts dozens of Convi accessories from a simple stud to the versatile Max Arm to mount almost any light fixture camera or accessory. The receiver features a spring locking safety system to ensure that the Convi accessory won't separate from the clamp if the locking screw loosens unexpectedly. The Convi Clamp has a jaw that will extend from 5-51mm in diameter. It also features a saddle to securely mount it on flat surfaces. It comes in a black finish.

The Convi Clamp is more than just an amazing clamp it's the foundation of an entire grip system. The all-metal Convi Clamp is made from a lightweight alloy that will support loads of up to 20kg. It features a hexagonal receiver that accepts dozens of Convi accessories from a simple stud to the versatile Max Arm to mount almost any light fixture camera or accessory. The receiver features a spring locking safety system to ensure that the Convi accessory won't separate from the clamp if the locking screw loosens unexpectedly. The Convi Clamp has a jaw that will extend from 5-51mm in diameter. It also features a saddle to securely mount it on flat surfaces. It comes in a black finish.

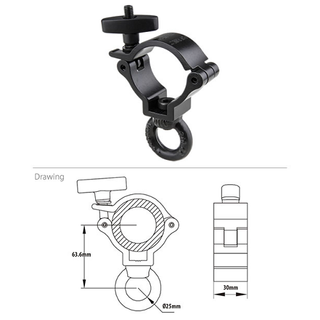

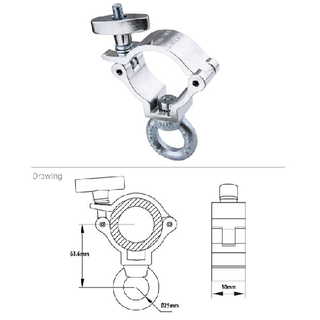

KUPO burger coupler with eye ring (KCP-903B) is made of high-strength tensile 6061-T6 extruded aluminum alloy, ensuring the greatest durability. It comes with free swiveling M10 eye ring (with inside diameter 25mm), making it a great suspension connection or rigging point. Load capacity 200kg and suitable for tube diameter 48-51mm. T-shape handle provides comfortable utility to user. TUV certified.

Features

• 6061 T6 High Tensile Strength Aluminum Alloy.
• Suitable for tube diameter 48~51mm.
• With T handle for easy operation.
• Load Capacity 200kg (440lbs).
• TUV certified.
• Swiveling M10 eye ring provides the convenience for equipment suspension
• Colour: Black
• Weight: 0.24kg
• WLL: 200kg
• 6061-T6 aluminum extrusion
• Tube Suitable: 48~51mm
• With M10 Eye Ring
• T-handle
• TUV Certified

Tags

Stage 2" Burger Coupler, Burger Coupler with Eye Ring, swivel coupler, Stage burger coupler, Kupo KCP-903 equivalent, rigging coupler, stage clamp, truss coupler, Matthews swivel clamp, Matthews burger coupler, Manfrotto grip clamp, 48mm tube coupler, 51mm tube coupler, heavy-duty coupler, eye ring coupler, truss mount, lighting clamp, event rigging, theater coupler, pipe coupling, aluminum coupler, production equipment, stage equipment clamp, film set accessories, professional rigging, secure mounting, studio rigging clamp.

KUPO burger coupler with eye ring (KCP-903B) is made of high-strength tensile 6061-T6 extruded aluminum alloy, ensuring the greatest durability. It comes with free swiveling M10 eye ring (with inside diameter 25mm), making it a great suspension connection or rigging point. Load capacity 200kg and suitable for tube diameter 48-51mm. T-shape handle provides comfortable utility to user. TUV certified.

Features

• 6061 T6 High Tensile Strength Aluminum Alloy.
• Suitable for tube diameter 48~51mm.
• With T handle for easy operation.
• Load Capacity 200kg (440lbs).
• TUV certified.
• Swiveling M10 eye ring provides the convenience for equipment suspension
• Colour: Chrome
• Weight: 0.24kg
• WLL: 200kg
• 6061-T6 aluminum extrusion
• Tube Suitable: 48~51mm
• With M10 Eye Ring
• T-handle
• TUV Certified

Tags

Stage 2" Burger Coupler, Burger Coupler with Eye Ring, swivel coupler, Stage burger coupler, Kupo KCP-903 equivalent, rigging coupler, stage clamp, truss coupler, Matthews swivel clamp, Matthews burger coupler, Manfrotto grip clamp, 48mm tube coupler, 51mm tube coupler, heavy-duty coupler, eye ring coupler, truss mount, lighting clamp, event rigging, theater coupler, pipe coupling, aluminum coupler, production equipment, stage equipment clamp, film set accessories, professional rigging, secure mounting, studio rigging clamp.

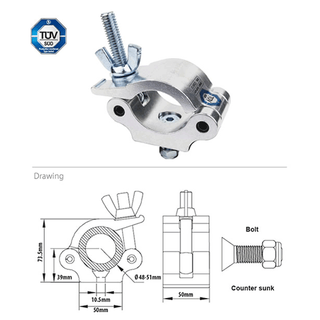

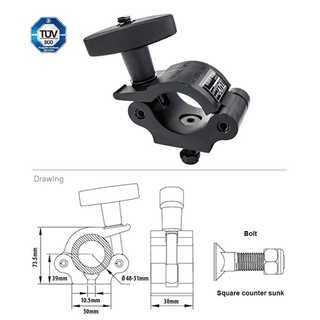

KUPO 2" Half Coupler with M10 countersunk head screws and nylon non-slip nut (KCP-831) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The load can be Up to 500 kg, the suitable pipe diameter is 48~51mm, and it has passed the German TUV safety certification. The butterfly knob provides a good force point for both hands, and it can be locked firmly without additional tools.

The end of the single eye screw has broken teeth , to prevent the wing nut from falling. M10 screws are suitable for all kinds of lamp handles, suitable for stage performances, theaters, studios and other applications.

Features

• 6061-T6 Aluminum
• Suitable for Tube dia. 48~51mm
• Load capacity up to 500 kg
• TUV certificated
• The curved inner wall does not damage the Truss surface
• The base is equipped with M10 size hanging screws
• Broken tooth treatment to avoid the wing nut from falling
• Weight:0.52
• WLL:500kg
• 6061-T6 aluminum extrusion
• For Tube:48~51mm
• Wing nut
• TUV certified

Tags

half coupler, aluminum half coupler, 2" half coupler, rigging clamp, lighting clamp, pipe clamp, stage rigging, truss clamp, grip clamp, half coupler clamp, lighting rig accessories, adjustable half coupler, Matthews 401137, Matthews 401021, Manfrotto C462 LP Eye Coupler, stage equipment, professional rigging, truss mounting, half clamp, universal clamp, event rigging, baby coupler, truss accessory, lighting mounting, rigging accessories, lighting equipment, film production accessories, professional grip tools, Kupo half coupler, half coupler alternative, coupler for truss, coupler for lighting fixtures.

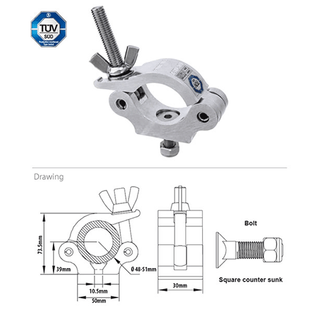

KUPO 2" Half Coupler with M10 countersunk head screws and nylon non-slip nut (KCP-830) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The narrow version of the hook can load up to 300 kg, the suitable pipe diameter is 48~51mm, and it has passed the German TUV safety certification. The butterfly knob provides a good force point for both hands, and it can be locked firmly without additional tools.

The end of the single eye screw has broken teeth , to prevent the wing nut from falling. M10 screws are suitable for all kinds of lamp handles, suitable for stage performances, theaters, studios and other applications.

Features

• 6061-T6 Aluminum
• Suitable for Tube dia. 48~51mm
• Load capacity up to 300 kg
• TUV certificated
• The curved inner wall does not damage the Truss surface
• The base is equipped with M10 size hanging screws
• Broken tooth treatment to avoid the wing nut from falling
• Weight:0.3
• WLL:230kg
• 6061-T6 aluminum extrusion
• For Tube:48~51mm
• Wing nut
• TUV certified

Tags

half coupler, aluminum half coupler, 2" half coupler, rigging clamp, lighting clamp, pipe clamp, stage rigging, truss clamp, grip clamp, half coupler clamp, lighting rig accessories, adjustable half coupler, Matthews 401137, Matthews 401021, Manfrotto C462 LP Eye Coupler, stage equipment, professional rigging, truss mounting, half clamp, universal clamp, event rigging, baby coupler, truss accessory, lighting mounting, rigging accessories, lighting equipment, film production accessories, professional grip tools, Kupo half coupler, half coupler alternative, coupler for truss, coupler for lighting fixtures, t handle, t-handle, slim coupler, slim half coupler

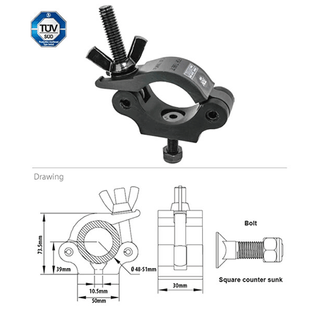

KUPO 2" Half Coupler with M10 countersunk head screws and nylon non-slip nut (KCP-830) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The narrow version of the hook can load up to 300 kg, the suitable pipe diameter is 48~51mm, and it has passed the German TUV safety certification. The butterfly knob provides a good force point for both hands, and it can be locked firmly without additional tools.

The end of the single eye screw has broken teeth , to prevent the wing nut from falling. M10 screws are suitable for all kinds of lamp handles, suitable for stage performances, theaters, studios and other applications.

Features

• Black
• 6061-T6 Aluminum
• Suitable for Tube dia. 48~51mm
• Load capacity up to 300 kg
• TUV certificated
• The curved inner wall does not damage the Truss surface
• The base is equipped with M10 size hanging screws
• Broken tooth treatment to avoid the wing nut from falling
• Weight:0.3
• WLL:230kg
• 6061-T6 aluminum extrusion
• For Tube:48~51mm
• Wing nut
• TUV certified

Tags

half coupler, aluminum half coupler, 2" half coupler, rigging clamp, lighting clamp, pipe clamp, stage rigging, truss clamp, grip clamp, half coupler clamp, lighting rig accessories, adjustable half coupler, Matthews 401137, Matthews 401021, Manfrotto C462 LP Eye Coupler, stage equipment, professional rigging, truss mounting, half clamp, universal clamp, event rigging, baby coupler, truss accessory, lighting mounting, rigging accessories, lighting equipment, film production accessories, professional grip tools, Kupo half coupler, half coupler alternative, coupler for truss, coupler for lighting fixtures, t handle, t-handle, slim coupler, slim half coupler

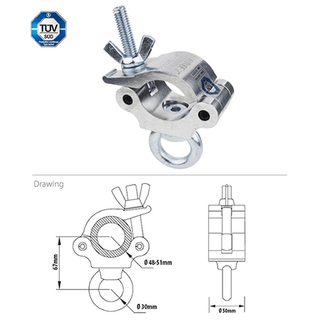

KUPO 2" Coupler with M12 lifting ring (KCP-833) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The inner diameter of the M12 lifting ring is 30mm and can be 360 It can be used as a suspension connection point, etc. The load can be up to 340 kg, only 650 grams, the suitable pipe diameter is 48~51mm, and has passed the German TUV safety certification, the butterfly knob provides good force for both hands It can be locked firmly without additional tools.

The end of the single eye screw has broken teeth to prevent the butterfly knob from falling. It is especially suitable for stage performances, theaters, studios and other applications.

Features

• 6061-T6 high strength aluminum alloy material
• Suitable for 48~51mm pipe diameter
• Load capacity up to 340 kg
• TUV international safety certification
• The curved inner wall does not damage the Truss surface
• Base M12 lifting ring for hanging chain, cable or rope
• Broken tooth treatment to avoid the butterfly knob from falling
• Weight:0.65kg
• WLL:340kg
• 6061-T6 aluminum extrusion
• For dia. 48~51mm tube
• Wing nut
• Comes with M12 lifting ring
• TUV certified

Tags

half coupler with eye ring, eye ring coupler, rigging coupler with eye, 2" half coupler with eye, coupler with eyelet, lighting rigging accessories, stage rigging coupler, adjustable rigging coupler, truss coupling with eye, professional rigging tools, lighting mounting coupler, eye bolt coupler, lighting accessories, truss eye ring coupler, Matthews 401137, Matthews 401021, Manfrotto 1314B, pipe clamp with eye, adjustable stage coupler, universal rigging coupler, stage lighting clamp, pipe-to-pipe coupler, event rigging equipment, Kupo rigging clamp, professional stage equipment, stage production coupler, universal half coupler, rigging clamp with eye ring.

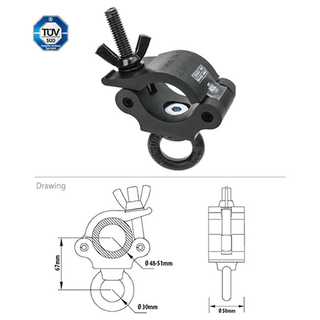

KUPO 2" Coupler with M12 lifting ring (KCP-833) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The inner diameter of the M12 lifting ring is 30mm and can be 360 It can be used as a suspension connection point, etc. The load can be up to 340 kg, only 650 grams, the suitable pipe diameter is 48~51mm, and has passed the German TUV safety certification, the butterfly knob provides good force for both hands It can be locked firmly without additional tools.

The end of the single eye screw has broken teeth to prevent the butterfly knob from falling. It is especially suitable for stage performances, theaters, studios and other applications.

Features

• Colour: Black
• 6061-T6 high strength aluminum alloy material
• Suitable for 48~51mm pipe diameter
• Load capacity up to 340 kg
• TUV international safety certification
• The curved inner wall does not damage the Truss surface
• Base M12 lifting ring for hanging chain, cable or rope
• Broken tooth treatment to avoid the butterfly knob from falling
• Weight:0.65kg
• WLL:340kg
• 6061-T6 aluminum extrusion
• For dia. 48~51mm tube
• Wing nut
• Comes with M12 lifting ring
• TUV certified

Tags

half coupler with eye ring, eye ring coupler, rigging coupler with eye, 2" half coupler with eye, coupler with eyelet, lighting rigging accessories, stage rigging coupler, adjustable rigging coupler, truss coupling with eye, professional rigging tools, lighting mounting coupler, eye bolt coupler, lighting accessories, truss eye ring coupler, Matthews 401137, Matthews 401021, Manfrotto 1314B, pipe clamp with eye, adjustable stage coupler, universal rigging coupler, stage lighting clamp, pipe-to-pipe coupler, event rigging equipment, Kupo rigging clamp, professional stage equipment, stage production coupler, universal half coupler, rigging clamp with eye ring.

KUPO 2" Half Coupler with M10 countersunk head screws and nylon non-slip nut (KCP-831) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The load can be Up to 500 kg, the suitable pipe diameter is 48~51mm, and it has passed the German TUV safety certification. The butterfly knob provides a good force point for both hands, and it can be locked firmly without additional tools.

The end of the single eye screw has broken teeth , to prevent the wing nut from falling. M10 screws are suitable for all kinds of lamp handles, suitable for stage performances, theaters, studios and other applications.

Features

• 6061-T6 Aluminum
• Black
• Suitable for Tube dia. 48~51mm
• Load capacity up to 500 kg
• TUV certificated
• The curved inner wall does not damage the Truss surface
• The base is equipped with M10 size hanging screws
• Broken tooth treatment to avoid the wing nut from falling
• Weight:0.52
• WLL:500kg
• 6061-T6 aluminum extrusion
• For Tube:48~51mm
• Wing nut
• TUV certified

Tags

half coupler, aluminum half coupler, 2" half coupler, rigging clamp, lighting clamp, pipe clamp, stage rigging, truss clamp, grip clamp, half coupler clamp, lighting rig accessories, adjustable half coupler, Matthews 401137, Matthews 401021, Manfrotto C462 LP Eye Coupler, stage equipment, professional rigging, truss mounting, half clamp, universal clamp, event rigging, baby coupler, truss accessory, lighting mounting, rigging accessories, lighting equipment, film production accessories, professional grip tools, Kupo half coupler, half coupler alternative, coupler for truss, coupler for lighting fixtures.

KUPO 2" Half Coupler with M10 countersunk head screws and nylon non-slip nut (KCP-831) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The load can be Up to 500 kg, the suitable pipe diameter is 48~51mm, and it has passed the German TUV safety certification. The butterfly knob provides a good force point for both hands, and it can be locked firmly without additional tools.

The end of the single eye screw has broken teeth , to prevent the wing nut from falling. M10 screws are suitable for all kinds of lamp handles, suitable for stage performances, theaters, studios and other applications.

Features

• Black
• 6061-T6 Aluminum
• Suitable for Tube dia. 48~51mm
• Load capacity up to 500 kg
• TUV certificated
• The curved inner wall does not damage the Truss surface
• The base is equipped with M10 size hanging screws
• Broken tooth treatment to avoid the wing nut from falling
• Weight:0.52
• WLL:500kg
• 6061-T6 aluminum extrusion
• For Tube:48~51mm
• T-Handle
• TUV certified

Tags

half coupler, aluminum half coupler, 2" half coupler, rigging clamp, lighting clamp, pipe clamp, stage rigging, truss clamp, grip clamp, half coupler clamp, lighting rig accessories, adjustable half coupler, Matthews 401137, Matthews 401021, Manfrotto C462 LP Eye Coupler, stage equipment, professional rigging, truss mounting, half clamp, universal clamp, event rigging, baby coupler, truss accessory, lighting mounting, rigging accessories, lighting equipment, film production accessories, professional grip tools, Kupo half coupler, half coupler alternative, coupler for truss, coupler for lighting fixtures, t handle, t-handle

KUPO 2" Half Coupler with M10 countersunk head screws and nylon non-slip nut (KCP-831) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The load can be Up to 500 kg, the suitable pipe diameter is 48~51mm, and it has passed the German TUV safety certification. The butterfly knob provides a good force point for both hands, and it can be locked firmly without additional tools.

The end of the single eye screw has broken teeth , to prevent the wing nut from falling. M10 screws are suitable for all kinds of lamp handles, suitable for stage performances, theaters, studios and other applications.

Features

• 6061-T6 Aluminum
• Suitable for Tube dia. 48~51mm
• Load capacity up to 500 kg
• TUV certificated
• The curved inner wall does not damage the Truss surface
• The base is equipped with M10 size hanging screws
• Broken tooth treatment to avoid the wing nut from falling
• Weight:0.52
• WLL:500kg
• 6061-T6 aluminum extrusion
• For Tube:48~51mm
• T-Handle
• TUV certified

Tags

half coupler, aluminum half coupler, 2" half coupler, rigging clamp, lighting clamp, pipe clamp, stage rigging, truss clamp, grip clamp, half coupler clamp, lighting rig accessories, adjustable half coupler, Matthews 401137, Matthews 401021, Manfrotto C462 LP Eye Coupler, stage equipment, professional rigging, truss mounting, half clamp, universal clamp, event rigging, baby coupler, truss accessory, lighting mounting, rigging accessories, lighting equipment, film production accessories, professional grip tools, Kupo half coupler, half coupler alternative, coupler for truss, coupler for lighting fixtures, t handle, t-handle

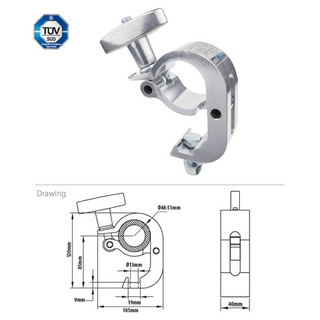

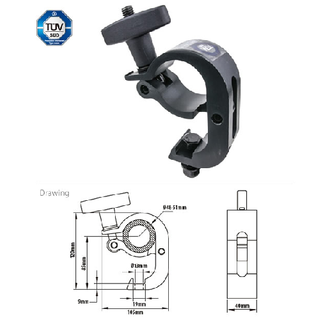

Constructed from high tensile 6061 aluminum extrusion, the handcuff clamp is one of the most popular clamps in the industry. Thanks to a triggering mechanical design, this clamp is made to help rig heavy luminaries quickly and effortlessly

• High tensile 6061-T6 aluminum - Black
• Fits O.D.48-51mm tube
• SWL: 200kg
• TUV approval Thanks to a triggering mechanical design, this clamp is made to help rig heavy luminaries quickly and effortlessly
• Handcuff coupler with ergonomic T handle. M10 hex head bolt as standard. The double level's counter sunk for M10 or M12 hex head bolt.

Specifications

Weight: 0.63kg

Color: Chrome

Product Height (cm): 4.0cm

Product Length (cm): 17.3cm

Product Width (cm): 13.78cm

Product Weight (kg): 0.63kg

Maximum Jaw Diameter (mm): 51.0mm

Minimum Jaw Diameter (mm): 48.0mm

Primary Material: Aluminum

Warranty: Limited Two-Year Warranty

Tags

handcuff clamp, scanner clamp, quick-release clamp, T-handle clamp, hook clamp, truss clamp, lighting clamp, stage clamp, pipe clamp, Kupo handcuff clamp, black handcuff clamp, half coupler with bolt, heavy-duty lighting clamp, trigger clamp, truss mount clamp, Manfrotto B541005, Matthews B541004, rigging clamp, lighting rig accessory, theater clamp, professional stage clamp, quick-release lighting clamp, mounting clamp, pipe-to-truss clamp, secure lighting clamp, adjustable handcuff clamp, event production hardware, Kupo T-handle clamp.

Constructed from high tensile 6061 aluminum extrusion, the handcuff clamp is one of the most popular clamps in the industry. Thanks to a triggering mechanical design, this clamp is made to help rig heavy luminaries quickly and effortlessly

• High tensile 6061-T6 aluminum - Black
• Fits O.D.48-51mm tube
• SWL: 200kg
• TUV approval Thanks to a triggering mechanical design, this clamp is made to help rig heavy luminaries quickly and effortlessly
• Handcuff coupler with ergonomic T handle. M10 hex head bolt as standard. The double level's counter sunk for M10 or M12 hex head bolt.

Specifications

Weight: 0.63kg

Color: Black/dt>

Product Height (cm): 4.0cm

Product Length (cm): 17.3cm

Product Width (cm): 13.78cm

Product Weight (kg): 0.63kg

Maximum Jaw Diameter (mm): 51.0mm

Minimum Jaw Diameter (mm): 48.0mm

Primary Material: Aluminum

Warranty: Limited Two-Year Warranty

Tags

handcuff clamp, scanner clamp, quick-release clamp, T-handle clamp, hook clamp, truss clamp, lighting clamp, stage clamp, pipe clamp, Kupo handcuff clamp, black handcuff clamp, half coupler with bolt, heavy-duty lighting clamp, trigger clamp, truss mount clamp, Manfrotto B541005, Matthews B541004, rigging clamp, lighting rig accessory, theater clamp, professional stage clamp, quick-release lighting clamp, mounting clamp, pipe-to-truss clamp, secure lighting clamp, adjustable handcuff clamp, event production hardware, Kupo T-handle clamp.
