1 to 4 of 4 results

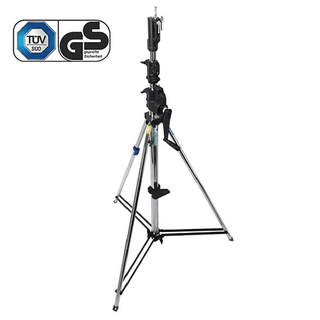

Kupo 483BT Black 3 Section Wind-Up Stand

Kupo 483T 3 Section Wind-Up Stand

KU-483BT

Overview

The KUPO 3 Sct. Wind-Up Stand with TUV certification is a reliable and sturdy solution for photographers and videographers who need to support heavy lights and diffusers.

With an impressive load capacity of up to 30kg, this 3-section stand features a convenient crank handle that makes it effortless to raise and lower your equipment. For added safety, the handle is equipped with a self-locking mechanism that prevents accidental drops.

You can easily adjust the stand's height with a single clockwise revolution, which raises it by 44mm, or a counter-clockwise revolution, which lowers it by the same amount. Features the triple function universal combo head with both 1/8" (28mm) and 5/8" (16mm) receivers plus a multi-direction 5/8" (16mm) stud giving you great versatility when it comes to mounting options.

The levelling leg also allows you to compensate for inclines or uneven surfaces. Additionally, it comes equipped with a skid-proof foot-step located on the main section of its base to allow the user to stand upon it to reach the top risers and head to make adjustments if necessary.

Optional casters set (KC-100) is available for easily moving the stand while doing working in the studio.

Features

Max load: 30kg max height: 3.8m
Stand top mounted by steel bolt throigh the top tube
Triple function stand top: A 1/8" (28mm) , a 5/8" (16mm) receivers and a 5/8" (16mm) stud
Tension of the brake shoe can be adjusted with an Allen wrench
Bright color warning sticker for safety operation the leveling leg
Twin leg braces for extra strength and stability
Crank handle foldsand has precise height adjustmentsof 4.4.cm
TUV certificated

Specifications

2 Risers, 3 Sections
Column Diameter: 55mm, 45mm, 38mm
Finish: Black Powder Coated
Loading Weight: 30kg
Weight: 22.8kg
Closed Length: 181cm
Minimum Operating Height: 172.5cm
Maximum Height: 380cm
Footprint Dia.meter: 128cm
Tube Dia.: 30mm
Stand Top: Universal Stand Top With Both Junior & Baby Receiver and a Baby Stud
Material: Steel
Leveling Leg
Suggested Caster: KC-100
Optional Stand Pad: 483-BP
TUV certificate

Tags

Kupo 3-Section Wind-Up Stand, Kupo 483BT, auto self-locking stand, wind-up stand, heavy-duty stand, adjustable stand, lighting support stand, grip equipment, studio stand, photography stand, black wind-up stand, Matthews H386022, Matthews Super Wind-Up Stand, Manfrotto 087NW, Manfrotto wind-up stand, Doughty T56800, Doughty wind-up stand, three-section stand, height-adjustable, professional grip stand, secure lock mechanism, studio lighting, high load capacity stand, low base stand.

Code	Image	Product Name	Attributes		Price
KU-483BT		Kupo 483BT Black 3 Section Wind-Up Stand		Login For Price

Kupo 483T 3 Section Wind-Up Stand

KU-483T

Overview

The KUPO 3 Sct. Wind-Up Stand with TUV certification is a reliable and sturdy solution for photographers and videographers who need to support heavy lights and diffusers.

Optional casters set (KC-100) is available for easily moving the stand while doing working in the studio.

Features

Max load: 30kg max height: 3.8m
Stand top mounted by steel bolt throigh the top tube
Triple function stand top: A 1/8" (28mm) , a 5/8" (16mm) receivers and a 5/8" (16mm) stud
Tension of the brake shoe can be adjusted with an Allen wrench
Bright color warning sticker for safety operation the leveling leg
Twin leg braces for extra strength and stability
Crank handle foldsand has precise height adjustmentsof 4.4.cm
TUV certificated

Specifications

2 Risers, 3 Sections
Column Diameter: 55mm, 45mm, 38mm
Finish: Chrome
Loading Weight: 30kg
Weight: 22.8kg
Closed Length: 181cm
Minimum Operating Height: 172.5cm
Maximum Height: 380cm
Footprint Dia.meter: 128cm
Tube Dia.: 30mm
Stand Top: Universal Stand Top With Both Junior & Baby Receiver and a Baby Stud
Material: Steel
Leveling Leg
Suggested Caster: KC-100
Optional Stand Pad: 483-BP
TUV certificate

Tags

Code	Image	Product Name	Attributes		Price
KU-483T		Kupo 483T 3 Section Wind-Up Stand		Login For Price

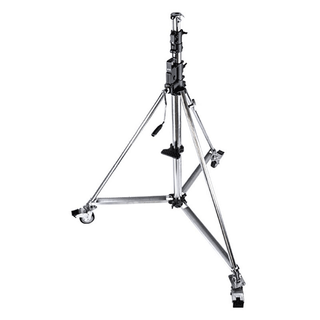

Kupo 484 H/Duty Wind-Up Stainless Stand

KUPO Heavy Duty Wind-Up Stainless Steel Stand W/ Braked Caster

KU-484

Overview

The Kupo 484 Heavy Duty Wind-Up Stand is a reliable and versatile solution for lifting heavy equipment with ease. With dual risers that extend from 179cm to 386cm, this stand can lift up to 80kg with the oversized slip-free handle. Its automatic self-locking mechanism and lifting assist with a hand-crank and auto-locking safety system ensure safe and precise operation. The center tube, legs, and U-shape struts are constructed from stainless steel, while the top two sections are made from chrome-plated steel for extra stability. Whether you're a photographer or videographer, the Kupo 484 Heavy Duty Wind-Up Stand is a reliable option for lifting heavy equipment with confidence.

Constructed from a combination of chrome plated steeland stainless steel for extra stability
Dual risers that extend from 179cm through to 386cm
28mm socket with 3 side holes for wind bracing kit
Larger foot step with skidproof texture design
The automatic self-locking mechanism to prevent the light stand from dropping unexpectedly
The optional pneumatic wheel set (KC-215A) is available
2 Risers, 3 Sections
Column Dia.meter: 70mm, 60mm, 50mm
Finish: Stainless Steel Leg & Chrome Plated Steel Column
Loading Weight: 80kg
Weight: 39kg
Closed Length: 196cm
Minimum Operating Height: 179cm
Maximum Height: 386cm
Footprint Dia.meter: 180cm
Tube Dia.: 35mm
Stand Top: Junior Receiver (29mm) with Wind Bracing Bracket
With Casters: KC-150
Leveling Leg

Tags

Kupo Heavy Duty Wind-Up Stand, Kupo KU-484, wind-up stand with casters, stainless steel stand, braked caster, studio lighting support, grip equipment, photography stand, lighting stand, adjustable height, studio support, Matthews H380000, Matthews wind-up stand, Manfrotto 409B, heavy-duty lighting stand, professional grip stand, load capacity, smooth wind-up, caster-equipped stand, durable studio stand, low base wind-up stand, grip gear, reliable stand.

Code	Image	Product Name	Attributes		Price
KU-484		Kupo 484 H/Duty Wind-Up Stainless Stand		Login For Price

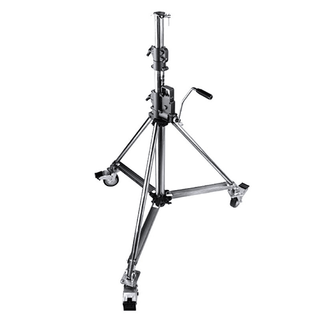

Kupo 485 Hevy Duty Wind up stand low base w/braked casters

Kupo Heavy Duty Wind-Up Low Base Steel Stand

KU-485, KS403212

Overview

Features a mechanical lifting assist with a hand-crank and an auto-locking safety system that enables a single operator to lift heavy loads with precision and confidence. The center tube, legs and U-shape struts are constructed from stainless steel with the top two chrome plated steel sections for extra stability. For safety loading weight up to 80kg in a small 51.2” footprint.

Constructed of Chrome plated steel (Top 2 section), stainless steel (center tube & legs)
Max height: 270cm / Max load: 80kg
Features a mechanical lifting assist with a hand-crank enables a single operator to lift heavy loads
Patented auto self-locking device prevent from unexpected drop-off
Low working height for easier operation
Comes with KC-150 Casters

Specifications

Weight: 30.95kg
Color: Silver
Leveling Leg: Yes
Product Height (cm): 20.0cm
Product Length (cm): 143.0cm
Product Width (cm): 28.0cm
Product Weight (kg): 30.95kg
Maximum Payload Capacity (kg): 80.0kg
Maximum Extension (cm): 270.0cm
Riser 1 Diameter (mm): 50.0mm
Riser 2 Diameter (mm): 60.0mm
Riser 3 Diameter (mm): 70.0mm
Stand Adapter Type: Junior Receiver
Footprint Diameter (cm): 130.0cm
Leg Diameter (mm): 35.0mm
Primary Material: Steel
Warranty: Limited Two-Year Warranty
Closed Length (cm): 156.0cm
Fixed Stand Adapter: Yes
Risers: 2
Removable Stand Adapter: No
Sections: 3

Tags

Kupo Heavy Duty Wind Up Stand, Kupo KU-300, wind-up stand, low base stand, steel construction, lighting stand, grip stand, studio equipment, photography support, camera support, wind-up mechanism, adjustable height stand, professional grip stand, durable steel stand, heavy-duty stand, max height stand, low-profile stand, lighting equipment, studio grip tools, 10ft lighting stand, 220cm height stand, smooth wind-up, reliable support, load capacity, studio lighting.
