Console

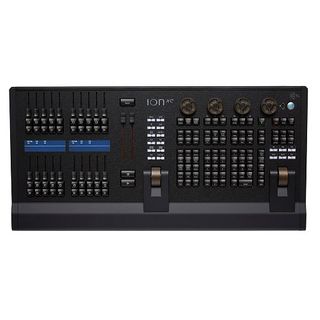

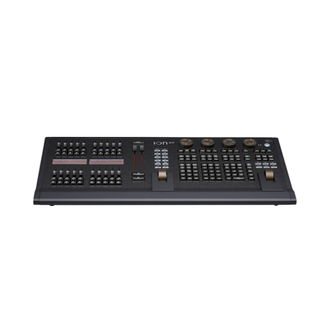

Ion Xe

From small auditoriums and houses of worship to experimental venues and touring shows, Ion-class lighting control consoles are the compact workhorses of the Eos Family. With the same backlit keyboard layout and full-featured software as their Gio- and Apex-class siblings and the option of hands-on fader control – Ion Xe consoles give you the full Eos experience in a budget-friendly and portable package.

• 12,288 Outputs
• 32,768 Control Channels (mapped to any number from 1 to 99,999)
• 100,000 Cues
• 999 Cue Lists
• 999 Submasters
• 100 Fader Pages
• 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
• 10,000 Presets (all palette)
• 10,000 Groups
• 10,000 Effects (relative, absolute or step)
• 99,999 Macros
• 10,000 Snapshots
• 10,000 Curves
• 10,000 Color Paths
• 99 discrete users
• Partitioned control
• Show import from Obsession, Express, Expression, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
• Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
• Magic Sheets suite for customized user programming and displays
• Virtual Media Server function for pixel-mapping effects, images, and animations

• Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
• Main Playback with two 100mm standard faders
• Four encoders for non-intensity parameter control
• Dedicated high-resolution intensity level wheel
• Backlit Eos keypad
• Included USB keyboard
• Solid-state hard drive
• IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
• Two individually configurable Gigabit Ethernet ports, RJ45 connectors
• One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
• Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
• sACN and Art-Net network output protocols
• Four DMX-512 / RDM 5-pin XLR ports
• Contact closure triggers via D-Sub connector
• USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
• One Littlite XLR port
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways

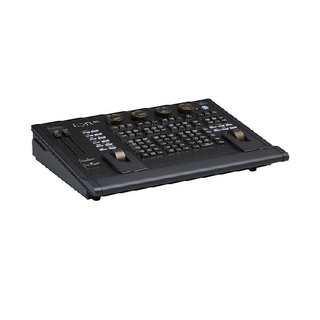

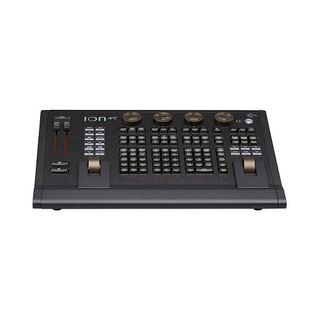

Ion Xe

From small auditoriums and houses of worship to experimental venues and touring shows, Ion-class lighting control consoles are the compact workhorses of the Eos Family. With the same backlit keyboard layout and full-featured software as their Gio- and Apex-class siblings and the option of hands-on fader control – Ion Xe consoles give you the full Eos experience in a budget-friendly and portable package.

• 2,048 Outputs
• 32,768 Control Channels (mapped to any number from 1 to 99,999)
• 100,000 Cues
• 999 Cue Lists
• 999 Submasters
• 100 Fader Pages
• 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
• 10,000 Presets (all palette)
• 10,000 Groups
• 10,000 Effects (relative, absolute or step)
• 99,999 Macros
• 10,000 Snapshots
• 10,000 Curves
• 10,000 Color Paths
• 99 discrete users
• Partitioned control
• Show import from Obsession, Express, Expression, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
• Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
• Magic Sheets suite for customized user programming and displays
• Virtual Media Server function for pixel-mapping effects, images, and animations

• Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
• Main Playback with two 100mm standard faders
• Four encoders for non-intensity parameter control
• Dedicated high-resolution intensity level wheel
• Backlit Eos keypad
• Included USB keyboard
• Solid-state hard drive
• IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
• Two individually configurable Gigabit Ethernet ports, RJ45 connectors
• One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
• Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
• sACN and Art-Net network output protocols
• Four DMX-512 / RDM 5-pin XLR ports
• Contact closure triggers via D-Sub connector
• USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
• One Littlite XLR port
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways

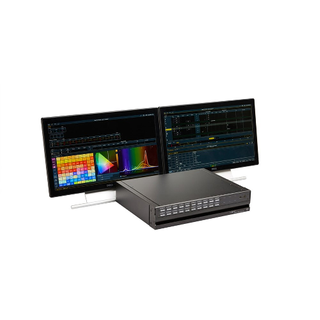

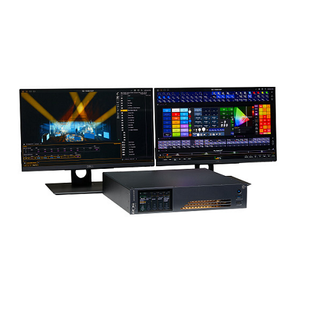

A powerful primary/backup for your Ion Xe system

Whether you need a convenient control hub backstage or in the house, or security for your long-running show, the IonXe Remote Processor Unit has everything under control. This 2U 19" rack mount device can serve as a backup for your Ion Xe or Ion Xe 20 lighting control system, or it can function as a stand-alone lighting playback controller.

The RPU offers 2,048 or 12,288 outputs, partitioned control, and access to all Eos software programming functions. The front panel of the RPU features 20 user-programmable buttons and ships with backlit labels for frequently-used and default-programmed functions. The face panel also boasts LED indicators that show whether the RPU is in Primary, Backup, Client, or Master mode and whether all RPUs in a system are synchronized and tracking.

Build your system

The Ion Xe RPU is compatible with all Eos family focus remotes. It can be used with up to two single- or multi-touch monitors and up to five USB devices - including Eos Fader Wings, Eos Motorized Fader Wings, and the Eos Programming Wing.

From small auditoriums and houses of worship to experimental venues and touring shows, Ion-class lighting control consoles are the compact workhorses of the Eos Family. With the same backlit keyboard layout and full-featured software as their Gio- and Apex-class siblings and the option of hands-on fader control IonXe consoles give you the full Eos experience in a budget-friendly and portable package.

• 12,288 Outputs
• 32,768 Control Channels (mapped to any number from 1 to 99,999)
• 100,000 Cues
• 999 Cue Lists
• 999 Submasters
• 100 Fader Pages
• 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
• 10,000 Presets (all palette)
• 10,000 Groups
• 10,000 Effects (relative, absolute or step)
• 99,999 Macros
• 10,000 Snapshots
• 10,000 Curves
• 10,000 Color Paths
• 99 discrete users
• Partitioned control
• Show import from Obsession, Express, Expression, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
• Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
• Magic Sheets suite for customized user programming and displays
• Virtual Media Server function for pixel-mapping effects, images, and animations
• Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
• Main Playback with two 100mm standard faders
• Four encoders for non-intensity parameter control
• Dedicated high-resolution intensity level wheel
• Backlit Eos keypad
• Included USB keyboard
• Solid-state hard drive
• IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
• Two individually configurable Gigabit Ethernet ports, RJ45 connectors
• One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
• Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
• sACN and Art-Net network output protocols
• Four DMX-512 / RDM 5-pin XLR ports
• Contact closure triggers via D-Sub connector
• USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
• One Littlite XLR port
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways

From small auditoriums and houses of worship to experimental venues and touring shows, Ion-class lighting control consoles are the compact workhorses of the Eos Family. With the same backlit keyboard layout and full-featured software as their Gio- and Apex-class siblings and the option of hands-on fader control IonXe consoles give you the full Eos experience in a budget-friendly and portable package.

• 2,048 Outputs
• 32,768 Control Channels (mapped to any number from 1 to 99,999)
• 100,000 Cues
• 999 Cue Lists
• 999 Submasters
• 100 Fader Pages
• 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
• 10,000 Presets (all palette)
• 10,000 Groups
• 10,000 Effects (relative, absolute or step)
• 99,999 Macros
• 10,000 Snapshots
• 10,000 Curves
• 10,000 Color Paths
• 99 discrete users
• Partitioned control
• Show import from Obsession, Express, Expression, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
• Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
• Magic Sheets suite for customized user programming and displays
• Virtual Media Server function for pixel-mapping effects, images, and animations
• Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
• Main Playback with two 100mm standard faders
• Four encoders for non-intensity parameter control
• Dedicated high-resolution intensity level wheel
• Backlit Eos keypad
• Included USB keyboard
• Solid-state hard drive
• IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
• Two individually configurable Gigabit Ethernet ports, RJ45 connectors
• One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
• Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
• sACN and Art-Net network output protocols
• Four DMX-512 / RDM 5-pin XLR ports
• Contact closure triggers via D-Sub connector
• USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
• One Littlite XLR port
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways

Eos Apex

ETC's flagship line of lighting control consoles offers a sleek control interface engineered for your comfort and customization. With generous programming surfaces and the power to run complex rigs, Eos Apex is the ultimate hands-on, professional workspace - powered by the ultimate control platform.

Take advantage of state-of-the-art features like customizable OLED Target keys for your Direct Selects, a built-in soft keypad, book lights for your paperwork, drawers for your accessories, dual axis folding displays, and more encoders than ever before on an Eos desk. With three sizes of consoles to choose from and reconfigurable inputs and outputs, you can tailor your Apex experience to the needs of your venue or production.

Big shows. Small footprint.

The ultimate hands-on programming experience.

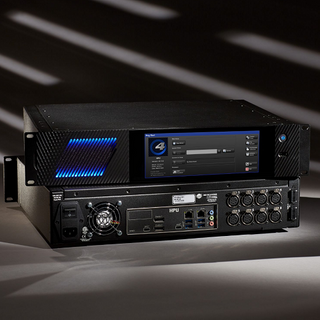

The power of Apex in your equipment rack.

• 24K output
• Haptic multitouch display on the front panel enables configuration without the need for accessories

Customize your system

Top-level control needs a top-level connection. Apex consoles include six Ethernet ports (four standard etherCON Gigabit ports, and two 10-Gigabit SFP+ ports) which can connect to copper or fiber runs - right at the back of the desk. With these connections, you can take advantage of the latest high-speed infrastructure to run your lighting network, allowing blazing-fast primary and backup communication to all of your show-critical system components.

If you prefer to connect devices directly to your console, the customizable I/O Garage on each Apex console lets you mix and match your outputs on a per-show basis. Simply dock the appropriate gateways in the garage to get a little more DMX output on one show and a little more MIDI on the next.

System-building with Apex doesn't stop there. Back up your lighting network, focus your lights using augmented reality, add extra programming workstations and more with the Eos Family's expansive universe of system options.

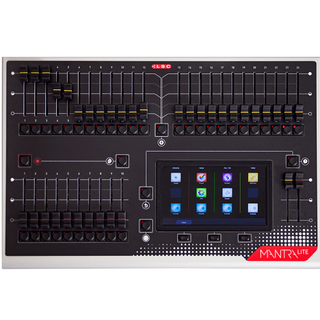

The Mantra Lite is an award-winning lighting controller for LEDs, moving lights and conventional dimming. Expandable by adding up to two wings, the Mantra Lite is ideally suited for all types of operators in small theatres, places of worship and entertainment venues.
Mantra Lite, and the Mantra Expansion Wings combine the ease of use of a fader based console, with the power of a touch screen graphical user interface. The software shows the user what to do next, ensuring a very easy learning curve for even the novice user.

Power users are also catered for with many advanced features and the ability to record up to 1,000 memories, across 100 cue lists or chases, and playback 10 simultaneously on the console. Each optional wing increases this by 10 playbacks and 100 cue lists. The DMX output is also available as sACN and/or Art-Net via an RJ45 connector on the console.
Of 24 individual fixtures are provided on the Mantra Lite console, each with a physical fader for intensity. The optional expansion wings each provide an additional 12 fixtures, 10 playbacks and a universe of DMX. Connect up to two wings for a total of 48 fixtures, 30 playbacks and 3 universes of DMX.

A large 18cm colour capacitive touch screen provides a powerful user interface, similar in operation to modern smartphones, giving the user the feeling of familiarity and comfort.
Colours (e.g. RGB, RGBAWUV, CMY and colour wheels) are all controlled via a simple colour picker app, Pan and Tilt via a trackpad and other parameters by virtual sliders.
This allows the Mantra to control not just colour, but all the parameters of modern moving lights.
The unique Animate feature provides a simple and intuitive way to quickly create chases and patterns in a single cue – usually within just a few seconds. This feature alone makes the Mantra the most powerful in its class. An Undo command system, context-sensitive Help, and Live time controls ensures that Mantra will remain the market leader for years to come.

Fixture library updates and new software features are easily installed via USB stick and show files can be backed up to USB stick for off-site storage.

• Easy to use App based user interface.
• Large 18cm capacitive multi-touch colour LCD screen.
• Animate feature – Create complex FX quickly – the easiest way to add dynamic movement and colour to your stage.
• Fans for colour and position.
• Built-in fixture template creator with unique live learning control.
• Multiple Undo command system
• Onboard Help menu.
• Optional USB powered wing provides control of 12 more fixtures, 10 additional playbacks and an extra DMX output.
• Connect two wings for a total of 48 fixtures, 30 playbacks and 3 universes of DMX.
• Two models – One with built-in auto-ranging power supply (CE certified), the other with an external power pack (UL listed).
• Internal auto voltage mains power supply with IEC connector (not applicable to UL version).
• Mini UPS for auto show save on power loss.
• DMX out via 5pin XLR and ethernet (Art-Net and/or sACN).
• Perfect for smaller venues including schools and churches.
• Built-in carry handle.
• Rugged all-metal construction.
• Made in Australia with a full 2-year warranty

The MiniWing 4 provides ten additional non-motorized faders for use with any Hog 4 console or Hog 4 PC. It uses the same high-quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable.

Product Features

• USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
• 10 playback masters
• Master column and paging button
• USB 2.0 ports: 2 rear
• Kensington security slot
• One dimmable white desk light included
• Dust cover included
• Custom road case available
• Compliance: ETL, CETL, CE

Electrical

• External PSU input: 100-250VAC, 50/60Hz, max 25W
• External PSU output: 12VDC 2.5A/25W

Weights and Dimensions

• Width: 308mm
• Depth: 315mm
• Height: 67mm
• Weight: 2.1kg

Whether moving between venues or working on a show file in transit between gigs, a programmer is always on the go.

The Eos software is always free to download and use on Mac and PC, giving you access to all the latest features wherever you go - including Magic Sheets, effects, and the powerful 3D programming and visualization tools of the Augment3d platform.

When offline programming isn't enough, there's ETCnomad. This USB software key unlocks your laptop as a full-fledged part of your Eos system complete with networking and output capability.

• Operates in stand-alone, primary, backup and client environments (when connected as a client, output capacity is determined by the system to which it is connected)
• 1,024 Outputs
• 32,768 Control Channels (mapped to any number from 1 to 99,999)
• 100,000 Cues
• 999 Cue Lists
• 999 Submasters
• 100 Fader Pages
• 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
• 10,000 Presets (all palette)
• 10,000 Groups
• 10,000 Effects (relative, absolute or step)
• 99,999 Macros
• 10,000 Snapshots
• 10,000 Curves
• 10,000 Color Paths
• 99 discrete users
• Partitioned control
• Show import from Obsession, Express, ExpressioN, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
• Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
• Magic Sheets suite for customized user programming and displays
• Virtual Media Server function for pixel-mapping effects, images, and animations

Whether moving between venues or working on a show file in transit between gigs, a programmer is always on the go.

The Eos software is always free to download and use on Mac and PC, giving you access to all the latest features wherever you go - including Magic Sheets, effects, and the powerful 3D programming and visualization tools of the Augment3d platform.

When offline programming isn't enough, there's ETCnomad. This USB software key unlocks your laptop as a full-fledged part of your Eos system complete with networking and output capability.

• Operates in stand-alone, primary, backup and client environments (when connected as a client, output capacity is determined by the system to which it is connected)
• 6,144 Outputs
• 32,768 Control Channels (mapped to any number from 1 to 99,999)
• 100,000 Cues
• 999 Cue Lists
• 999 Submasters
• 100 Fader Pages
• 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
• 10,000 Presets (all palette)
• 10,000 Groups
• 10,000 Effects (relative, absolute or step)
• 99,999 Macros
• 10,000 Snapshots
• 10,000 Curves
• 10,000 Color Paths
• 99 discrete users
• Partitioned control
• Show import from Obsession, Express, ExpressioN, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
• Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
• Magic Sheets suite for customized user programming and displays
• Virtual Media Server function for pixel-mapping effects, images, and animations

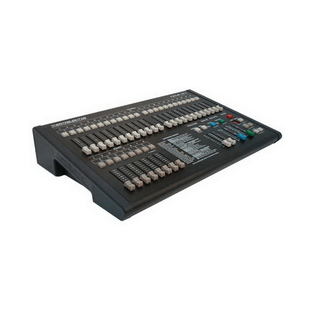

The Theatrelight Nova is a versatile and easy to use control panel for smaller venues. The Nova can be used as a manual two preset console using the Park function, or as a memory desk featuring recorded scenes and chases. The Nova is also fitted with a Sound to Light function for clubs or display lighting. Applications include dance parties, clubs and discos, and smaller theatres. Supplied with operation manual, dust cover, and SD card.

• 10 pages of 8 submasters in the 24 channel model
• 4 pages of 20 submasters in the 36 channel model
• Each submaster can record a scene, a chase or an entire show
• Record beat function for synchronising to live music
• Sound to Light operation
• SD Card back up of all cue data

The Theatrelight Nova is a versatile and easy to use control panel for smaller venues. The Nova can be used as a manual two preset console using the Park function, or as a memory desk featuring recorded scenes and chases. The Nova is also fitted with a Sound to Light function for clubs or display lighting. Applications include dance parties, clubs and discos, and smaller theatres. Supplied with operation manual, dust cover, and SD card.

• 10 pages of 8 submasters in the 24 channel model
• 4 pages of 20 submasters in the 36 channel model
• Each submaster can record a scene, a chase or an entire show
• Record beat function for synchronising to live music
• Sound to Light operation
• SD Card back up of all cue data

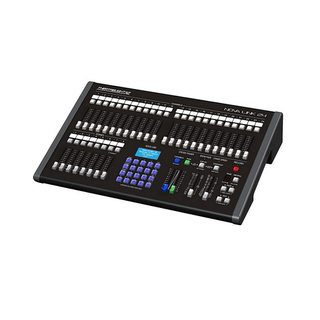

The NovaLink 24 and 36 control panels feature a Soft-Patch added to Theatrelight's original Nova 24 and 36 desks. The soft-patch allows driving the large number of DMX channels demanded by LED luminaires. The softpatch of the 24 channel model can drive up to 512 DMX channels at different levels- up to 1024 DMX channels for the Novalink 36. The NovaLink can record scenes and chases with variable fade times and chase speeds, and complete shows. Easy to learn and operate, the desk is an ideal control panel for Schools, Theatres, and Drama and TV studios. The Bass and Chase features also make the NovaLink ideal for Events and Club lighting.

• 10 pages of 8 submasters in the 24 channel model
• 4 pages of 20 submasters in the 36 channel model
• 24 channel version patches to 512 dimmers
• 36 channle version patches to 1024 dimmers
• Each submaster can record a scene, a chase or an entire show
• Record beat function for synchronising to live music
• Sound to Light operation
• SD Card backup of all cue data

The NovaLink 24 and 36 control panels feature a Soft-Patch added to Theatrelight's original Nova 24 and 36 desks. The soft-patch allows driving the large number of DMX channels demanded by LED luminaires. The softpatch of the 24 channel model can drive up to 512 DMX channels at different levels- up to 1024 DMX channels for the Novalink 36. The NovaLink can record scenes and chases with variable fade times and chase speeds, and complete shows. Easy to learn and operate, the desk is an ideal control panel for Schools, Theatres, and Drama and TV studios. The Bass and Chase features also make the NovaLink ideal for Events and Club lighting.

• 10 pages of 8 submasters in the 24 channel model
• 4 pages of 20 submasters in the 36 channel model
• 24 channel version patches to 512 dimmers
• 36 channle version patches to 1024 dimmers
• Each submaster can record a scene, a chase or an entire show
• Record beat function for synchronising to live music
• Sound to Light operation
• SD Card backup of all cue data

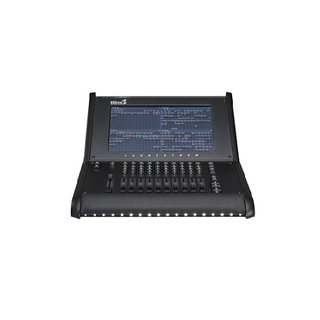

The Playback Wing 4 provides ten additional faders plus one Grand Master, all motorized. Hog 4 consoles and Hog 4 PC software benefit from the additional playback hardware the Playback Wing offers.

It uses the same high-quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable. A 15.6” touchscreen is integrated in the wing, allowing you to expand your console using one integrated unit.

Product Features

• USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
• Internal 15.6-inch 10-point touchscreen
• 10 motorized playback faders
• Motorized Grand Master
• Master Choose column and paging buttons
• Super Widget Expansion slot provides four DMX outputs from Hog 4 PC
• Integrated dimmable white lapwork light
• One dimmable white/blue desk light included
• USB 2.0 ports: 2 rear
• Dust cover included
• Custom road case available
• Compliance: ETL, CETL, CE

Electrical

• Mains power: 100-250VAC, 50/60Hz, max 100W
• Mains connector: IEC320 C13
• Fuse: 1x 5x20mm 5AT fuse

Weights and Dimensions

• Width: 512mm
• Depth: 610mm
• Height: 244mm
• Weight: 12.5kg

The Playback Wing 4 provides ten additional faders plus one Grand Master, all motorized. Hog 4 consoles and Hog 4 PC software benefit from the additional playback hardware the Playback Wing offers.

It uses the same high-quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable. A 15.6” touchscreen is integrated in the wing, allowing you to expand your console using one integrated unit.

Product Features

• USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
• Internal 15.6-inch 10-point touchscreen
• 10 motorized playback faders
• Motorized Grand Master
• Master Choose column and paging buttons
• Super Widget Expansion slot provides four DMX outputs from Hog 4 PC
• Integrated dimmable white lapwork light
• One dimmable white/blue desk light included
• USB 2.0 ports: 2 rear
• Dust cover included
• Custom road case available
• Compliance: ETL, CETL, CE

Electrical

• Mains power: 100-250VAC, 50/60Hz, max 100W
• Mains connector: IEC320 C13
• Fuse: 1x 5x20mm 5AT fuse

Weights and Dimensions

• Width: 512mm
• Depth: 610mm
• Height: 244mm
• Weight: 12.5kg

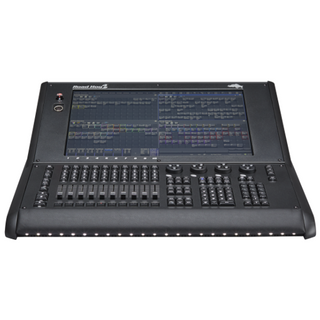

The most cost effective Hog ever, the Road Hog 4-21 strikes the perfect balance between performance and economy. The programming interface remains familiar, and the ergonomics of the console’s compact chassis are unparalleled, while the shared Hog software environment lets the user transition across the whole range without sacrificing workflow.

Programmers will love the 21.5”, high-resolution display providing ample space for customized screen layouts with one additional video output. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are provided for Art-Net, sACN and console networking. This Hog packs an enormous punch!

Road Hog 4-21 is the go-to desk for venues and rental companies around the globe. It’s easy to see why — the size, weight, and generous programming surface ticks all the right boxes.

Might we suggest that Road Hog 4-21 pairs beautifully with a couple of external touchscreens and a MiniWing 4?

With eight universes of onboard processing, four local DMX outputs, two external touchscreen connections, USB and HogNet / FixtureNet ports, you are ready to rock. SMPTE, MIDI, and more DMX are only a Widget away!

Product Features

• Robust Hog 4 OS operating system
• Hog-Net connector
• Fixture-Net connector
• Unlimited simultaneous crossfades
• Internal solid-state hard drive
• One internal 21.5-inch 10-point touchscreen
• Two DisplayPort monitors/touchscreens supported
• 10 manual playback faders
• Four expanded-wheelset encoders
• 12 user-assignable function keys
• Kensington security slot
• Integrated dimmable white lapwork light
• Integrated dimmable blue vent light
• One dimmable white/blue desk light included
• Two USB flash drives for show storage and console recovery included
• Dust cover included
• Custom road case available
• Compliance: ETL, CETL, CE
• Capture Lighting Design Software, Duet

Weights and Dimensions

• Width: 678mm
• Depth: 701mm
• Height: 206mm
• Weight: 17.5kg

Connectivity

• Local output processing: 8x universes (4096 output channels) expandable total outputs using DMX Processors (HPU or DP8K)
• Local DMX-512 outputs: 4x Neutrik 5-pin XLR
• Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
• Solid-state hard drive
• Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DP8Ks
• MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
• Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
• Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/sACN, unrestricted by local output capacity)
• OSC (Open Sound Control) for remote control and integration
• Supports USB playback and expansion Wings
• 9 USB ports for flash drives, pointing devices, keyboards
• USB 2.0 ports: 4 rear
• USB 3.0 ports: 4 rear, 1 front

Electrical

• Mains power: 100-250VAC, 50/60Hz, max 80W
• Mains connector: IEC320 C13
• Fuse: 1x 5x20mm 5AT fuse

The most cost effective Hog ever, the Road Hog 4-21 strikes the perfect balance between performance and economy. The programming interface remains familiar, and the ergonomics of the consoles compact chassis are unparalleled, while the shared Hog software environment lets the user transition across the whole range without sacrificing workflow.

Programmers will love the 21.5", high-resolution display providing ample space for customized screen layouts with one additional video output. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are provided for Art-Net, sACN and console networking. This Hog packs an enormous punch!

Road Hog 4-21 is the go-to desk for venues and rental companies around the globe. It’s easy to see why — the size, weight, and generous programming surface ticks all the right boxes.

Might we suggest that Road Hog 4-21 pairs beautifully with a couple of external touchscreens and a MiniWing 4?

With eight universes of onboard processing, four local DMX outputs, two external touchscreen connections, USB and HogNet / FixtureNet ports, you are ready to rock. SMPTE, MIDI, and more DMX are only a Widget away!

Product Features

• Robust Hog 4 OS operating system
• Hog-Net connector
• Fixture-Net connector
• Unlimited simultaneous crossfades
• Internal solid-state hard drive
• One internal 21.5-inch 10-point touchscreen
• Two DisplayPort monitors/touchscreens supported
• 10 manual playback faders
• Four expanded-wheelset encoders
• 12 user-assignable function keys
• Kensington security slot
• Integrated dimmable white lapwork light
• Integrated dimmable blue vent light
• One dimmable white/blue desk light included
• Two USB flash drives for show storage and console recovery included
• Dust cover included
• Custom road case available
• Compliance: ETL, CETL, CE

Weights and Dimensions

• Width: 678mm
• Depth: 701mm
• Height: 206mm
• Weight: 17.5kg

Connectivity

• Local output processing: 8x universes (4096 output channels) expandable total outputs using DMX Processors (HPU or DP8K)
• Local DMX-512 outputs: 4x Neutrik 5-pin XLR
• Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
• Solid-state hard drive
• Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DP8Ks
• MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
• Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
• Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/sACN, unrestricted by local output capacity)
• OSC (Open Sound Control) for remote control and integration
• Supports USB playback and expansion Wings
• 9 USB ports for flash drives, pointing devices, keyboards
• USB 2.0 ports: 4 rear
• USB 3.0 ports: 4 rear, 1 front

Electrical

• Mains power: 100-250VAC, 50/60Hz, max 80W
• Mains connector: IEC320 C13
• Fuse: 1x 5x20mm 5AT fuse
