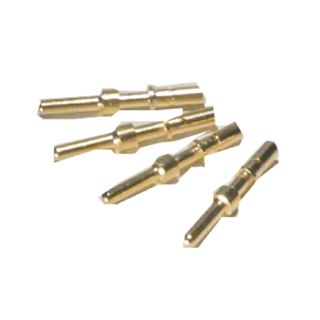

  • 19 Pin Crimp Female Contact
    19 Pin Crimp Female Contact
    Spare Female Crimp
    Code Image Product Name Attributes Price
    KU-PLS-5219CPF
    19 Pin Crimp Female Contact
    19 Pin Crimp Female Contact
  • 19 Pin Crimp Female Earth Contact
    19 Pin Crimp Female Earth Contact
    Spare Female Crimp
    Code Image Product Name Attributes Price
    KU-PLS-5219CPFE
    19 Pin Crimp Female Earth Contact
    19 Pin Crimp Female Earth Contact
  • 19 Pin Crimp Male Contact
    19 Pin Crimp Male Contact
    Spare Male Crimp
    Code Image Product Name Attributes Price
    KU-PLS-5219CPM
    19 Pin Crimp Male Contact
    19 Pin Crimp Male Contact

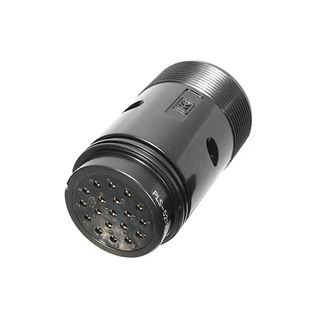

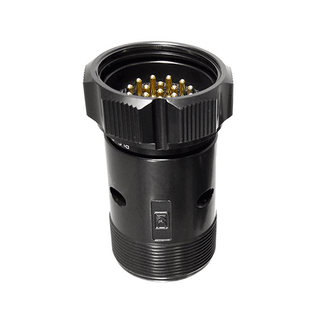

  • 19 Pin Crimp Style Line Male with Locking Ring
    19 Pin Crimp Style Line Male with Locking Ring
    19-Pin Crimp Style Line Male with Locking Ring | LightsUp

    19 Pin Crimp Style Line Male with Locking Ring

    KU-PLS-5219CLM

    Features
    • Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
    • Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
    • Non-conductive first grade Bakelite (Neoprene for crimp type) provides greatest insulation.
    • Integral-compressed strain relief handles wide range of cable sizes.
    • Extended ground contact at female side ensures "mate first, break last" for safety operation.
    • Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
    • Requires PG29 Gland (Not Included)
    • Crimp contacts are available for purchase separately.
    • UL / cUL listed.

    Specification

    • Rated Current: AC 20A 250V
    • Operating Limit Voltage: AC 400V
    • Insulation Resistance:> 2000M Ohms
    • Contact Resistance: < 3M Ohms
    • Rated Voltage: AC 1500V
    • Terminal Wear: 5000+ connection
    • Hipot Test: 1800 VAC / Min.
    • Operating Temperature: -40Deg to 85Deg
    Code Image Product Name Attributes Price
    KU-PLS-5219CLM
    19 Pin Crimp Style Line Male with Locking Ring
    19 Pin Crimp Style Line Male with Locking Ring

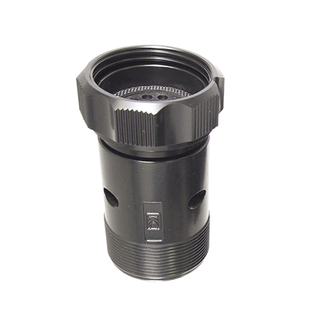

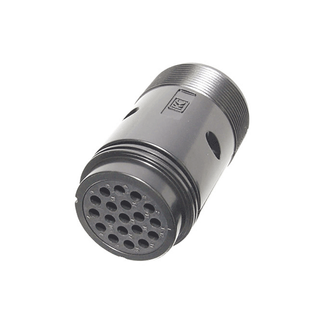

  • 19 Pin Crimp Type Line Female
    19 Pin Crimp Type Line Female
    19-Pin Crimp Type Line Female | LightsUp

    19 Pin Crimp Type Line Female

    KU-PLS-5219CLF

    Features
    • Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
    • Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
    • Non-conductive first grade Bakelite (Neoprene for crimp type) provides greatest insulation.
    • Integral-compressed strain relief handles wide range of cable sizes.
    • Extended ground contact at female side ensures "mate first, break last" for safety operation.
    • Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
    • Requires PG29 Gland (Not Included)
    • Crimp contacts are available for purchase separately.
    • UL / cUL listed.

    Specification

    • Rated Current: AC 20A 250V
    • Operating Limit Voltage: AC 400V
    • Insulation Resistance: > 2000M Ohms
    • Contact Resistance: < 3M Ohms
    • Rated Voltage: AC 1500V
    • Terminal Wear: 5000+ connection
    • Hipot Test: 1800 VAC / Min.
    • Operating Temperature: -40Deg to 85Deg
    Code Image Product Name Attributes Price
    KU-PLS-5219CLF
    19 Pin Crimp Type Line Female
    19 Pin Crimp Type Line Female

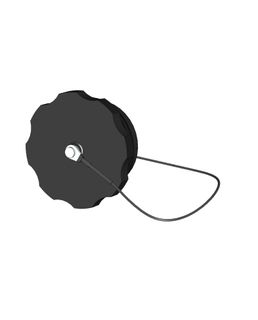

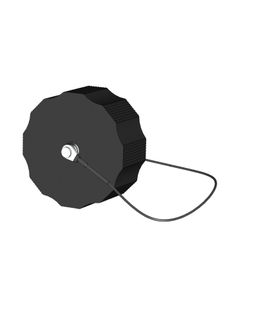

  • 19 Pin Female Dust Cover
    19 Pin Female Dust Cover
    Code Image Product Name Attributes Price
    KU-PLS-DL-F
    19 Pin Female Dust Cover
    19 Pin Female Dust Cover
    POA

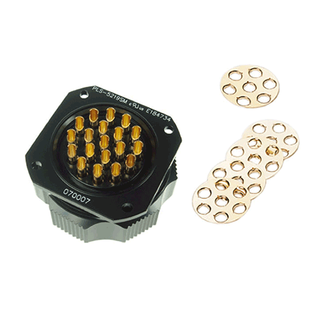

  • 19 Pin Ground Disk
    19 Pin Ground Disk
    Code Image Product Name Attributes Price
    KU-PLS-5219GDSK
    19 Pin Ground Disk
    19 Pin Ground Disk
  • 19 Pin Male Dust Cover
    19 Pin Male Dust Cover
    Code Image Product Name Attributes Price
    KU-PLS-DL-M
    19 Pin Male Dust Cover
    19 Pin Male Dust Cover

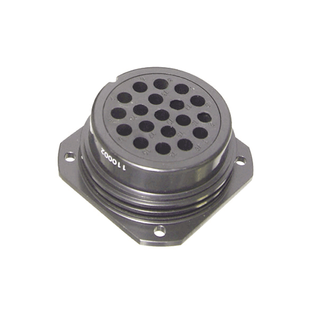

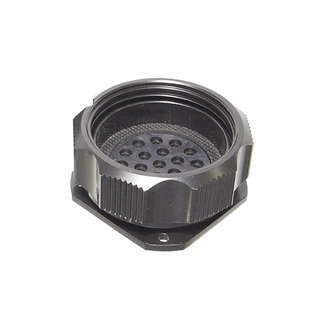

  • 19 Pin Panel Mount Female Crimp
    19 Pin Panel Mount Female Crimp

    19 Pin Panel Mount Female Crimp

    KU-PLS-5219CSF

    Features
    • Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
    • Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
    • Non-conductive first grade Bakelite (Neoprene for crimp type) provides greatest insulation.
    • Integral-compressed strain relief handles wide range of cable sizes.
    • Extended ground contact at female side ensures "mate first, break last" for safety operation.
    • Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
    • Requires PG29 Gland (Not Included)
    • Crimp contacts are available for purchase separately.
    • UL / cUL listed.

    Specification

    • Rated Current: AC 20A 250V
    • Operating Limit Voltage: AC 400V
    • Insulation Resistance:> 2000M Ohms
    • Contact Resistance: < 3M Ohms
    • Rated Voltage: AC 1500V
    • Terminal Wear: 5000+ connection
    • Hipot Test: 1800 VAC / Min.
    • Operating Temperature: -40Degto 85Deg
    Code Image Product Name Attributes Price
    KU-PLS-5219CSF
    19 Pin Panel Mount Female Crimp
    19 Pin Panel Mount Female Crimp

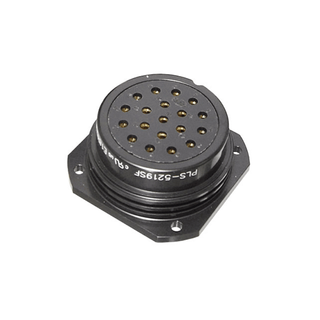

  • 19 Pin Panel Mount Female Solder
    19 Pin Panel Mount Female Solder
    19-Pin Panel Mount Female Solder | LightsUp

    19 Pin Panel Mount Female Solder

    KU-PLS-5219SF

    Features
    • Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
    • Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
    • Non-conductive first grade Bakelite provides greatest insulation.
    • Integral-compressed strain relief handles wide range of cable sizes.
    • Extended ground contact at female side ensures "mate first, break last" for safety operation.
    • Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
    • Requires PG29 Gland (Not Included)
    • Crimp contacts are available for purchase separately.
    • UL / cUL listed.

    Specification

    • Rated Current: AC 20A 250V
    • Operating Limit Voltage: AC 400V
    • Insulation Resistance: > 2000M Ohms
    • Contact Resistance: < 3M Ohms
    • Rated Voltage: AC 1500V
    • Terminal Wear: 5000+ connection
    • Hipot Test: 1800 VAC / Min.
    • Operating Temperature: -40Deg to 85Deg
    Code Image Product Name Attributes Price
    KU-PLS-5219SF
    19 Pin Panel Mount Female Solder
    19 Pin Panel Mount Female Solder

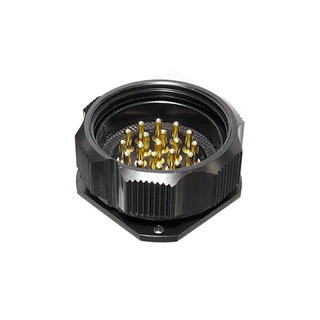

  • 19 Pin Panel Mount Male with Lock Ring Crimp
    19 Pin Panel Mount Male with Lock Ring Crimp
    19-Pin Panel Mount Male with Lock Ring Crimp | LightsUp

    19 Pin Panel Mount Male with Lock Ring Crimp

    KU-PLS-5219CSM

    Features
    • Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
    • Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
    • Non-conductive first grade Bakelite (Neoprene for crimp type) provides greatest insulation.
    • Integral-compressed strain relief handles wide range of cable sizes.
    • Extended ground contact at female side ensures "mate first, break last" for safety operation.
    • Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
    • Requires PG29 Gland (Not Included)
    • Crimp contacts are available for purchase separately.
    • UL / cUL listed.

    Specification

    • Rated Current: AC 20A 250V
    • Operating Limit Voltage: AC 400V
    • Insulation Resistance: > 2000M Ohms
    • Contact Resistance: < 3M Ohms
    • Rated Voltage: AC 1500V
    • Terminal Wear: 5000+ connection
    • Hipot Test: 1800 VAC / Min.
    • Operating Temperature: -40Deg to 85Deg
Code Image Product Name Attributes Price
KU-PLS-5219CSM
19 Pin Panel Mount Male with Lock Ring Crimp
19 Pin Panel Mount Male with Lock Ring Crimp
  • 19 Pin Panel Mount Male with Lock Ring Solder
    19 Pin Panel Mount Male with Lock Ring Solder
    19-Pin Panel Mount Male with Lock Ring Solder | LightsUp

    19 Pin Panel Mount Male with Lock Ring Solder

    KU-PLS-5219SM

    Features
    • Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
    • Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
    • Non-conductive first grade Bakelite provides greatest insulation.
    • Integral-compressed strain relief handles wide range of cable sizes.
    • Extended ground contact at female side ensures "mate first, break last" for safety operation.
    • Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
    • Requires PG29 Gland (Not Included)
    • Crimp contacts are available for purchase separately.
    • UL / cUL listed.

    Specification

    • Rated Current: AC 20A 250V
    • Operating Limit Voltage: AC 400V
    • Insulation Resistance: > 2000M Ohms
    • Contact Resistance: < 3M Ohms
    • Rated Voltage: AC 1500V
    • Terminal Wear: 5000+ connection
    • Hipot Test: 1800 VAC / Min.
    • Operating Temperature: -40? to 85?
    • Code Image Product Name Attributes Price
    KU-PLS-5219SM
    19 Pin Panel Mount Male with Lock Ring Solder
    19 Pin Panel Mount Male with Lock Ring Solder
  • 19 Pin Solder Line Female
    19 Pin Solder Line Female
    19-Pin Solder Line Female | LightsUp

    19 Pin Solder Line Female

    KU-PLS-5219LF

    Features
    • Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
    • Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
    • Non-conductive first grade Bakelite provides greatest insulation.
    • Integral-compressed strain relief handles wide range of cable sizes.
    • Extended ground contact at female side ensures "mate first, break last" for safety operation.
    • Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
    • Requires PG29 Gland (Not Included)
    • Crimp contacts are available for purchase separately.
    • UL / cUL listed.

    Specification

    • Rated Current: AC 20A 250V
    • Operating Limit Voltage: AC 400V
    • Insulation Resistance: > 2000M Ohms
    • Contact Resistance: < 3M Ohms
    • Rated Voltage: AC 1500V
    • Terminal Wear: 5000+ connection
    • Hipot Test: 1800 VAC / Min.
    • Operating Temperature: -40Deg to 85Deg
    • Code Image Product Name Attributes Price
    KU-PLS-5219LF
    19 Pin Solder Line Female
    19 Pin Solder Line Female
  • 19 Pin Solder Line Male with Locking Ring
    19 Pin Solder Line Male with Locking Ring
    19-Pin Solder Line Male with Locking Ring | LightsUp

    19 Pin Solder Line Male With Locking Ring

    KU-PLS-5219LM

    Features
    • Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
    • Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
    • Non-conductive first grade Bakelite provides greatest insulation.
    • Integral-compressed strain relief handles wide range of cable sizes.
    • Extended ground contact at female side ensures "mate first, break last" for safety operation.
    • Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
    • Requires PG29 Gland (Not Included)
    • Crimp contacts are available for purchase separately.
    • UL / cUL listed.

    Specification

    • Rated Current: AC 20A 250V
    • Operating Limit Voltage: AC 400V
    • Insulation Resistance: > 2000M Ohms
    • Contact Resistance: < 3M Ohms
    • Rated Voltage: AC 1500V
    • Terminal Wear: 5000+ connection
    • Hipot Test: 1800 VAC / Min.
    • Operating Temperature: -40Deg to 85Deg
    • Code Image Product Name Attributes Price
    KU-PLS-5219LM
    19 Pin Solder Line Male with Locking Ring
    19 Pin Solder Line Male with Locking Ring
  • 7 Pin Line Male with Locking Ring
    7 Pin Line Male with Locking Ring
    7-Pin Line Male with Locking Ring | Kupo Power Distribution Cables | LightsUp

    7 Pin Line Male with Locking Ring

    7 Pin Motor Connector

    KU-PLS-4207LM

    Description

    Kupo PLS-4207 multiple connectors are often applied to combine chain hoist power and control cable as one. It makes a safe, compact and quick setup rigging. Two rugged die cast aluminum alloy half shells in black non-conductive finish for easy cable assembly. Hard gold plated contacts in soldering version and fully compatible with Socapax SL37 family. The extended female ground contacts allow making first / breaking last.

    Specification
    Electrical Characteristics
    Rated Current/voltage 6 x 25A + 1 x 50A 250V
    Operation Limit Voltage (Ac. V. Rms) 250
    Withstanding Voltage (Ac. V. Rms) 2000
    Insulation Resistance (M Ohm Min) At Dc 500V 2000
    Contact Resistance (M Ohm Min) At Dc 1a 3
    Number Of Contacts: 7 Contacts 6 x 16AWG + 1 x 12AWG

    PIN-OUT FOR 7PIN MOTOR CONNECTOR:
    PINOUT
    1 = L1
    2 = L2
    3 = L3
    4 = MOTOR UP
    5 = GROUND
    6 = MOTOR COMMON
    7 = MOTOR DOWN
    - Operating Temperature: -40 + 85deg C
    - Hipot Test: 1800 Vac / min
    - Terminal Wear: 5000 + Connections

    Important Note:
    There is no industry standard wiring for chain hoist using 7pin connector. Since mixing gear from different suppliers is a common practice, you should always double check the equipment and not assume the wiring is correct or has been changed. 7-pin connectors carry power and control together and there is a potential for harming the equipment or the operator if the wiring configuration is not confirmed.

    Tags

    MCA-1904P-5 Cable Sets, Kupo Cable Set, Power Distribution Cables, Multi-Pin Cable Set, 19 Pin Cable, Soca 19 Pin Connector, CEE 3P+E Connector, Stage Equipment Cable, Entertainment Cable, Rigging Cable Solutions, Power Control Cables, Low Voltage Cable Set, Motorized Stage Cables, Theatre Equipment Cable, Industrial Stage Cable, Entertainment Industry Power Distribution.

    • Code Image Product Name Attributes Price
    KU-PLS-4207LM
    7 Pin Line Male with Locking Ring
    7 Pin Line Male with Locking Ring

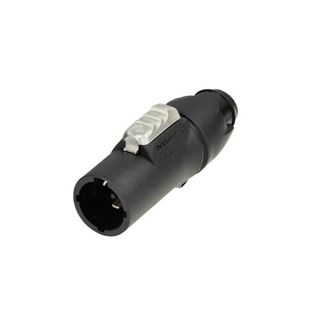

  • Neutrik Powercon True1, Male Cable Connector, 16A, IP65, BLK
    Neutrik Powercon True1, Male Cable Connector, 16A, IP65, BLK
    Code Image Product Name Attributes Price
    NEU-NAC3MX-W-TOP
    Neutrik Powercon True1, Male Cable Connector, 16A, IP65, BLK
    Neutrik Powercon True1, Male Cable Connector, 16A, IP65, BLK

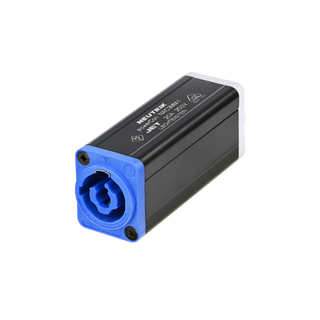

  • Neutrik PowerCON Coupler for Linking Cables
    Neutrik PowerCON Coupler for Linking Cables
    Code Image Product Name Attributes Price
    NEU-NAC3MM-1
    Neutrik PowerCON Coupler for Linking Cables
    Neutrik PowerCON Coupler for Linking Cables

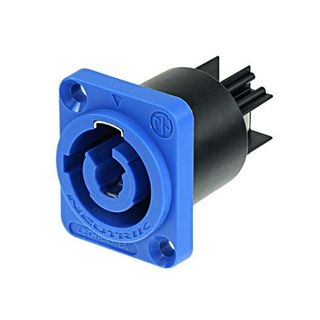

  • Neutrik PowerCON Mains Input Chassis Connector 20 Amp Blue
    Neutrik PowerCON Mains Input Chassis Connector 20 Amp Blue
    Code Image Product Name Attributes Price
    NEU-NAC3MPA-1
    Neutrik PowerCON Mains Input Chassis Connector 20 Amp Blue
    Neutrik PowerCON Mains Input Chassis Connector 20 Amp Blue
  • Neutrik PowerCON Mains Output Cable Connector 20 Amp (Grey)
    Neutrik PowerCON Mains Output Cable Connector 20 Amp (Grey)
    Code Image Product Name Attributes Price
    NEU-NAC3FCB
    Neutrik PowerCON Mains Output Cable Connector 20 Amp (Grey)
    Neutrik PowerCON Mains Output Cable Connector 20 Amp (Grey)
    POA

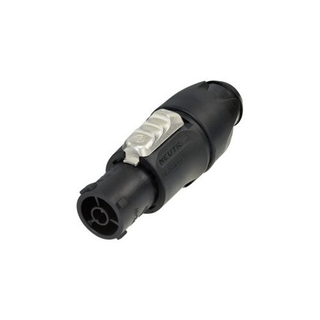

  • Neutrik Powercon True1 Top Female Cable Connector, 16A, IP65, BLK
    Neutrik Powercon True1 Top Female Cable Connector, 16A, IP65, BLK
    Code Image Product Name Attributes Price
    NEU-NAC3FX-W-TOP
    Neutrik Powercon True1 Top Female Cable Connector, 16A, IP65, BLK
    Neutrik Powercon True1 Top Female Cable Connector, 16A, IP65, BLK

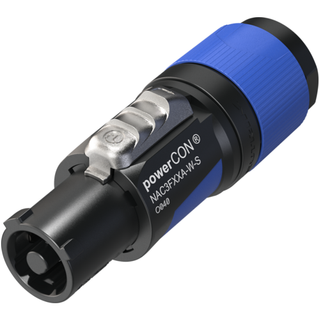

  • PowerCON Cable Connector BLUE
    PowerCON Cable Connector BLUE
    Code Image Product Name Attributes Price
    NEU-NAC3FXXA-W-S
    PowerCON Cable Connector BLUE
    PowerCON Cable Connector BLUE

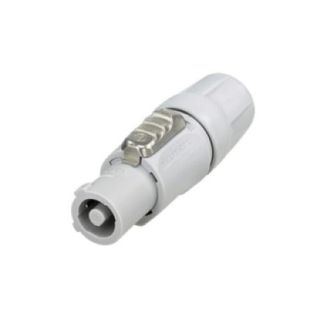

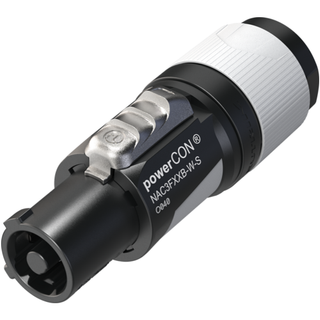

  • PowerCON Cable Connector Grey
    PowerCON Cable Connector Grey
    Code Image Product Name Attributes Price
    NEU-NAC3FXXB-W-S
    PowerCON Cable Connector Grey
    PowerCON Cable Connector Grey

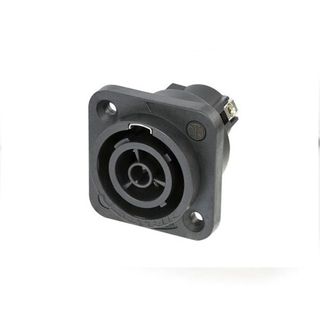

  • TRUE1 TOP Appliance Outlet Connector 1/4" Screw Terminals IP65
    TRUE1 TOP Appliance Outlet Connector 1/4" Screw Terminals IP65
    Code Image Product Name Attributes Price
    NEU-NAC3FPX-STTOP
    TRUE1 TOP Appliance Outlet Connector 1/4" Screw Terminals IP65
    TRUE1 TOP Appliance Outlet Connector 1/4" Screw Terminals IP65
    POA

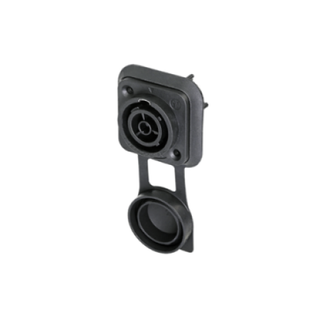

  • TRUE1 TOP Appliance Outlet Connector, IP65
    TRUE1 TOP Appliance Outlet Connector, IP65
    Code Image Product Name Attributes Price
    NEU-NAC3FPX-TOP
    TRUE1 TOP Appliance Outlet Connector, IP65
    TRUE1 TOP Appliance Outlet Connector, IP65
