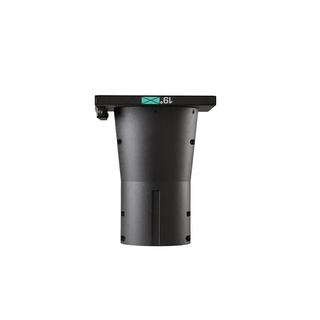

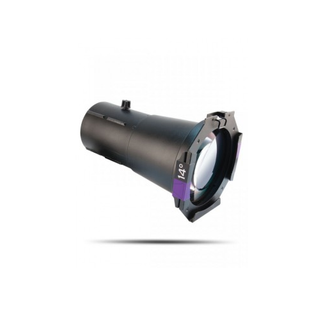

Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures as well as my other standard ERS-style fixtures. Lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigours of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.

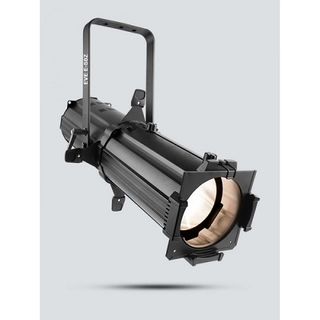

Small size. Small price tag. Big performance.

FEATURES

• LED Ellipsoidal shines a hard-edged, warm white spot in any direction
• Easily highlight areas by altering the projected beam with framing shutters
• Flexibility to project from any distance using the manual zoom
• Includes holders for glass and steel gobos and a gel frame
• Save time running extension cords by power linking multiple units
• Eliminate the need for DMX control with standalone operation

SPECIFICATIONS

• DMX Channels: 1 or 3
• DMX Connectors: 3-pin XLR
• Light Source: 1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 30 Hz
• Illuminance: (14 deg): 15,100 lux @ 2 m
  (30 deg): 3,800 lux @ 2 m
• Power Linking: 9 units @ 120 V; 16 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 106 W, 0.9 A @ 120 V, 60 Hz
  103 W, 0.5 A @ 230 V, 50 Hz
• Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness)
• Zoom Angle: (manual): 14 deg; to 30 deg;
• Weight: 5.7 kg

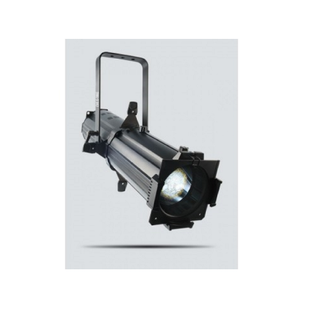

FEATURES

• LED Ellipsoidal shines a hard-edged, warm white spot in any direction
• Easily highlight areas by altering the projected beam with framing shutters
• Flexibility to project from any distance using the manual zoom
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Flicker-free operation suitable for on-camera use
• Includes holders for glass and steel gobos and a gel frame
• Save time running extension cords by power linking multiple units
• Eliminate the need for DMX control with standalone operation
• Available in black or white

SPECIFICATIONS

• DMX Channels:1 or 3
• DMX Connectors:3-pin XLR
• Light Source:1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
• Strobe Rate:0 to 29 Hz
• PWM Frequency:1.2 kHz
• Illuminance:(20deg7,910 lux @ 2 m
  (39 deg;): 2,710 lux @ 2 m
• Power Linking:16 units @ 120 V; 26 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 59 W, 0.5 A @ 120 V, 60 Hz
  63 W, 0.3 A @ 230 V, 50 Hz
• Gobo Size: D (53.3 mm outside, 43 mm image, 2mm max thickness)
• Zoom Angle:(manual): 20 deg; to 39
• Weight: 4.2 kg
• Size: 480 x 157 x 381 mm
• Approvals:CE, MET
• Colour Temperature:3500 K
• Gel Frame Size:5.5 in
• Optional Controllers:D-Fi USB
• CRI:81

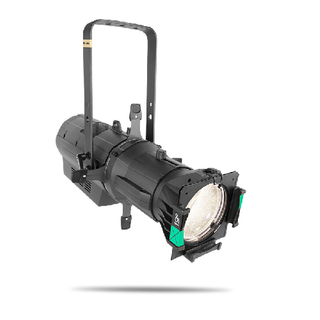

Ovation E-160WW is an energy saving wonder with an output that rivals a tungsten 575 W light source, yet draws only 100 W of power. Dimming is extremely smooth, down to the very bottom of the curve. This virtually silent ellipsoidal projects a flat and even field of light for superior gobo projection. Control options include selectable PWM, RDM, and onboard dimming curve selections.

• Warm white ERS style fixture with output similar to a tungsten 575 W source

• Draws less than 100 W of power, a true electrical bill reducing fixture

• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme

• Flat, even field of light for superior gobo projection

• RDM (Remote Device Management) for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Virtually silent operation for use in studio and theater applications

OPTICAL

• Light Source: 1 LED (WW) 86 W, (2.3 A), 3031 K, 50,000 hours life expectancy
• Color Temperature (at full): 3031 K
• CRI: 90

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: 0 to 29 Hz
• Color Temperature Presets: Yes
• Dim Curve: 4
• Dim Modes: 4

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1, 2, 3, 6)

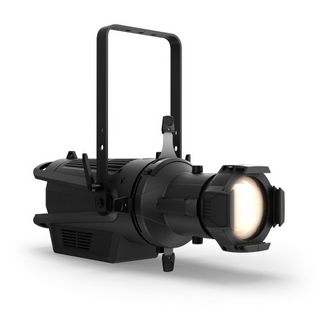

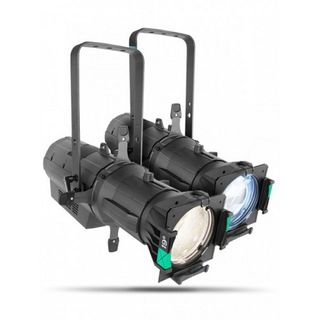

Ovation E-260WW is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

FEATURES

• Warm or cool white ERS style fixture with output exceeding a tungsten 750w source
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

SPECIFICATIONS

OPTICAL

• Light Source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 198 W, (3.5 A), 5452 K, 50,000 hours life expectancy
• Color Temperature (at full): (WW) 3149 K; (CW) 5452 KCRI: (WW) 91; (CW) 90

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik power
• CONPower Input: Neutrik power
• CONPower Output: Neutrik power
• CONData Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: (WW) DMX; (CW) DMX, RDM
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1, 2, 3, 6)

Quality is the driving force behind ETC's LED product development. Countless hours have gone into creating tools worthy of the most professional applications, and the Source Four LED Series 2 ellipsoidal luminaire is the result of that dedication. With the brightest output and the boldest rendering of the colours you use most, the Source Four LED Series 2 introduces a whole new level of LED ellipsoidal lighting fixtures that can be used anywhere.

We put a twist of lime in the luminaire and mixed it all up. ETC's x7 Color Systemcombines a balanced recipe of up to seven colours to create evocative colour mixes. The Source Four LED Series 2 Lustr array takes the idea even further, with the addition of a lime-green LED emitter. Lime green increases the luminaire's lumen output in open white and lighter tints to make them brighter and livelier. The lime also enriches colour-rendering by better marrying the red and blue ends of the colour spectrum, for truer-to-life light that fills in the gaps ordinary LEDs leave behind.

We also added more red to the x7 Color System in the Source Four LED Series 2 Lustr array. Working in unison with the lime-green emitter, the extra red means the luminaire can produce ambers, straws and pinks up to three hundred percent as bright as those from the original Source Four LED. The deeper, richer colour from the Source Four LED Series 2 Lustr array will evoke the strongest audience reaction to your sunset, moonlight and dramatic scenes.

Product Features

• Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel.
• Multiple control options, including Direct, RGB, HSIC, and console-free modes
• 15-bit virtual dimming engine for smooth fades and minimal colour shift during dimming
• ETL Listed to UL1573; IP20 rated

Lens Tubes

Introducing XDLT lens tubes that provide the highest output, clarity, and contrast of any lens tube on the market. Use your existing lens tubes, or upgrade to XDLT.

Quality is the driving force behind ETC's LED product development. Countless hours have gone into creating tools worthy of the most professional applications, and the Source Four LED Series 2 ellipsoidal luminaire is the result of that dedication. With the brightest output and the boldest rendering of the colours you use most, the Source Four LED Series 2 introduces a whole new level of LED ellipsoidal lighting fixtures that can be used anywhere.

We put a twist of lime in the luminaire and mixed it all up. ETC's x7 Color Systemcombines a balanced recipe of up to seven colours to create evocative colour mixes. The Source Four LED Series 2 Lustr array takes the idea even further, with the addition of a lime-green LED emitter. Lime green increases the luminaire's lumen output in open white and lighter tints to make them brighter and livelier. The lime also enriches colour-rendering by better marrying the red and blue ends of the colour spectrum, for truer-to-life light that fills in the gaps ordinary LEDs leave behind.

We also added more red to the x7 Color System in the Source Four LED Series 2 Lustr array. Working in unison with the lime-green emitter, the extra red means the luminaire can produce ambers, straws and pinks up to three hundred percent as bright as those from the original Source Four LED. The deeper, richer colour from the Source Four LED Series 2 Lustr array will evoke the strongest audience reaction to your sunset, moonlight and dramatic scenes.

Product Features

• Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel.
• Multiple control options, including Direct, RGB, HSIC, and console-free modes
• 15-bit virtual dimming engine for smooth fades and minimal colour shift during dimming
• ETL Listed to UL1573; IP20 rated

Lens Tubes

Introducing XDLT lens tubes that provide the highest output, clarity, and contrast of any lens tube on the market. Use your existing lens tubes, or upgrade to XDLT.

Over a decade of research comes together for the market that has inspired ETC for over 45 years. The Source Four LED Series 3 brings the brightest light to the stage with the Lustr X8 array for the most nuanced colours and the Daylight HDR array for tunable white light.

We've added wireless DMX/RDM by integrating City Theatrical's Multiverse protocol, and easy NFC configuration using your mobile device and ETC's Set Light app.

Get the brightness you need from every distance, the colour you've been craving, and the control you deserve for the most efficient workflow. Like all ETC fixtures, Series 3 is backed by an unmatched industry warranty.

The colour of emotion

When ETC added lime to the x7 array in 2014, it was a revolutionary step forward for colour mixing. Lime green increased the lumen output in open white and lighter tints making them brighter and livelier than other LED mixes. It was a step closer to matching the tungsten output of a conventional Source Four fixture. It also enriched colour-rendering by better marrying the red and blue ends of the colour spectrum.

Well, we've done it again. This time we're adding Deep Red to the mix. With the eight-colour Lustr X8 array, Series 3 renders skin tones and sunsets with new depth. With the tunable white Daylight HDR array, you get a wider range of warm and cool whites. All, without sacrificing brightness.

Hang this fixture in a box boom, overhead, or from the farthest back-of-house position and be amazed at how bright your stage is. Source Four LED Series 3 truly brings brightness from every position.

ETC's R&D department developed a way to give you fixtures that output a surprising number of lumens while maintaining the nuanced colour control you need to enhance every set, every stage, and every venue. We've reached further into the corners of the CIE colour space to grab a red that is essential to accurately capture the life within every shade of skin, the warm glow of firelight, and the romance of sunset.

Wireless technology

CONTACTLESS COMMUNICATION FROM YOUR MOBILE DEVICE.

The built-in near field communication (NFC) hardware gives you the ability to configure your fixture with your mobile phone or tablet running the Set Light app. Amazingly, this works even if the fixture isn’t powered, allowing you to config while you rig. Ready, set, light!

Next-generation DMX

ETC has partnered with City Theatrical to bring you a patent-pending wireless DMX/RDM technology that enables scalability of wireless lighting data like never before. Multiverse will change your entire approach to lighting by allowing large wireless DMX/RDM systems to be expanded even further. Used in conjunction with your console, City Theatrical's Multiverse can broadcast as many as 10 universes of DMX from a single transmitter without excessive radio energy. This frees up precious wireless bandwidth in your space. Multiverse plays well with others but is robust enough that other signals won't interfere.

Intuitive UI

The user interface was designed to make your workflow as efficient as possible. It is intuitive without compromising on the feature set.

• Quickly and accurately adjust settings.

• The physical UI lock prevents unintentional bumping from changing settings

• Powered USB port for software updates and configuration backup

• Settings menu accessed through the menu button

• Toggle through operational modes using the function button

• The four backlit encoders change colours to correspond to the attributes they control on the screen

Over a decade of research comes together for the market that has inspired ETC for over 45 years. The Source Four LED Series 3 brings the brightest light to the stage with the Lustr X8 array for the most nuanced colours and the Daylight HDR array for tunable white light.

We've added wireless DMX/RDM by integrating City Theatrical's Multiverse protocol, and easy NFC configuration using your mobile device and ETC's Set Light app.

Get the brightness you need from every distance, the colour you've been craving, and the control you deserve for the most efficient workflow. Like all ETC fixtures, Series 3 is backed by an unmatched industry warranty.

The colour of emotion

When ETC added lime to the x7 array in 2014, it was a revolutionary step forward for colour mixing. Lime green increased the lumen output in open white and lighter tints making them brighter and livelier than other LED mixes. It was a step closer to matching the tungsten output of a conventional Source Four fixture. It also enriched colour-rendering by better marrying the red and blue ends of the colour spectrum.

Well, we've done it again. This time we're adding Deep Red to the mix. With the eight-colour Lustr X8 array, Series 3 renders skin tones and sunsets with new depth. With the tunable white Daylight HDR array, you get a wider range of warm and cool whites. All, without sacrificing brightness.

Hang this fixture in a box boom, overhead, or from the farthest back-of-house position and be amazed at how bright your stage is. Source Four LED Series 3 truly brings brightness from every position.

ETC's R&D department developed a way to give you fixtures that output a surprising number of lumens while maintaining the nuanced colour control you need to enhance every set, every stage, and every venue. We've reached further into the corners of the CIE colour space to grab a red that is essential to accurately capture the life within every shade of skin, the warm glow of firelight, and the romance of sunset.

Wireless technology

CONTACTLESS COMMUNICATION FROM YOUR MOBILE DEVICE.

The built-in near field communication (NFC) hardware gives you the ability to configure your fixture with your mobile phone or tablet running the Set Light app. Amazingly, this works even if the fixture isn’t powered, allowing you to config while you rig. Ready, set, light!

Next-generation DMX

ETC has partnered with City Theatrical to bring you a patent-pending wireless DMX/RDM technology that enables scalability of wireless lighting data like never before. Multiverse will change your entire approach to lighting by allowing large wireless DMX/RDM systems to be expanded even further. Used in conjunction with your console, City Theatrical's Multiverse can broadcast as many as 10 universes of DMX from a single transmitter without excessive radio energy. This frees up precious wireless bandwidth in your space. Multiverse plays well with others but is robust enough that other signals won't interfere.

Intuitive UI

The user interface was designed to make your workflow as efficient as possible. It is intuitive without compromising on the feature set.

• Quickly and accurately adjust settings.

• The physical UI lock prevents unintentional bumping from changing settings

• Powered USB port for software updates and configuration backup

• Settings menu accessed through the menu button

• Toggle through operational modes using the function button

• The four backlit encoders change colours to correspond to the attributes they control on the screen

Over a decade of research comes together for the market that has inspired ETC for over 45 years. The Source Four LED Series 3 brings the brightest light to the stage with the Lustr X8 array for the most nuanced colours and the Daylight HDR array for tunable white light.

We've added wireless DMX/RDM by integrating City Theatrical's Multiverse protocol, and easy NFC configuration using your mobile device and ETC's Set Light app.

Get the brightness you need from every distance, the colour you've been craving, and the control you deserve for the most efficient workflow. Like all ETC fixtures, Series 3 is backed by an unmatched industry warranty.

The colour of emotion

When ETC added lime to the x7 array in 2014, it was a revolutionary step forward for colour mixing. Lime green increased the lumen output in open white and lighter tints making them brighter and livelier than other LED mixes. It was a step closer to matching the tungsten output of a conventional Source Four fixture. It also enriched colour-rendering by better marrying the red and blue ends of the colour spectrum.

Well, we've done it again. This time we're adding Deep Red to the mix. With the eight-colour Lustr X8 array, Series 3 renders skin tones and sunsets with new depth. With the tunable white Daylight HDR array, you get a wider range of warm and cool whites. All, without sacrificing brightness.

Hang this fixture in a box boom, overhead, or from the farthest back-of-house position and be amazed at how bright your stage is. Source Four LED Series 3 truly brings brightness from every position.

ETC's R&D department developed a way to give you fixtures that output a surprising number of lumens while maintaining the nuanced colour control you need to enhance every set, every stage, and every venue. We've reached further into the corners of the CIE colour space to grab a red that is essential to accurately capture the life within every shade of skin, the warm glow of firelight, and the romance of sunset.

Wireless technology

CONTACTLESS COMMUNICATION FROM YOUR MOBILE DEVICE.

The built-in near field communication (NFC) hardware gives you the ability to configure your fixture with your mobile phone or tablet running the Set Light app. Amazingly, this works even if the fixture isn’t powered, allowing you to config while you rig. Ready, set, light!

Next-generation DMX

ETC has partnered with City Theatrical to bring you a patent-pending wireless DMX/RDM technology that enables scalability of wireless lighting data like never before. Multiverse will change your entire approach to lighting by allowing large wireless DMX/RDM systems to be expanded even further. Used in conjunction with your console, City Theatrical's Multiverse can broadcast as many as 10 universes of DMX from a single transmitter without excessive radio energy. This frees up precious wireless bandwidth in your space. Multiverse plays well with others but is robust enough that other signals won't interfere.

Intuitive UI

The user interface was designed to make your workflow as efficient as possible. It is intuitive without compromising on the feature set.

• Quickly and accurately adjust settings.

• The physical UI lock prevents unintentional bumping from changing settings

• Powered USB port for software updates and configuration backup

• Settings menu accessed through the menu button

• Toggle through operational modes using the function button

• The four backlit encoders change colours to correspond to the attributes they control on the screen

A Fresnel that's a Source Four.

Your lighting rig is now complete. ETC's new Source Four Fresnel brings you the soft-focus lighting and sparkle you love, with Source Four quality and efficiency. Lighting designers have long applied the romance of Fresnel light -- the controlled blending washlight and soft beam you can only get from a barn-doored Fresnel. Now you have that singular light quality and effect, and more, in a Source Four fixture.

We've combined the best of our acclaimed Source Four HPL lamp technology with the unique optics of a traditional Fresnel. (And that means you can further streamline your fixture lamp inventory with a single source - the HPL.) ETC's Fresnel gives you the high-performance light output and energy savings of a Source Four and the lighting characteristics that only a Fresnel optical system can provide. We've combined that classic system with a special ETC dichroic reflector design, enabling the HPL 750W Source Four Fresnel to equal the light output of 1000W Fresnel fixtures.

With the Source Four Fresnel, you choose the lamp wattage that best suits your particular application and energy requirements - from 375W to 575W to 750W lamps. And when you need to relamp a Source Four Fresnel, ETC's smart new design makes your work easier than ever. Our innovative socket and access door let you change out the lamp from underneath the fixture -- without having to break focus -- saving on work, time and trouble.

Its a zoom to focus. With the Source Four Fresnel, you get that timeless Fresnel light in a 21st-century fixture. ETC's innovative mechanical design has simplified the focusing for you. Whatever physically awkward spot you're working in, we make it easier for you to adjust the fixture from spot to flood, with a full-sized zoom knob you can get a real grip on. We've also engineered the fixture housing to eliminate light leaks and minimize spillage.

Replace your old Fresnels with a fixture that's built to last: like all the Source Fours in your rig, the ETC Fresnel is made of ETC-quality die-cast aluminium.

The power of Source Four in a compact and economical size! The smaller-scale Source Four jr uses the same technology that made the standard Source Four famous. That means unsurpassed imaging and beam quality.

Compared to many conventional 650W and 1000W ellipsoidal spotlights, Source Four jr's 575 watts still deliver an even brighter light and offer the flexibility of multiple HPL lamp options and interchangeable lenses. The Source Four jr is perfect for -- but never limited to -- smaller theater venues, churches, schools, industrials, and any other application where affordability, space-savings and great performance are the criteria.

If you're looking for the field-angle versatility of a zoom ellipsoidal with the affordability and design of a smaller fixture, then you're looking for the Source Four jr Zoom. Great for application on the small stage or in clubs, retail events and industrials, the Source Four jr Zoom boasts rugged ETC fixture construction and all the celebrated precision optics of a Source Four.

Standard Lens Tubes

With the introduction of the iconic Source Four incandescent fixture in 1992, came a revolutionary set of lens tubes that have set the standard for quality around the world. The original Source Four lens tubes are only available from ETC and come in 5 Deg, 10 Deg, 14 Deg, 19 Deg, 26 Deg, 36 Deg, 50 Deg, 70 Deg and 90 Deg field angles.

• Requires standard barrels

Standard Lens Tubes

With the introduction of the iconic Source Four incandescent fixture in 1992, came a revolutionary set of lens tubes that have set the standard for quality around the world. The original Source Four lens tubes are only available from ETC and come in 5 Deg, 10 Deg, 14 Deg, 19 Deg, 26 Deg, 36 Deg, 50 Deg, 70 Deg and 90 Deg field angles.

• Requires standard barrels

Standard Lens Tubes

With the introduction of the iconic Source Four incandescent fixture in 1992, came a revolutionary set of lens tubes that have set the standard for quality around the world. The original Source Four lens tubes are only available from ETC and come in 5 Deg, 10 Deg, 14 Deg, 19 Deg, 26 Deg, 36 Deg, 50 Deg, 70 Deg and 90 Deg field angles.

• Requires standard barrels

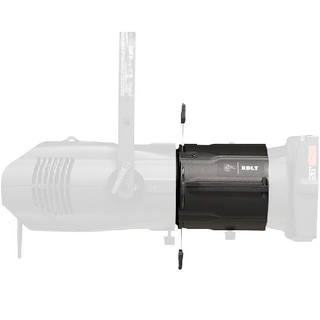

This Shutter Barrel kit connects your ETC LED Light Engine with the XDLT series of Lens Tubes. Designed specifically for LED fixtures, XDLT Lens Tubes provide the highest quality light with advanced lens coatings, plus increased pattern contrast and sharpness.

• Easily install with a phillips screwdriver in less than a minute
• Commonly purchased with "LED Engine Only" fixtures below
• Designed for use with the following:

  • Source Four LED Series 3("LED Engine + Shutter" option)
  • Source Four LED Series 1 / 2("LED Engine Only" option, plus this XDLT Shutter Barrel Kit)
  • All versions of Source 4WRD("LED Engine Only" option, plus this XDLT Shutter Barrel Kit)
  • ColorSource Spot("LED Engine Only" option, plus this XDLT Shutter Barrel Kit)
