Dimmer

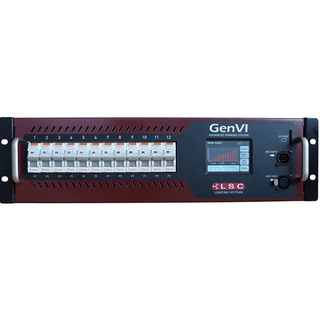

GENV1 Dimmer 12ch 2 x 19 Pin Socopex

Equally, at home in the lighting, sound and video markets, the GenVI Advanced Dimming System allows the user to configure any of its outputs in any combination, to be an 8-bit or 16-bit dimmer or a direct power relay channel (TruPower). This enables the GenVI to dim traditional lamps or power moving lights, LED fixtures, video screens or audio power amplifiers – in fact, any situation where controlled power distribution is needed. It can also be permanently installed or remain portable.

The colour touchscreen offers the ability to set each channel individually, control the outputs locally and view any external fault conditions that may be present.

As well as having local and DMX control, GenVI is also RDM (Remote Device Management) enabled, allowing the user to change the DMX address of the unit and view any fault conditions including over-temperature and loss of phase or DMX signal from any RDM controller.

Each circuit on the GenVI is protected by an RCBO (combination MCB + 30mA RCD) rated at either 10A, 16A or 25A. Optional Neutral Disconnect MCBs can be provided where RCBOs are not desirable.

The GenVI Advanced Dimmer System offers a sophisticated rigger’s control that can replay Scenes or Chases, each of which can be individually programmed in addition to a ‘DMX loss’ Scene that can be activated as an emergency backup on loss of a DMX signal. This emergency backup scene can be programmed via the front-panel controls or via a snapshot of the DMX input signal.

TruPower dimmer and power distribution
RCBO circuit breaker per channel
Auto Power Mode – switches relay channels On when DMX is applied and Off when DMX is no longer present
Dimmer channels can be 8-bit or 16-bit
RDM – Remote Device Management enabled
Operates on mains input voltages between 90V and 260V phase to Neutral
On-board Help screens
Visual alarms for Phase Fail, over-temperature and loss of DMX
PTFD (Pulse Transformer Fired Dimming)
Local rigger’s control
Auto fan control (user-defined)
Colour touchscreen with simple and intuitive navigation

GenVI is equally at home controlling any of the following loads:

Conventional filament lamps
Leading-edge dimmable LED globes
Moving lights
LED fixtures
Video walls
Audio systems
Special effects

Code	Image	Product Name	Attributes		Price
LSC-GEN V1		GENV1 Dimmer 12ch 2 x 19 Pin Socopex		Login For Price	POA

GENV1 Dimmer 12ch x 10 Amp Dimmer/Trupower

Equally, at home in the lighting, sound and video markets, the GenVI Advanced Dimming System allows the user to configure any of its outputs in any combination, to be an 8-bit or 16-bit dimmer or a direct power relay channel (TruPower). This enables the GenVI to dim traditional lamps or power moving lights, LED fixtures, video screens or audio power amplifiers – in fact, any situation where controlled power distribution is needed. It can also be permanently installed or remain portable.

The colour touchscreen offers the ability to set each channel individually, control the outputs locally and view any external fault conditions that may be present.

As well as having local and DMX control, GenVI is also RDM (Remote Device Management) enabled, allowing the user to change the DMX address of the unit and view any fault conditions including over-temperature and loss of phase or DMX signal from any RDM controller.

Each circuit on the GenVI is protected by an RCBO (combination MCB + 30mA RCD) rated at either 10A, 16A or 25A. Optional Neutral Disconnect MCBs can be provided where RCBOs are not desirable.

The GenVI Advanced Dimmer System offers a sophisticated rigger’s control that can replay Scenes or Chases, each of which can be individually programmed in addition to a ‘DMX loss’ Scene that can be activated as an emergency backup on loss of a DMX signal. This emergency backup scene can be programmed via the front-panel controls or via a snapshot of the DMX input signal.

TruPower dimmer and power distribution
RCBO circuit breaker per channel
Auto Power Mode – switches relay channels On when DMX is applied and Off when DMX is no longer present
Dimmer channels can be 8-bit or 16-bit
RDM – Remote Device Management enabled
Operates on mains input voltages between 90V and 260V phase to Neutral
On-board Help screens
Visual alarms for Phase Fail, over-temperature and loss of DMX
PTFD (Pulse Transformer Fired Dimming)
Local rigger’s control
Auto fan control (user-defined)
Colour touchscreen with simple and intuitive navigation

GenVI is equally at home controlling any of the following loads:

Conventional filament lamps
Leading-edge dimmable LED globes
Moving lights
LED fixtures
Video walls
Audio systems
Special effects

Code	Image	Product Name	Attributes		Price
LSC-GENV1-12-10A		GENV1 Dimmer 12ch x 10 Amp Dimmer/Trupower		Login For Price	POA

GENV1 Dimmer 12ch x 10 Amp Dimmer/Trupower; Terminals

Code	Image	Product Name	Attributes		Price
LSC-GENV-12-T		GENV1 Dimmer 12ch x 10 Amp Dimmer/Trupower; Terminals		Login For Price	POA

Houston X for GENV; 1 Year License

Code	Image	Product Name	Attributes		Price
LSC-HSXA/GNV		Houston X for GENV; 1 Year License		Login For Price	POA

Houston X for Unity; 1 Year License

Code	Image	Product Name	Attributes		Price
LSC-HSXA/UTY		Houston X for Unity; 1 Year License		Login For Price	POA

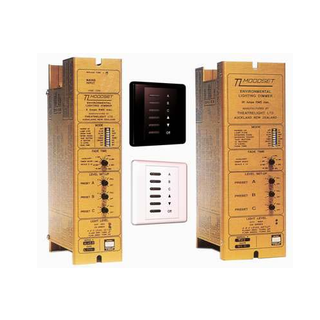

Moodset 20 Amp Module

These new versions of Theatrelight's original Moodsets provide smooth dimming of both incandescent bulbs and leading edge mains dimmable LED bulbs. Applications include restaurants, hotel lobbies/ballrooms/chandeliers, museums and art galleries, theatre house lights, chicken sheds, and other industrial and horticultural uses requiring the smooth dimming of large numbers of LED bulbs.

Three preset levels
Autofade with fade times from 5 sec to 10 min
External level and fade time control
Control of incandescent and inductive loads
Security mode imitates occupied premises
Alarm mode switches lights to full in an emergency
Soft-start for extended lamp life
Available in 8 Amp and 20 Amp modules

Code	Image	Product Name	Attributes		Price
TL-TLMD20		Moodset 20 Amp Module		Login For Price	POA

Moodset 6 Key Flushplate Wallplate White/Black

These new versions of Theatrelight's original Moodsets provide smooth dimming of both incandescent bulbs and leading edge mains dimmable LED bulbs. Applications include restaurants, hotel lobbies/ballrooms/chandeliers, museums and art galleries, theatre house lights, chicken sheds, and other industrial and horticultural uses requiring the smooth dimming of large numbers of LED bulbs.

Three preset levels
Autofade with fade times from 5 sec to 10 min
External level and fade time control
Control of incandescent and inductive loads
Security mode imitates occupied premises
Alarm mode switches lights to full in an emergency
Soft-start for extended lamp life
Available in 8 Amp and 20 Amp modules

Code	Image	Product Name	Attributes		Price
TL-TLFP6W-B		Moodset 6 Key Flushplate Wallplate White/Black		Login For Price	POA

Moodset 8 Amp Module

These new versions of Theatrelight's original Moodsets provide smooth dimming of both incandescent bulbs and leading edge mains dimmable LED bulbs. Applications include restaurants, hotel lobbies/ballrooms/chandeliers, museums and art galleries, theatre house lights, chicken sheds, and other industrial and horticultural uses requiring the smooth dimming of large numbers of LED bulbs.

Three preset levels
Autofade with fade times from 5 sec to 10 min
External level and fade time control
Control of incandescent and inductive loads
Security mode imitates occupied premises
Alarm mode switches lights to full in an emergency
Soft-start for extended lamp life
Available in 8 Amp and 20 Amp modules

Code	Image	Product Name	Attributes		Price
TL-TLMD8		Moodset 8 Amp Module		Login For Price	POA

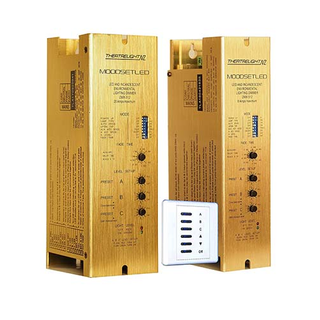

MoodsetLED, 20 Amp Module, SCRs

These new versions of Theatrelight's original Moodsets provide smooth dimming of both incandescent bulbs and leading edge mains dimmable LED bulbs. Applications include restaurants, hotel lobbies/ballrooms/chandeliers, museums and art galleries, theatre house lights, chicken sheds, and other industrial and horticultural uses requiring the smooth dimming of large numbers of LED bulbs.

Three preset levels
Autofade with fade times from 5 sec to 10 min
External level and fade time control
Control of incandescent and inductive loads
Security mode imitates occupied premises
Alarm mode switches lights to full in an emergency
Soft-start for extended lamp life

Code	Image	Product Name	Attributes		Price
TL-MS-LED20		MoodsetLED, 20 Amp Module, SCRs		Login For Price	POA

MoodsetLED, 8 Amp Module, SCRs

These new versions of Theatrelight's original Moodsets provide smooth dimming of both incandescent bulbs and leading edge mains dimmable LED bulbs. Applications include restaurants, hotel lobbies/ballrooms/chandeliers, museums and art galleries, theatre house lights, chicken sheds, and other industrial and horticultural uses requiring the smooth dimming of large numbers of LED bulbs.

Three preset levels
Autofade with fade times from 5 sec to 10 min
External level and fade time control
Control of incandescent and inductive loads
Security mode imitates occupied premises
Alarm mode switches lights to full in an emergency
Soft-start for extended lamp life

Code	Image	Product Name	Attributes		Price
TL-MS-LED8		MoodsetLED, 8 Amp Module, SCRs		Login For Price	POA

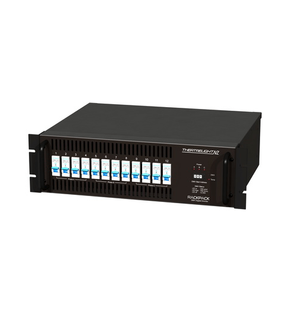

Rack Pack 12 x 13 Amp Dimmer

Re-introduced due to customer demand, this updated version of Theatrelight’s original popular RackPack dimmer provides the utmost simplicity and reliability in an economical dimmer pack, ideal for hire purposes, schools and clubs. For minimum "fiddle factor" so important when hiring, only the DMX start address can be changed by the user. The new model features isolated DMX input, thumbwheel DMX start address selection, and operates on universal power supply of 90-250 vac. 50/60 Hz

Simplest possible user set-up
Isolated DMX input, 1/10th standard RS-485 load
Programmable DMX address
Load protection by MCBs

Code	Image	Product Name	Attributes		Price
TL-TLRP1-1210		Rack Pack 12 x 13 Amp Dimmer		Login For Price	POA

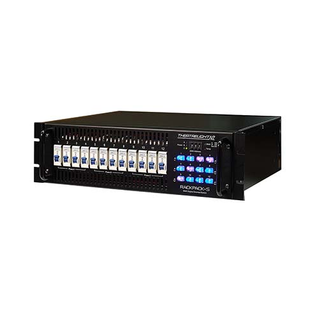

Rack Pack Switch / Dimmer 12 x 10 Amp Socket out

The Rackpack-Switch adds a permanent power switch to every dimmer of the original popular RackPack I.

With the switches On, permanent mains power is provided to non-dimmable loads such as DMX controlled LED luminaires, moving lights, smoke machines and motors.

With the switches Off, the RackPack-S operates as a normal incandescent dimmer.

The simple setup of the Rackpack-S makes it particularly suitable for schools and hire use.

Code	Image	Product Name	Attributes		Price
TL-TLDIM-RP-S1210-SK		Rack Pack Switch / Dimmer 12 x 10 Amp Socket out		Login For Price	POA

RB4/12A Red Back Dimmer with 12 x Outlet

Control

DMX512 1990), DMX512-A (E1-21) with RDM (E1-20) compatibility via internal terminal blocks. Option for bottom panel XLR 5-pin connector module available for plug-in DMX/RDM

remote monitoring, configuration and control via RDM

easy-to-read 2.8" full-colour TFT touchscreen complete with on-board context sensitive Help

graphical user interface for simple configuration and control of the dimmer

two dimmer curves per output channel

full 512 channel Softpatch that allows patching of any DMX channel to any number of dimmer channels

six programmable scenes with individual fade times

rigger’s control for local control of outputs, complete with multiple inbuilt chase options with speed control

easy software update via internally located SD card slot

user-selectable minimum (bottom set) level per channel to allow preheating of lamps

user-selectable maximum (top set) level per channel to reduce output and increase lamp life

architectural control via push-button wall plates (ordered separately) – a maximum of four plates can be connected up to 200m away from dimmer and can remotely activate six stored static scenes

Protection

12 channel x 10A RCBO breakers with 30ma trip per channel

multilevel user interface lock to prevent accidental changes to settings

programmable DMX512 backup scene with delay time, that can be automatically activated with loss of main DMX512 signal

visual alarms for phase fail, over temperature and loss of input signal

panic (fire) input connection (dry contact closure activates an emergency scene)

Outputs

100% duty cycle rated at 25°C ambient with all channels fully loaded

choice of front panel mounted 3-pin Australian output connectors, or internal hardwired screw terminals

manual bypass switch per output channel to provide direct 240V power for non-dim loads

Code	Image	Product Name	Attributes		Price
LSC-RB4-12A		RB4/12A Red Back Dimmer with 12 x Outlet		Login For Price	POA

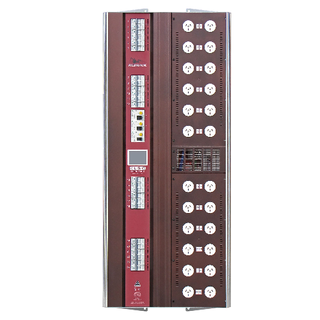

REDBACK Wallmount Dimmer 12 x 10A 3pin

Control

DMX512 1990), DMX512-A (E1-21) with RDM (E1-20) compatibility via internal terminal blocks. Option for bottom panel XLR 5-pin connector module available for plug-in DMX/RDM

remote monitoring, configuration and control via RDM

easy-to-read 2.8" full-colour TFT touchscreen complete with on-board context sensitive Help

graphical user interface for simple configuration and control of the dimmer

two dimmer curves per output channel

full 512 channel Softpatch that allows patching of any DMX channel to any number of dimmer channels

six programmable scenes with individual fade times

rigger’s control for local control of outputs, complete with multiple inbuilt chase options with speed control

easy software update via internally located SD card slot

user-selectable minimum (bottom set) level per channel to allow preheating of lamps

user-selectable maximum (top set) level per channel to reduce output and increase lamp life

architectural control via push-button wall plates (ordered separately) – a maximum of four plates can be connected up to 200m away from dimmer and can remotely activate six stored static scenes

Protection

12 channel x 10A RCBO breakers with 30ma trip per channel

multilevel user interface lock to prevent accidental changes to settings

programmable DMX512 backup scene with delay time, that can be automatically activated with loss of main DMX512 signal

visual alarms for phase fail, over temperature and loss of input signal

panic (fire) input connection (dry contact closure activates an emergency scene)

Outputs

100% duty cycle rated at 25°C ambient with all channels fully loaded

choice of front panel mounted 3-pin Australian output connectors, or internal hardwired screw terminals

manual bypass switch per output channel to provide direct 240V power for non-dim loads

Code	Image	Product Name	Attributes		Price
LSC-RBW12-A		REDBACK Wallmount Dimmer 12 x 10A 3pin		Login For Price	POA

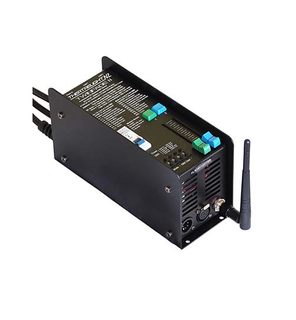

TwinfadeFade II, Dual channel dimmer, total load 2.4 kw

Code	Image	Product Name	Attributes		Price
TL-TLTFII		TwinfadeFade II, Dual channel dimmer, total load 2.4 kw		Login For Price	POA

Unity 12 Channel 10A Dimmer/ switch; RCBO per channel

Code	Image	Product Name	Attributes		Price
LSC-UDM12/10		Unity 12 Channel 10A Dimmer/ switch; RCBO per channel		Login For Price	POA

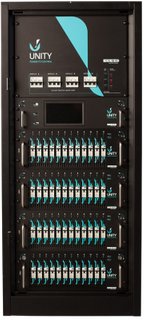

Unity 96 Channel Frame (empty)

Code	Image	Product Name	Attributes		Price
LSC-UIR96		Unity 96 Channel Frame (empty)		Login For Price	POA

Wall 0-10v Dimmer, 24VDC,

0-10V LED dimmer switch SR-2202-1-10V is a single color rotary dimmer controller designed with sleek compact appearance and high strength tempered glass material. The rotary dimmer switch adopts popular and mature 1-10V signal control which offers both switch and smooth brightness dimming functions for single zone. Designed with user-friendly interface and rotary knob, it is easy to switch on/off lights by click the rotary switch and dim brightness by rotating the rotary dimmer. Smooth dimming from 0.1%-100% without any flickering can be very comfortable for human eyes. Compatible with SR-2001 series 0/1-10V signal receivers that are available in both constant voltage and constant current version, the rotary dimmer switch can control different types of LED lightings.

Key Features
