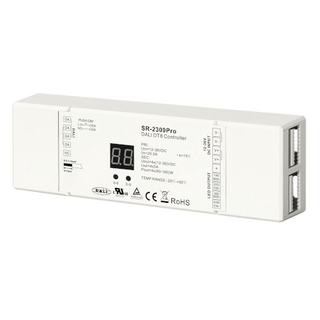

  • DALI DT8 Decoder, 4ch; 5A, 12-36VDC, CV
    DALI DT8 Decoder, 4ch; 5A, 12-36VDC, CV

    SR-2309PRO is a 4 in 1 DALI DT8 LED Controller which is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011. It is DALI DT8 device with built-in DALI-2 interface.

    Four universal device types in 1: Primary N, Tc, XY coordinate and RGBW.

    This control gear is designed with 4 channels PWM output, which enables to control tuneable white LEDs, RGB LEDs, RGBW LEDs depending on the device type configured. This control gear is innovative to be compatible with universal DALI systems, whatever DALI DT8 device types a DALI system support, this control gear supported all DALI DT8 device types.

    DALI address can be freely set using the buttons and digital display even without a DALI master controller.

    This control gear also supports push dim to control not only brightness but also colour temperature and RGB colours even if there is no DALI signal.

    Key Features

    • In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
    • Built-in DALI-2 interface, DALI DT8 device
    • 4 in 1 DALI DT8 LED controller
    • Multi-devices integrated in one control gear
    • DALI DT8 device to control RGBW Outputs or tuneable white outputs via single DALI address
    • Only 1 address required to control 4 outputs separately under primary N mode
    • 4 Channels constant voltage or constant current output
    • Control of four PWM outputs via DALI device type 8
    • Colour control as defined in the DALI specification device type 8
    • Colour type primary N, Tc, XY coordinate, RGBW can be set by manual buttons
    • Supports DT8 device commands, compatible with DALI masters that support DT8 commands
    • Configuration via DALI master USB interface
    • Numeric display for setting DALI address manually
    • Compatible with universal AC push switch
    • Waterproof grade IP20
Code Image Product Name Attributes Price
SR-2309PRO
DALI DT8 Decoder, 4ch; 5A, 12-36VDC, CV
DALI DT8 Decoder, 4ch; 5A, 12-36VDC, CV

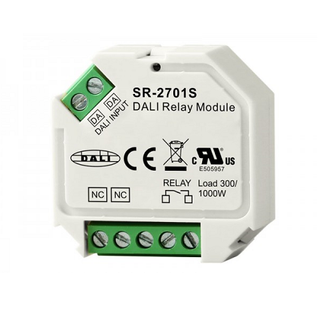

  • DALI Relay 1CH Relay, 230v/ 1000w AC, 30v/ 300w DC
    DALI Relay 1CH Relay, 230v/ 1000w AC, 30v/ 300w DC

    The SR-2701S is a DALI relay module which is capable of switching both AC and DC loads. The max. switching voltage for AC loads is 250V, and the max. switching voltage for DC loads is 30V. The DALI RM enables to integrate existing loads which do not have DALI input into DALI circuit and switch on/off the loads.

    The max. load capacity for conventional incandescent and halogen light sources is 1000W @ 230V, and max. load capacity for LED light sources is 300W @ 230V. It is easy to be installed into existing standard wall boxes or mounted on 35mm DIN rail with an extra mounting bracket.

    Key Features

    • DALI relay module
    • DALI bus powered, no extra power supply required
    • 1 DALI address can be assigned by DALI master controller
    • Control of one standard contactor
    • Compact relay module for controlling a standard contactor via DALI
    • Loads that do not have a DALI input can therefore be integrated in the DALI circuit
    • The loads can be switched on and off via DALI
    • Compatible with universal DALI systems and master controllers in the market
    • Mini Size, easy to be Installed into a standard wall box
    • 5 years warranty
    • Waterproof grade: IP20
    • Code Image Product Name Attributes Price
    SR-2701S
    DALI Relay 1CH Relay, 230v/ 1000w AC, 30v/ 300w DC
    DALI Relay 1CH Relay, 230v/ 1000w AC, 30v/ 300w DC

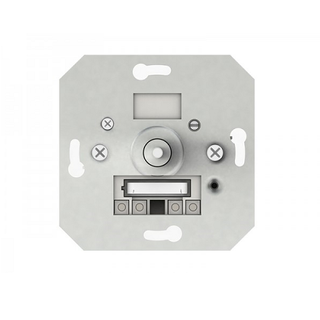

  • DALI rotary dimmer, 230VAC, DALI PSU, DALI Broadcast
    DALI rotary dimmer, 230VAC, DALI PSU, DALI Broadcast

    The SR-2400RB-NF-DIM is a newly released DALI MCU with DALI output for dimming of luminaires or transformers with DALI interface. Without knob and front plate, the DALI MCU is designed with a built-in DALI power supply with 100-240VAC wide input which can power DALI bus while connected to AC mains. While not connected to AC mains, the DALI rotary dimmer can be powered by DALI bus. The DALI manual control unit is updated with a standard 4mm diameter rotary axis that is perfect to use in Europe. Each MCU can power up to 50 DALI ECGs with max. 100mA DALI output. Maximum 2 active DALI MCUs powered by AC mains and 2 passive MCUs powered by DALI bus can connect to DALI bus and control up to 100 DALI ECGs for multiple control points. Dimming solutions are easy and reliable, no DALI addressing required. The manual control unit can save current brightness as scene and remember last scene/brightness when turn on next time. Double click enables users to adjust the brightness to 100%. Compatible with common European size frames and accessories, the DALI manual control unit is easy to install.

    Key Features

    • DALI MCU Rotary Dimmer without Knob and Frame
    • Unique Built-in DALI Power Supply with 100-240VAC Wide Input
    • Updated Standard 4mm Diameter Rotary Axis, Perfect for Europe
    • Great Compatibility with Common European Size Frames and Accessories
    • Innovative Function to Power DALI Bus While Connected to AC Mains
    • Each MCU can control up to 50 DALI ECGs with max. 100mA DALI output.
    • Control up to 100 DALI ECGs with maximum 2 active DALI MCUs powered by AC mains and 2 passive MCUs powered by DALI bus
    • Powered by DALI Bus While not Connected to AC Mains
    • One Channel DALI Bus Can Install multiple DALI manual control units
    • Dimming solutions are easy and reliable, no DALI addressing required
    • Enable to Set and Save Current Brightness as Scene
    • Remember Last Scene When Turn on Next Time
    • Double Click to Adjust Brightness to 100%
    • Code Image Product Name Attributes Price
    SR-2400RB
    DALI rotary dimmer, 230VAC, DALI PSU, DALI Broadcast
    DALI rotary dimmer, 230VAC, DALI PSU, DALI Broadcast

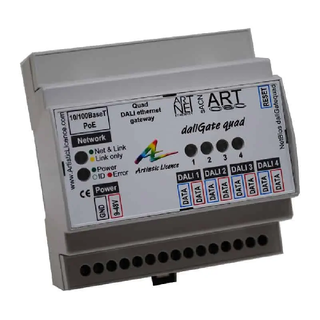

  • daliGate Quad, Ethernet to 4x DALI Gateway
    daliGate Quad, Ethernet to 4x DALI Gateway

    daliGate quad is an Art-Net 4 enabled DIN rail ethernet-to-DALI gateway.

    • Art-Net (all versions) or sACN input
    • 4 DALI output circuits

    daliGate quad seamlessly integrates DALI with Art-Net/DMX/RDM. In practice, it enables any Art-Net enabled console to control DALI fixtures alongside DMX/RDM infrastructure. No need for proprietary technology or specialist engineers!

    daliGate quad is DIN rail product with Art-Net/sACN on the input and four DALI outputs. It can be used in two distinct ways – streaming and command – which are described in detail below.

    In command mode, daliGate quad can be used with our free daliScene app to remotely control scenes from a tablet or smartphone.

    Detail

    daliGate quad is an ethernet-to-DALI interface providing four DALI circuits. It supports Art-Net 4 and sACN.

    Configuration is via the internal web-browser or DMX-Workshop (free-of-charge software available from Artistic Licence). DHCP enables automatic IP addressing; static IP and LLRP negotiation are also supported.

    All four DALI circuits are individually optically isolated.

    A factory reset switch enables the default settings to be restored – simply hold down and cycle the power. Alternatively, a single press of this button sends a ‘squawk’ message over the network to the console. This enables easy physical location of the gateway.

    The product is powered by PoE or an external DC power supply

    Operation

    daliGate quad can be used in two distinct ways, both of which are ground-breaking:

    Mode 1: Streaming

    This mode is useful for any application where both DMX and DALI are needed.

    • Use daliGate quad with an Art-Net capable lighting desk to directly control DALI gear alongside DMX fixtures.
    • All DALI back channel data (such as lamp failure, product capability) is converted to RDM and returned over Art-Net so that the lighting desk can view and change the settings.
    • Broadcast, group and channel addressing can be used at same time to increase flexibility.
    • daliGate quad has a data capture system built in, allowing it to be used as a test and analysis tool in combination with DMX-Workshop (our free software package).

    Mode 2: Scene

    This mode is useful for applications that require remote control of scenes, such as corporate foyers or meeting rooms, retail, high-end residential, schools, museums and visitor centres.

    Code Image Product Name Attributes Price
    ALE-DALIGATE4
    daliGate Quad, Ethernet to 4x DALI Gateway
    daliGate Quad, Ethernet to 4x DALI Gateway
    POA

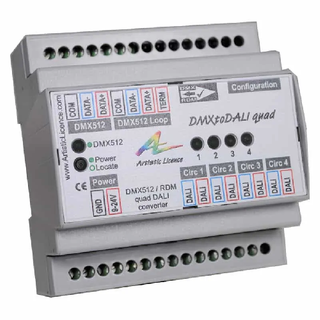

  • DMXtoDALI quad - DIN Rail mount DMX to DALI
    DMXtoDALI quad - DIN Rail mount DMX to DALI
    DIN Rail mount DMX to 4 x DALI conversion. Supports DALI DT0 (Intensity) and DT8 (Colour Temperature and RGBWAF). Features interleaved DALI transmission for faster operation.

    DMXtoDALI quad converts DMX values into DALI commands to allow integration between a DMX512 controller and DALI devices. Up to four DALI circuits can be controlled via DMX512 allowing up to 256 devices to be connected. (For conversion of DALI into DMX, please see the sister product, DALItoDMX).

    DMXtoDALI quad provides simultaneous control via all four addressing modes (Broadcast, Group, Device and Scene) for DT0 (intensity) and supports Broadcast, Group and Scene for DT8 (Colour Temperature and RGBWAF).

    Product configuration involves selection (via RDM) of the DMX512 start address (programmable per product and per DALI circuit) and personality. The latter defines the map between the DMX512 channels and DALI addresses and comes in nine variants to cover common control scenarios. Once configured, a DMX512 channel level change triggers transmission of a DALI command.

    DMXtoDALI quad is highly configurable, enabling it to be tailored for specific installation requirements. If DALI luminaires are to be used alongside DMX lamps, a dimming curve correction can be implemented to improve the visual effect.

    Other configuration options include the ability to disable buffering (a trick that can be useful for fast-moving effects), and a ‘quiet mode’ that suppresses automatic discovery of commissioned DALI devices (to allow interoperability with multiple DALI masters).

    The front panel of DMXtoDALI features status LEDs that give useful instant feedback. In particular, the DALI circuit LEDs will not illuminate if the DALI bus power is missing. The DMX512 light gives confidence that input data is being received, and the power indicator flashes when an RDM locate command is sent (this feature enables easy identification of the DALI devices on each circuit).

    The DMX input can withstand accidental continuous connection to 425 VAC, and will recover when the fault is removed.

    This product requires a 9V to 24V PSU.

    Code Image Product Name Attributes Price
    ALE-DMX2DALI
    DMXtoDALI quad - DIN Rail mount DMX to DALI
    DMXtoDALI quad - DIN Rail mount DMX to DALI
    POA

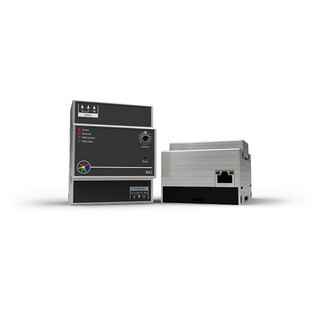

  • RIO D: Distributed DALI control over an Ethernet network
    RIO D: Distributed DALI control over an Ethernet network

    The Pharos RIO D (Remote Input Output DALI) device provides a convenient and scalable way to control DALI fixtures and ballasts from Pharos Designer Controllers.

    Each RIO D supports a single DALI bus, which can be used as an output for control and as an input for triggering. Each device can be placed where it is needed and connected to a Pharos Designer Controller over an Ethernet network.

      • Install is easy and convenient with just a single Power-over-Ethernet (PoE) network connection.
      • Rugged DIN-rail mounting enclosure and install-friendly connectors.
      • A DALI bus can support up to 64 devices.
      • The RIO D Can also be used for ballast configuration and site commissioning.
      • Supports DALI Emergency ballasts.
      • Schedule automatic Function and Duration tests.

    Remote Devices allow the fully scalable Pharos Designer system to be tailored to the needs of each individual project. Multiple Pharos Designer Controllers can be used together with up to 200 Remote Devices and will synchronise automatically.

    Code Image Product Name Attributes Price
    P-RIO-D
    RIO D: Distributed DALI control over an Ethernet network
    RIO D: Distributed DALI control over an Ethernet network
    POA

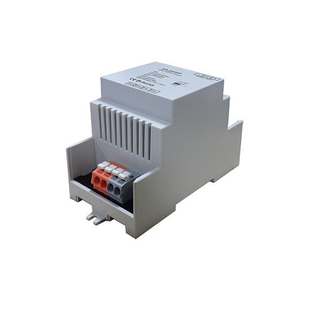

  • Universal DALI Power supply
    Universal DALI Power supply

    SR-2400P is a universal DALI power supply designed with compact size and wide range input voltage 100-240VAC with 250mA output current to power DALI bus. The DALI power features high reliability and stability with over current protection.

    Key Features

    • DALI power supply with 100-240VAC wide input and 250mA output current.
    • To power DALI bus.
    • Compact size.
    • High reliability and stability.
    • Over current protection.
    • Code Image Product Name Attributes Price
    SR-2400P
    Universal DALI Power supply
    Universal DALI Power supply
