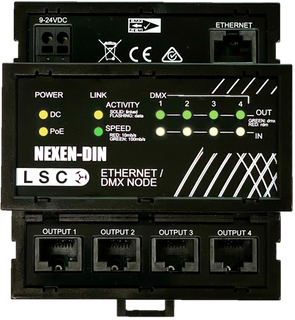

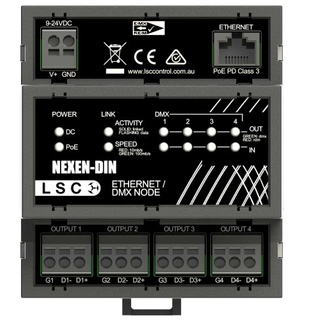

This five-module wide DIN unit is housed in a robust UL94-VO rated ABS plastic body, and offers 10/100MB autosensing RJ45 ethernet, four individually isolated DMX512A ports (RJ45) with configurable RDM and HTP merge per port, and optional RJ45 or hard-wired connector options.
Each port can be configured as Input or Output, with RDM enabled or disabled, and configuration can be carried out via LSC's HOUSTON X software.
Powered by PoE or 9-24V DC, the unit gives a clear indication of power, network connection, network speed, port mode, and signal present.
Other features include compatibility with Art-Net (1, 2, 3, and 4), sACN, DMX512/DMX-512A, RDM and ArtRDM, a boot time of 1s, DHCP or static IP address modes, and remote software upgrades. With both CE (Europe) and RCM (Australia) approval, the unit also comes with LSC's two-year parts and labour warranty.
Features
Any port can be configured as an Input or Output
sACN priority by source and channel
ArtRdm active with/without DMX
RDM injector: Receive DMX on input port, send DMX + RDM on output port
Control
Configure and monitor via HOUSTON X
Enable/Disable RDM per port
DMX512 (1990), DMX512-A (E1-11) and RDM (E1-20)
Protection
full electrical isolation between ethernet input and DMX/RDM ports
full electrical isolation between individual DMX/RDM ports
reverse polarity protection on DC power input
Peace of mind
CE (European) and RCM (Australian) approved
designed and manufactured in Australia by LSC an Australian-owned company with over 40 years experience in developing world-first DMX512 products
