Node

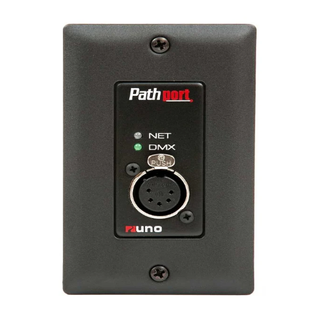

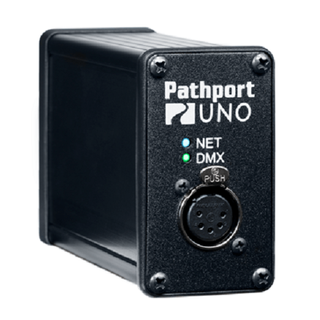

6151 Pathport UNO Portable node XLR5M

Pathport® Portable UNO™ is a single port DMX gateway, with full support for Pathport DMX management and distribution features.

Single DMX512 port
DMX routing on a universe or channel-by-channel basis
Multiple sources merging or prioritizing using a powerful soft patch engine
DMX output speed and signal loss behaviour user-set
LED indicators for network status and DMX status
Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
2.5mm DC input port included
E1.20 RDM compliant as a proxy device
Manage up to 256 RDM responders per port
Ships with optional hanging bracket
Discreet compact design
Supports the following Ethernet protocols:
- E1.31 Streaming ACN (sACN)
- Strand Shownet
- Pathport Protocol
- Art-Net
- ETC Net2 (receive only)

Code	Image	Product Name	Attributes		Price
PP-6151		6151 Pathport UNO Portable node XLR5M		Login For Price	POA

6152 Pathport UNO Portable node XLR5F

Pathport® Portable UNO™ is a single port DMX gateway, with full support for Pathport DMX management and distribution features.

Single DMX512 port
DMX routing on a universe or channel-by-channel basis
Multiple sources merging or prioritizing using a powerful soft patch engine
DMX output speed and signal loss behaviour user-set
LED indicators for network status and DMX status
Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
2.5mm DC input port included
E1.20 RDM compliant as a proxy device
Manage up to 256 RDM responders per port
Ships with optional hanging bracket
Discreet compact design
Supports the following Ethernet protocols:
- E1.31 Streaming ACN (sACN)
- Strand Shownet
- Pathport Protocol
- Art-Net
- ETC Net2 (receive only)

Code	Image	Product Name	Attributes		Price
PP-6152		6152 Pathport UNO Portable node XLR5F		Login For Price	POA

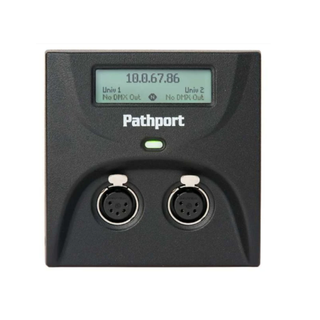

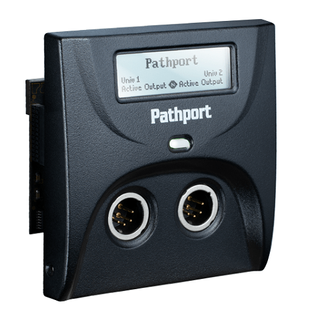

6201 Pathport C-Series 2-port XLR5M

The original and most popular Pathport™ gateway. Suitable for flushmount, permanent installation, or for portable use.

Two DMX512 ports, individually configurable
DMX routing on a universe or channel-by-channel basis
Multiple source merging or prioritizing
DMX output speed and signal loss behavior user-set
LCD display provides status feedback
Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
E1.20 RDM compliant as proxy device
Manage up to 128 RDM responders per port
Fits standard 2-gang, deep backbox
Surface mount or portable enclosures as accessories
Elegant design suitable for any location
Supports the following Ethernet protocols:
- E1.31 Streaming ACN (sACN)
- Strand Shownet
- Pathport Protocol
- Art-Net
- ETC Net2 (receive only)

Model	Description
6201	Pathport C-Series gateway with 2 DMX Inputs
6202	Pathport C-Series gateway with 2 DMX Outputs
6203	Pathport C-Series gateway with 1 DMX Input and 1 DMX Output

Code	Image	Product Name	Attributes		Price
PP-6201		6201 Pathport C-Series 2-port XLR5M		Login For Price	POA

6202 Pathport C-Series 2-port XLR5F

The original and most popular Pathport™ gateway. Suitable for flushmount, permanent installation, or for portable use.

Two DMX512 ports, individually configurable
DMX routing on a universe or channel-by-channel basis
Multiple source merging or prioritizing
DMX output speed and signal loss behavior user-set
LCD display provides status feedback
Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
E1.20 RDM compliant as proxy device
Manage up to 128 RDM responders per port
Fits standard 2-gang, deep backbox
Surface mount or portable enclosures as accessories
Elegant design suitable for any location
Supports the following Ethernet protocols:
- E1.31 Streaming ACN (sACN)
- Strand Shownet
- Pathport Protocol
- Art-Net
- ETC Net2 (receive only)

Model	Description
6201	Pathport C-Series gateway with 2 DMX Inputs
6202	Pathport C-Series gateway with 2 DMX Outputs
6203	Pathport C-Series gateway with 1 DMX Input and 1 DMX Output

Code	Image	Product Name	Attributes		Price
PP-6202		6202 Pathport C-Series 2-port XLR5F		Login For Price	POA

6203 Pathport C-Series 2-port XLR5F & XLR5M

The original and most popular Pathport™ gateway. Suitable for flushmount, permanent installation, or for portable use.

Two DMX512 ports, individually configurable
DMX routing on a universe or channel-by-channel basis
Multiple source merging or prioritizing
DMX output speed and signal loss behavior user-set
LCD display provides status feedback
Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
E1.20 RDM compliant as proxy device
Manage up to 128 RDM responders per port
Fits standard 2-gang, deep backbox
Surface mount or portable enclosures as accessories
Elegant design suitable for any location
Supports the following Ethernet protocols:
- E1.31 Streaming ACN (sACN)
- Strand Shownet
- Pathport Protocol
- Art-Net
- ETC Net2 (receive only)

Model	Description
6201	Pathport C-Series gateway with 2 DMX Inputs
6202	Pathport C-Series gateway with 2 DMX Outputs
6203	Pathport C-Series gateway with 1 DMX Input and 1 DMX Output

Code	Image	Product Name	Attributes		Price
PP-6203		6203 Pathport C-Series 2-port XLR5F & XLR5M		Login For Price	POA

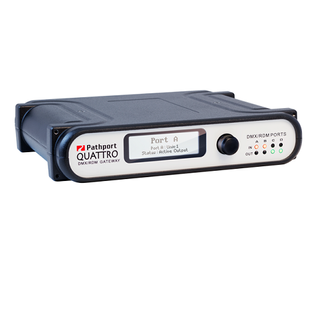

6321 Pathport Quattro 4-port node with rear XLR5F

A compact four-port version of our popular DMX-over-Ethernet management gateways.

Power-over-Ethernet operation makes the Pathport QUATTRO ideal for truss-mounted locations, while silent, fanless operation allows it to be placed immediately next to the lighting console, no matter where the console must be located. The encoder knob/LCD screen interface provides front panel access to all common configuration parameters. Most users won’t need a computer for configuration.

Four DMX512 ports, individually configurable
10/100Mb Ethernet port
Front panel UI supports configuration of IP settings, port direction, basic patching and more
Route DMX on either a universe or channel-by-channel basis
Map up to eight sources to each output channel, with merge and/or priority options user-set for each source
Acts as E1.20 RDM proxy controller, when used with freely downloadable Pathscape software
DMX output speed and signal loss behaviour user-selectable
Compact size – two gateways may fit side-by-side in 1RU of space
Rackmount ears included
Operates on Poe (Power over Ethernet) or auxiliary 24-48VDC power supply (accessory)
Supports the following Ethernet protocols
- E1.31 streaming ACN (sACN)
- Art-Net
- Pathport Protocol
- Shownet

6321	Pathport QUATTRO 4-Port gateway, rear XLR5F connectors
6322	Pathport QUATTRO 4-Port gateway, rear terminal connectors
6326	Pathport QUATTRO 4-Port gateway, rear RJ45 connectors

Code	Image	Product Name	Attributes		Price
PP-6321		6321 Pathport Quattro 4-port node with rear XLR5F		Login For Price	POA

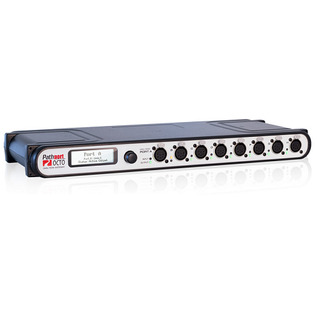

6423 Pathport OCTO 8-port Gateway, Front XLR5F

The Pathport OCTO™ is an eight-port rack-mountable gateway, providing compact installation for any size system. The Octo also provides a simple, straightforward replacement option for Pathfinder™ matrix switching systems.

The Pathport OCTO provides all the features and flexibility that Pathports are renowned for, at our lowest cost-per-port ever.

Status LEDs provide instant confirmation of port direction and activity. The LCD display and encoder knob allow for front panel configuration and reporting of the most commonly used features, such as IP address and subnet mask, port direction and protocol selection. Different Ethernet protocols may even be merged together or prioritized. Advanced features include crossfade between DMX sources, DMX output speed and signal loss behaviour. Multiple connector options are available, including adaptor kits to convert terminal strips to IDC connections.

Eight DMX512 ports, individually configurable
10/100Mb Ethernet port
Front panel UI supports configuration of IP settings, port direction, basic patching and more
Route DMX on either a universe or channel-by-channel basis
Map up to eight sources to each output channel, with merge and/or priority options user-set for each source
Acts as E1.20 RDM proxy controller, when used with freely downloadable Pathscape software
DMX output speed and signal loss behaviour user-selectable
Silent, fanless operation
Rackmount ears included
Wide-range power input
Supports the following Ethernet protocols
- E1.31 streaming ACN (sACN)
- Art-Net
- Pathport Protocol
- Shownet

6421	Pathport OCTO 8-Port Gateway, Rear XLR5F
6422	Pathport OCTO 8-Port Gateway, Rear Terminals
6423	Pathport OCTO 8-Port Gateway, Front XLR5F
6426	Pathport OCTO 8-Port Gateway, Rear RJ45 EtherCon
6427	Pathport OCTO 8-Port Gateway, Front RJ45 EtherCon

Code	Image	Product Name	Attributes		Price
PP-6423		6423 Pathport OCTO 8-port Gateway, Front XLR5F		Login For Price	POA

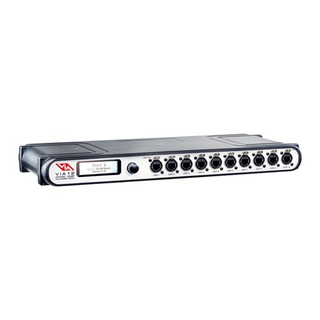

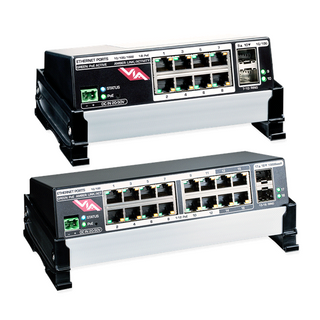

6750-P VIA12 Gigabit Ethernet Switch, 12 Port, 100W PoE on-board

The VIA12 is a twelve copper port (plus two SFP+ ports) Gigabit Ethernet Switch designed specifically for lighting, sound and video signal routing in all entertainment production systems, including live shows.

Unlike switches designed and marketed for office and communication applications, VIA12 is convection cooled and ships as an unmanaged switch, pre-configured and optimized for entertainment network use. Layer 2 and 3 management features are enabled and configured through the front panel interface and the Pathscape software suite.

Trap Art-Net and convert it to sACN
Features include IGMP querier and snooping, DHCP server per VLAN, bandwidth monitor, Dante-compliant QoS option, EAPS, ring protection, Rapid Spanning Tree (RSTP)
Silent operation - fanless, convection-cooled design
Illuminated LCD display and rotary encoder for displaying and setting switch and port properties
Global properties editable from front panel interface: IP Address, Subnet Mask, Default Gateway, VLAN Configuration, Link Speed, PoE Allocation, DHCP Pool, Ring Protection
Properties displayed by front panel interface: Switch Name, Port Name, PoE usage, Serial Number, MAC address, firmwareProperties displayed by front panel interface: Switch Name, Port Name, PoE Usage, Serial Number, MAC Address, Firmware Version, Connected Devices (LLDP Compliant), Link Status and Speed, Bandwidth Monitor
Model 6750-P features an integrated 100W PoE supply for powering compatible external devices
Up to 15W of Power-over-Ethernet (PoE) may be allotted to each copper port (6750-P Model)
Twelve locking etherCON RJ45 ports (ten on front panel, two on rear) support 10/100/1000Base-T speeds
Two mini-GBIC ports on rear panel, for SFP or SFP+ fiber modules (1000Base-LX, 1000Base-SX, 10GBase-SR or 10GBase-LR)
Supports SFP+ 10Gbit Direct-Attach cables, both active and passive
Link Layer Discovery Protocol (LLDP)
Includes rack ears; wall and truss mounts available as accessories

Code	Image	Product Name	Attributes		Price
PP-6750-P		6750-P VIA12 Gigabit Ethernet Switch, 12 Port, 100W PoE on-board		Login For Price	POA

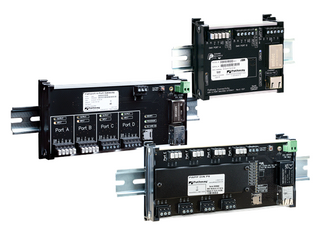

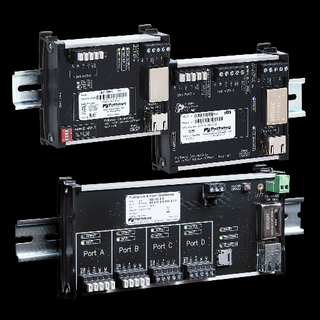

6824 Pathport 4-port Gateway, eDIN

The VIA series of Ethernet Switches are designed specifically for lighting, sound and video Ethernet switching in all entertainment production systems, including live shows. Unlike switches designed and marketed for office and communication applications, VIA switches are convection cooled and ship unmanaged, pre-configured and optimized for entertainment network use. Advanced management features, including VLAN Support, EAPS Ring Protection, IGMP, and more are enabled and configured through the freely downloadable Pathscape software.The VIA DIN-mount Ethernet Switches are compact and DIN-mountable, suitable for permanent installations.

Control Device Type	Interface Device
Mounting Location	Cabinet, Wall
Mounting Type	DIN Rail, Surface
Product Type	Ethernet Switch
Networkable Control	Yes
Voltage Rating	Low Voltage
# of Comm. Ports	16, 8
Receiving Protocol	Ethernet
Sending Protocol	Ethernet, sACN
Dimming Protocol	sACN

Code	Image	Product Name	Attributes		Price
PP-6824		6824 Pathport 4-port Gateway, eDIN		Login For Price	POA

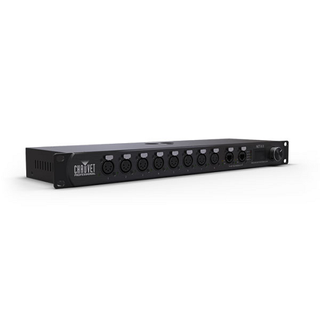

Chauvet NET-X 11 DMX/Ethernet Merger and Node and Splitter

Net-XII is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets, which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs and all optically isolated and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs (or the Ethernet inputs to mix network inputs with DMX inputs in a single device). LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library while providing experts with a highly customizable network infrastructure for complex control systems.

At a Glance

5-pin DMX splitter/distributor
Art-Net/sACN to DMX converter, up to 8 universes
DMX to Art-Net/sACN converter, up to 8 universes
Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs
HTP (highest takes priority) and LTP (latest takes priority) merge functions supported
Backup settings and configurations with the same or other NET-X IIs
Webserver supported for remote configuration and backup/update
Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones, 1 at a time, using the 5-wire Phoenix cold contacts on the rear of the unit
Supports RDM over Art-Net for remote fixture management

Code	Image	Product Name	Attributes		Price
CH-NETXII		Chauvet NET-X 11 DMX/Ethernet Merger and Node and Splitter		Login For Price	POA

Cisco CBS350 Series 24-Port Smart Gigabit PoE Switch

Code	Image	Product Name	Attributes		Price
CIS-CBS350-24P-4G-AU		Cisco CBS350 Series 24-Port Smart Gigabit PoE Switch		Login For Price	POA

Cisco CBS350 Series 24-Port Smart Gigabit PoE Switch; SFP+

Code	Image	Product Name	Attributes		Price
CIS-CBS350-24P-4X-AU		Cisco CBS350 Series 24-Port Smart Gigabit PoE Switch; SFP+		Login For Price	POA

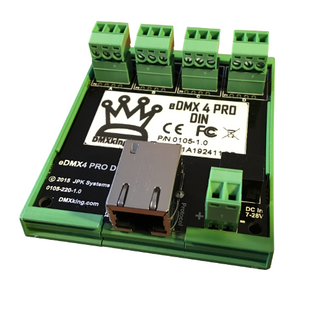

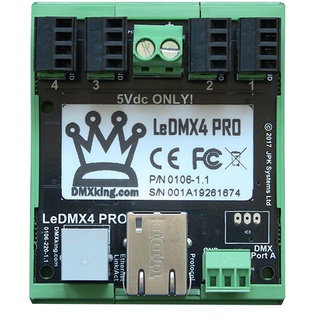

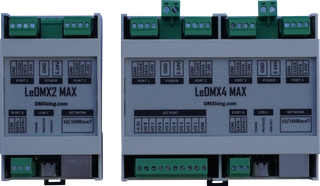

DMX King LeDMX 24v Din Rail

An OEM Board for direct sACN/E1.31 and Art-Net to RGB/RGBW pixel strip/array control. No longer do you need sACN/Art-Net -> DMX512 -> Pixel driver.
Eliminate the DMX512 conversion using our LeDMX4 PRO and go direct sACN/Art-Net -> Pixel.
Compact and feature packed you'll find it easy to design into your applications with the ability to scale as big as you like whilst keeping everything synchronized.
Designed and manufactured in New Zealand to the highest standards LeDMX4 PRO is a professional product you can rely on backed by our world renowned after sales support.
Firmware v2.6 LeDMX4 PRO now offers ArtNet/sACN stream merging and sACN Priority overrides giving end users the ability to bring the best of different lighting control systems and media servers together seemlessly.
No other pixel controller offers such flexibility.
Firmware v3.0+ LeDMX4 PRO includes show recording and playback from microSD card complete with sACN Priority override from an external source during playback providing many possibly use scenarios.
Trigger show playback via Art-Net, sACN, DMX-IN Port and external contact closure.
Firmware v3.3+ LeDMX4 PRO now features a Master Level control to dim pixels independent of control source DMX streams.
Main Features
Static IP or DHCP network addressing.
OEM board for integration into your designs.
DIN rail mount possible with DIN clip accessory.
4 Independent outputs each with 5A supply capability.
1x DMX512 IN/OUT port.
Directly drives WS2811, WS2812, WS2812B, WS2813, WS2815, WS2822S, UCS1903, UCS2903, UCS2912, UCS8903, UCS8904, PL9823, TM1934, APA101, SK9822, APA102, APA104, APA106, INK1002, INK1003, SM16703, SK6812, WS2801, LPD6803, LPD8806, DMX512-P and many more compatible LED strips.
Selectable clock/data rate to suit long cables or fast output.
Up to 680 RGB pixels or 512 RGBW pixels per output spanning 4 DMX universes (2720 RGB pixels / 16 universes per board).
Up to 340 16bit RGB pixels or 256 16bit RGBW pixels per output. Requires firmware 3.3+
Automatic RGB / RGBW order correction and additional pixel re-mapping features.
Per pixel intensity control for APA102/SK9822 utilizing the 5bit current pre-regulator. Requires firmware 3.3+
Master Level control independent of incoming universe streams. Requires firmware 3.3+

Flexible Full Mapping option for outputs permitting any start address and zig-zag corrections for RGB, RGB16, RGBW and RGBW16 pixel types..
Null pixel support for longer runs to first active pixel.
Static IP or DHCP network addressing.
Art-Net broadcast, Art-Net II, 3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support.
Universe Sync Art-Net, sACN and Madrix Post Sync.
Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN/E1.31 protocols.
Fully compatible with lighting consoles capable of generating Art-Net or sACN protocol.
HTP Merging of 2 sources and sACN Priority for a highly flexible multi-source pixel mapping solution.
DMX512 OUT/IN port usable for pixel mapping source along with ArtNet/sACN.
Configuration utility with basic Art-Net output/input test functionality.
Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
Standalone show playback without computer or network connection. External trigger input.
Firmware updates can be performed by end user.
Supported operating systems: Any with Ethernet networking support. Windows, Mac, Linux, iOS, Android

Code	Image	Product Name	Attributes		Price
LEDMX-24		DMX King LeDMX 24v Din Rail		Login For Price

DMX King LeDMX 5v

An OEM Board for direct sACN/E1.31 and Art-Net to RGB/RGBW pixel strip/array control. No longer do you need sACN/Art-Net -> DMX512 -> Pixel driver.
Eliminate the DMX512 conversion using our LeDMX4 PRO and go direct sACN/Art-Net -> Pixel.
Compact and feature packed you'll find it easy to design into your applications with the ability to scale as big as you like whilst keeping everything synchronized.
Designed and manufactured in New Zealand to the highest standards LeDMX4 PRO is a professional product you can rely on backed by our world renowned after sales support.
Firmware v2.6 LeDMX4 PRO now offers ArtNet/sACN stream merging and sACN Priority overrides giving end users the ability to bring the best of different lighting control systems and media servers together seemlessly.
No other pixel controller offers such flexibility.
Firmware v3.0+ LeDMX4 PRO includes show recording and playback from microSD card complete with sACN Priority override from an external source during playback providing many possibly use scenarios.
Trigger show playback via Art-Net, sACN, DMX-IN Port and external contact closure.
Firmware v3.3+ LeDMX4 PRO now features a Master Level control to dim pixels independent of control source DMX streams.
Main Features
Static IP or DHCP network addressing.
OEM board for integration into your designs.
DIN rail mount possible with DIN clip accessory.
4 Independent outputs each with 5A supply capability.
1x DMX512 IN/OUT port.
Directly drives WS2811, WS2812, WS2812B, WS2813, WS2815, WS2822S, UCS1903, UCS2903, UCS2912, UCS8903, UCS8904, PL9823, TM1934, APA101, SK9822, APA102, APA104, APA106, INK1002, INK1003, SM16703, SK6812, WS2801, LPD6803, LPD8806, DMX512-P and many more compatible LED strips.
Selectable clock/data rate to suit long cables or fast output.
Up to 680 RGB pixels or 512 RGBW pixels per output spanning 4 DMX universes (2720 RGB pixels / 16 universes per board).
Up to 340 16bit RGB pixels or 256 16bit RGBW pixels per output. Requires firmware 3.3+
Automatic RGB / RGBW order correction and additional pixel re-mapping features.
Per pixel intensity control for APA102/SK9822 utilizing the 5bit current pre-regulator. Requires firmware 3.3+
Master Level control independent of incoming universe streams. Requires firmware 3.3+

Flexible Full Mapping option for outputs permitting any start address and zig-zag corrections for RGB, RGB16, RGBW and RGBW16 pixel types..
Null pixel support for longer runs to first active pixel.
Static IP or DHCP network addressing.
Art-Net broadcast, Art-Net II, 3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support.
Universe Sync Art-Net, sACN and Madrix Post Sync.
Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN/E1.31 protocols.
Fully compatible with lighting consoles capable of generating Art-Net or sACN protocol.
HTP Merging of 2 sources and sACN Priority for a highly flexible multi-source pixel mapping solution.
DMX512 OUT/IN port usable for pixel mapping source along with ArtNet/sACN.
Configuration utility with basic Art-Net output/input test functionality.
Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
Standalone show playback without computer or network connection. External trigger input.
Firmware updates can be performed by end user.
Supported operating systems: Any with Ethernet networking support. Windows, Mac, Linux, iOS, Android

Code	Image	Product Name	Attributes		Price
LEDMX-5V		DMX King LeDMX 5v		Login For Price

DMXKing LeDMX Din Rail 12-24VDC

An OEM Board for direct sACN/E1.31 and Art-Net to RGB/RGBW pixel strip/array control. No longer do you need sACN/Art-Net -> DMX512 -> Pixel driver.
Eliminate the DMX512 conversion using our LeDMX4 PRO and go direct sACN/Art-Net -> Pixel.
Compact and feature packed you'll find it easy to design into your applications with the ability to scale as big as you like whilst keeping everything synchronized.
Designed and manufactured in New Zealand to the highest standards LeDMX4 PRO is a professional product you can rely on backed by our world renowned after sales support.
Firmware v2.6 LeDMX4 PRO now offers ArtNet/sACN stream merging and sACN Priority overrides giving end users the ability to bring the best of different lighting control systems and media servers together seemlessly.
No other pixel controller offers such flexibility.
Firmware v3.0+ LeDMX4 PRO includes show recording and playback from microSD card complete with sACN Priority override from an external source during playback providing many possibly use scenarios.
Trigger show playback via Art-Net, sACN, DMX-IN Port and external contact closure.
Firmware v3.3+ LeDMX4 PRO now features a Master Level control to dim pixels independent of control source DMX streams.
Main Features
Static IP or DHCP network addressing.
OEM board for integration into your designs.
DIN rail mount possible with DIN clip accessory.
4 Independent outputs each with 5A supply capability.
1x DMX512 IN/OUT port.
Directly drives WS2811, WS2812, WS2812B, WS2813, WS2815, WS2822S, UCS1903, UCS2903, UCS2912, UCS8903, UCS8904, PL9823, TM1934, APA101, SK9822, APA102, APA104, APA106, INK1002, INK1003, SM16703, SK6812, WS2801, LPD6803, LPD8806, DMX512-P and many more compatible LED strips.
Selectable clock/data rate to suit long cables or fast output.
Up to 680 RGB pixels or 512 RGBW pixels per output spanning 4 DMX universes (2720 RGB pixels / 16 universes per board).
Up to 340 16bit RGB pixels or 256 16bit RGBW pixels per output. Requires firmware 3.3+
Automatic RGB / RGBW order correction and additional pixel re-mapping features.
Per pixel intensity control for APA102/SK9822 utilizing the 5bit current pre-regulator. Requires firmware 3.3+
Master Level control independent of incoming universe streams. Requires firmware 3.3+

Flexible Full Mapping option for outputs permitting any start address and zig-zag corrections for RGB, RGB16, RGBW and RGBW16 pixel types..
Null pixel support for longer runs to first active pixel.
Static IP or DHCP network addressing.
Art-Net broadcast, Art-Net II, 3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support.
Universe Sync Art-Net, sACN and Madrix Post Sync.
Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN/E1.31 protocols.
Fully compatible with lighting consoles capable of generating Art-Net or sACN protocol.
HTP Merging of 2 sources and sACN Priority for a highly flexible multi-source pixel mapping solution.
DMX512 OUT/IN port usable for pixel mapping source along with ArtNet/sACN.
Configuration utility with basic Art-Net output/input test functionality.
Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
Standalone show playback without computer or network connection. External trigger input.
Firmware updates can be performed by end user.
Supported operating systems: Any with Ethernet networking support. Windows, Mac, Linux, iOS, Android

Code	Image	Product Name	Attributes		Price
LEDMX-12		DMXKing LeDMX Din Rail 12-24VDC		Login For Price

eDMX Trigger 4 Button/ Input Din Rail

External show playback triggering for LeDMX4 PRO, eDMX PRO & ultraDMX2 PRO
Supplied with 30cm RJ12 terminated cable.
Verify your LeDMX PRO or eDMX PRO product has an accessory port before purchasing.
On board buttons alongside terminal blocks provide easy and customized basic show play back functionality.
Single eDMX PRO / LeDMX PRO / ultraDMX2 PRO can broadcast eDMX Trigger control to other units on network.

Code	Image	Product Name	Attributes		Price
EDMX-TRIGGER		eDMX Trigger 4 Button/ Input Din Rail		Login For Price

eDMX4 PRO ISODIN

Designed for DIN rail cabinet installations in tough electrical environments.
eDMX4 PRO ISODIN provides ANSI E1.11 Higher Protection Level on all DMX512-A ports so they'll survive high voltage transients and other unusual line conditions.
Port protection is identical to the highly reliably eDMX4 PRO product.
Supporting both DMX512 output and DMX512 input individually configurable on each channel along with Art-Net and sACN protocols the eDMX4 PRO ISODIN is an ideal choice for universe hungry lighting installations.
Flexible configuration permits 2 input DMX merge functionality too.
Designed and manufactured in New Zealand to the highest standards.
DIN rail mounting included.
Main Features
Static IP or DHCP network addressing.
Supported operating systems: Any with Ethernet networking support. Windows, MAC OS, Linux, iOS, Android....
eDMX4 PRO ISODIN - 4x DMX512 Out or DMX512 In with Art-Net, sACN E1.31 and E1.20 RDM support
Merge 2 incoming Art-Net streams per output channel with both HTP and LTP options
Merge Art-Net + DMX input -> DMX output(s)
Merge 2x DMX input -> DMX output(s)
sACN Priority takeover for multi-tier controller arrangements
Mix and match ArtNet with sACN merge/priority sources
1500V Isolation between every port
DIN Rail mounting
E1.11 Higher Protection Level “DMX512-A Protected” device.
Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN protocols.
Works with your existing console if Art-Net or sACN external nodes are supported.
Universe Sync Art-Net, sACN and Madrix Post Sync.
Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
Standalone show playback without computer or network connection.
Accessory port for external show triggering and future add on devices.
Configuration utility with basic Art-Net output/input test functionality.
Firmware updates can be performed by end user.

Code	Image	Product Name	Attributes		Price
EDMX4 PRO ISODIN		eDMX4 PRO ISODIN		Login For Price

eDMX4 Pro Port Din Rail DMX Node

Compact OEM Board for sACN/E1.31 and Art-Net to DMX512 conversion.
Supporting both DMX512 output and input individually configurable on each channel along with Art-Net and sACN protocols the eDMX4 PRO DIN is well suited to distributed permanent installations tucked away in small enclosures.
Designed and manufactured in New Zealand to the highest standards.
Firmware v3.0+ eDMX4 DIN PRO includes show recording and playback from microSD card and Universe Sync functionality.
Main Features
Wide input power range 8-28Vdc.
Static IP or DHCP network addressing.
OEM board for integration into your designs.
DIN rail mount possible with DIN clip accessory.
4x DMX512 Out or DMX512 In with E1.20 RDM support.
Merge 2 incoming Art-Net streams per output channel with both HTP and LTP options.
Merge Art-Net + DMX input -> DMX output(s).
Merge 2x DMX input -> DMX output(s).
sACN Priority takeover for multi-tier controller arrangements.
Available with 3 pin screw terminal plugs or RJ45 sockets.
Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN protocols.
Fully compatible with lighting consoles capable of generating Art-Net or sACN protocol.
Universe Sync Art-Net, sACN and Madrix Post Sync.
Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
Standalone show playback without computer or network connection.
Configuration utility with basic Art-Net output/input test functionality.
Firmware updates can be performed by end user.
Supported operating systems: Any with Ethernet networking support. Windows, Mac, Linux, iOS, Android.

Code	Image	Product Name	Attributes		Price
EDMX4-DIN		eDMX4 Pro Port Din Rail DMX Node		Login For Price

EDN 10 Ethernet Data Node 10 (1+1 Ethernet, 10 DMX/RDM)

The Pharos EDN 10 (Ethernet Data Node) is a convenient and scalable solution, providing cost-effective Ethernet-distributed DMX ports for large control projects. The EDN 10 is an easily configurable networking node that is specifically designed to add physical DMX ports to Pharos controllers and integrates natively with the full Pharos range.

Extremely compact, it packs 10 DMX512 output ports in just a 1U 19" form factor. For very high-channel count installations, nodes can be daisy-chained to provide as many physical DMX universe outputs as you need.

EDNs are discoverable through Pharos Designer software and associated to a controller to be seamlessly configured as part of your patch. Ports can be flexibly assigned to any controller in your project providing an elegant distribution solution over an Ethernet network with minimal setup required.

Code	Image	Product Name	Attributes		Price
P-EDN10		EDN 10 Ethernet Data Node 10 (1+1 Ethernet, 10 DMX/RDM)		Login For Price	POA

NEXEN-DIN 4port Ethernet-DMX/RDM node push terminals for DMX

New!

This five-module wide DIN unit is housed in a robust UL94-VO rated ABS plastic body, and offers 10/100MB autosensing RJ45 ethernet, four individually isolated DMX512A ports (RJ45) with configurable RDM and HTP merge per port, and optional RJ45 or hard-wired connector options.

Each port can be configured as Input or Output, with RDM enabled or disabled, and configuration can be carried out via LSC's HOUSTON X software.

Powered by PoE or 9-24V DC, the unit gives a clear indication of power, network connection, network speed, port mode, and signal present.

Other features include compatibility with Art-Net (1, 2, 3, and 4), sACN, DMX512/DMX-512A, RDM and ArtRDM, a boot time of 1s, DHCP or static IP address modes, and remote software upgrades. With both CE (Europe) and RCM (Australia) approval, the unit also comes with LSC's two-year parts and labour warranty.
