Hoist

Hoist

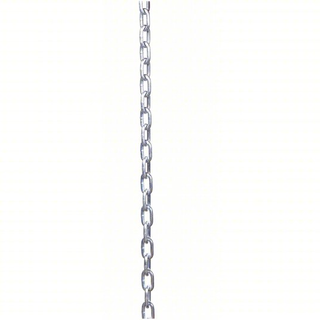

  • 6.35mm x 18.91mm Chain for 500KG Lodestar Hoist
    6.35mm x 18.91mm Chain for 500KG Lodestar Hoist
    Code Image Product Name Attributes Price
    PAH-LSCHAIN6MM
    6.35mm x 18.91mm Chain for 500KG Lodestar Hoist
    6.35mm x 18.91mm Chain for 500KG Lodestar Hoist
    POA

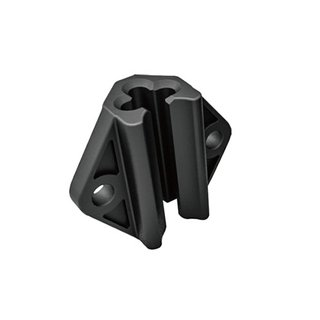

  • Chain Hoist Chain Slider 6.3-7.1mm Chain
    Chain Hoist Chain Slider 6.3-7.1mm Chain

    Chain Slider

    KU-CH-CS-6371

    Description

    The chain slider is designed for cable management in entertainment rigging system. It is made in one piece with two fixing points for cable such as power, control, data or audio cables to get attached. Put several units on the chain in the electric chain hoist before applying the load, and while chain hoist is in operation the chain slider makes the cables neatly organized and well in position with up and down movement. No tool is required whilst putting chain slider in the chain. This chain slider cannot be attached or detached while the chain is under load.

    Features:

    • Made of sturdy and low friction black POM.
    • Quick and tool-free attachment with chain, without removing the hook.
    • Two fixing points (10mm hole) for shackle or cable tie to use.
    • Available in two sizes and suitable for wide range of entertainment rigging chain hoists.
    Code Image Product Name Attributes Price
    KU-CH-CS-6371
    Chain Hoist Chain Slider 6.3-7.1mm Chain
    Chain Hoist Chain Slider 6.3-7.1mm Chain
  • Chain Hoist Chain Slider 7.9-9.0mm Chain
    Chain Hoist Chain Slider 7.9-9.0mm Chain

    Chain Slider

    KU-CH-CS-7990

    Description

    The chain slider is designed for cable management in entertainment rigging system. It is made in one piece with two fixing points for cable such as power, control, data or audio cables to get attached. Put several units on the chain in the electric chain hoist before applying the load, and while chain hoist is in operation the chain slider makes the cables neatly organized and well in position with up and down movement. No tool is required whilst putting chain slider in the chain. This chain slider cannot be attached or detached while the chain is under load.

    Features:

    • Made of sturdy and low friction black POM.
    • Quick and tool-free attachment with chain, without removing the hook.
    • Two fixing points (10mm hole) for shackle or cable tie to use.
    • Available in two sizes and suitable for wide range of entertainment rigging chain hoists.
    Code Image Product Name Attributes Price
    KU-CH-CS-7990
    Chain Hoist Chain Slider 7.9-9.0mm Chain
    Chain Hoist Chain Slider 7.9-9.0mm Chain

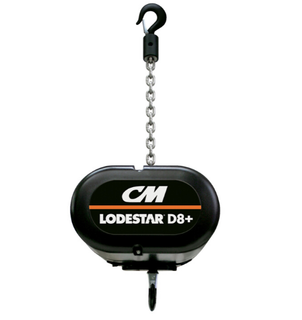

  • CM Lodestar 1000KG D8+ Chain Hoist Model L 4.9 m/min no chain or bag
    CM Lodestar 1000KG D8+ Chain Hoist Model L 4.9 m/min no chain or bag

    Lodestar NH D8+ Entertainment Electric Chain Hoist

    The Lodestar D8+ meets all 2018 SQP2 requirements and is the only product on the market certified to meet this standard by TUV SUD. With a design factor of 8:1 and double braked installed, the Lodestar D8+ meets the highest level of safety for all world standards.

    Highest Level of Safety

    Made in the USA, the Lodestar D8+ ensures the highest level of safety for permanent application and global tours. Designed to suspend loads without the need for secondary support, saving cost and time in rigging.

    The clutch, located outside the load path, acts as a precise overload device. The zinc-plated or Black Phosphate Star Grade EN chain satisfies EN818-7 standards.

    FEATURES AND BENEFITS

    Lodestar NH D8+ Entertainment Electric Chain Hoist

    IP66 RATING

    An Ingress Protection (IP) Rating of 66 indicates that the Lodestar offers protection from dust and high-pressure water - making this unit ideal for use in outdoor environments.

    OVERLOAD PROTECTION

    The clutch outside of the gear train meets international standards. Designed to prevent damage to the hoist by preventing excessive overloads.

    QUIET AND SMOOTH OPERATION

    With a 5-pocket lift wheel

    LONG LIFE AND SMOOTHER OPERATION

    Designed with precision helical gearing.

    REDESIGNED CONTROL PANEL

    Provides easier access.

    QUICK ACCESS AND EASY INSPECTION

    The heavy-duty DC brake location allows for quick access and easy inspection.

    LOW VOLTAGE CONTROL

    DUTY CYCLE

    H-4 duty rated for heavy-duty application.

    ELECTRICAL

    Finger-safe wiring meets all electrical codes Quick change plugs allow for voltages 230 through 460. Prevents improper voltage connections which can cause hoist damage.

    ADJUSTABLE LIMIT SWITCH

    Adjustable limit switch that automatically stops the hook at any predetermined point when lifting or lowering, preventing overtravel.

    METRIC-RATED LOAD CHAIN

    Zinc plated to protect against corrosion. Black phosphate finish optional.

    ROAD READY

    Easy to stow and travel.

    WARRANTY

    Lifetime warranty

    Internal Load Cell Technology Available

    New internal load cell technology, available on the CM-ET family of Lodestar hoists, gives you the power to recognize safety issues before they occur, especially in automation applications where hoists are used in tandem.

    Built and designed to work with the CM Lodestar, this load sensing technology seamlessly connects to your existing load monitoring controls.

    Code Image Product Name Attributes Price
    PAH-LS1000D8+L
    CM Lodestar 1000KG D8+ Chain Hoist Model L 4.9 m/min no chain or bag
    CM Lodestar 1000KG D8+ Chain Hoist Model L 4.9 m/min no chain or bag
    POA
  • CM Lodestar 500KG D8+ Chain Hoist Model F 4.9 m/min no chain or bag
    CM Lodestar 500KG D8+ Chain Hoist Model F 4.9 m/min no chain or bag

    Lodestar NH D8+ Entertainment Electric Chain Hoist

    The Lodestar D8+ meets all 2018 SQP2 requirements and is the only product on the market certified to meet this standard by TUV SUD. With a design factor of 8:1 and double braked installed, the Lodestar D8+ meets the highest level of safety for all world standards.

    Highest Level of Safety

    Made in the USA, the Lodestar D8+ ensures the highest level of safety for permanent application and global tours. Designed to suspend loads without the need for secondary support, saving cost and time in rigging.

    The clutch, located outside the load path, acts as a precise overload device. The zinc-plated or Black Phosphate Star Grade EN chain satisfies EN818-7 standards.

    FEATURES AND BENEFITS

    Lodestar NH D8+ Entertainment Electric Chain Hoist

    IP66 RATING

    An Ingress Protection (IP) Rating of 66 indicates that the Lodestar offers protection from dust and high-pressure water - making this unit ideal for use in outdoor environments.

    OVERLOAD PROTECTION

    The clutch outside of the gear train meets international standards. Designed to prevent damage to the hoist by preventing excessive overloads.

    QUIET AND SMOOTH OPERATION

    With a 5-pocket lift wheel

    LONG LIFE AND SMOOTHER OPERATION

    Designed with precision helical gearing.

    REDESIGNED CONTROL PANEL

    Provides easier access.

    QUICK ACCESS AND EASY INSPECTION

    The heavy-duty DC brake location allows for quick access and easy inspection.

    LOW VOLTAGE CONTROL

    DUTY CYCLE

    H-4 duty rated for heavy-duty application.

    ELECTRICAL

    Finger-safe wiring meets all electrical codes Quick change plugs allow for voltages 230 through 460. Prevents improper voltage connections which can cause hoist damage.

    ADJUSTABLE LIMIT SWITCH

    Adjustable limit switch that automatically stops the hook at any predetermined point when lifting or lowering, preventing overtravel.

    METRIC-RATED LOAD CHAIN

    Zinc plated to protect against corrosion. Black phosphate finish optional.

    ROAD READY

    Easy to stow and travel.

    WARRANTY

    Lifetime warranty

    Internal Load Cell Technology Available

    New internal load cell technology, available on the CM-ET family of Lodestar hoists, gives you the power to recognize safety issues before they occur, especially in automation applications where hoists are used in tandem.

    Built and designed to work with the CM Lodestar, this load sensing technology seamlessly connects to your existing load monitoring controls.

    Code Image Product Name Attributes Price
    PAH-LS500D8+F
    CM Lodestar 500KG D8+ Chain Hoist Model F 4.9 m/min no chain or bag
    CM Lodestar 500KG D8+ Chain Hoist Model F 4.9 m/min no chain or bag
    POA

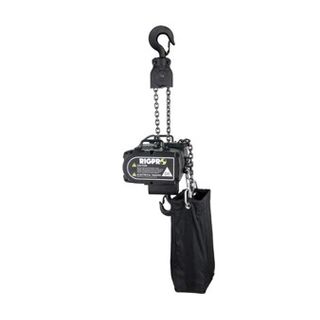

  • RigPro 1 Ton Chain Hoist, 20m x 7.1mm Chain, Chain Bag, 400v/3p/50Hz 16 CEE Plug
    RigPro 1 Ton Chain Hoist, 20m x 7.1mm Chain, Chain Bag, 400v/3p/50Hz 16 CEE Plug

    RigPro 1 Tonne Chain Hoist

    RIGPRO RH-1000 is a three phase chain hoist, loading rated for 1000 kgs, and built for rigorous entertainment rigging environment.

    RH-1000 is available with DC (Direct Control) and LVC (Low Voltage Control) version, and operates in both upright and inverted positions.

    Features

    • Gravity die-casted aluminum, matt-black non reflective finish chassis for rigid, light-weighted, durable and low visibility.
    • Epoxy black powder coated chassis is featuring corrosionresistance, and with fine gasket and mechanical design, the complete unit turns to be IP54 rated.
    • Enhanced Nylon chain leading plate ensures the chain links properly fit into the lift wheel, and eliminates the possibility of jamming, as well as protects the lift wheel from wet and dirt.
    • Heavy-duty DC brake automatically gets engaged in the event of power failure, requiring very little maintenance and only minor periodic adjustments.
    • Hook is made of drop-forged high tensile steel with heat treatment, allowing 360 degree swiveling, and equipped with safety latch to ensure proper rigging the load.
    • Equipped with duty cycle ED 40% high efficiency, lightweight and robust motor, running the chain hoist quietly and steady.
    • Operates on three phase voltage of 400V/50Hz, and LVC is 110V as standard. Other voltage for DC and LVC version is available upon request.
    • Conforms to FEM 2m / ISO M5 classification, covering a wide range of applications.
    • Average operational noise is within 75dB, quietly working and less noisy.

    Specifications

    • Load capacity 1000kg
    • Spring-applied double DC brake enhances the safety
    • Motor: 0.75KW x 4P
    • 1.5KW x 2P (PS8 Version)
    • Motor isolation class: F
    • Lifting speed: 4M/min (50Hz), 4.8M/min (60Hz)
    • Load wheel: 5-pocket
    • Load chain: DT Type Grade 80, 7.1 x 20.2mm
    • Duty cycle: 2m FEM class, ED 40% or 240 times on / off per hour
    • Operation voltage: AC 400V / 50Hz (diff. voltage depend on request)
    • Friction clutch: YES
    • Chain hoist weight: 47kg (without chain)
    • Chain weight: 1.1kg per meter
    Code Image Product Name Attributes Price
    KU-RH-1000S4
    RigPro 1 Ton Chain Hoist, 20m x 7.1mm Chain, Chain Bag, 400v/3p/50Hz 16 CEE Plug
    RigPro 1 Ton Chain Hoist, 20m x 7.1mm Chain, Chain Bag, 400v/3p/50Hz 16 CEE Plug
    POA
  • RigPro 2 TON Chain Hoist, 20m X 7.1mm Chain, Chain Bag, 16A Cee Plug 400v/3P/50H
    RigPro 2 TON Chain Hoist, 20m X 7.1mm Chain, Chain Bag, 16A Cee Plug 400v/3P/50H

    RigPro 2 Tonne Chain Hoist

    RIGPRO RH-2000 is a three phase chain hoist, loading rated for 2000 kg, and built for rigorous entertainment rigging environment. RH-2000 is available with DC (Direct Control) and LVC (Low Voltage Control) version, and operates in both upright and inverted positions.

    Outstanding Features:

    • Gravity die-casted aluminum, matt-black non reflective finish chassis for rigid, light-weighted, durable and low visibility.
    • Epoxy black powder coated chassis is featuring corrosion resistance, and with fine gasket and mechanical design, the complete unit turns to be IP54 rated.
    • Enhanced Nylon chain leading plate ensures the chain links properly fit into the lift wheel, and eliminates the possibility of jamming, as well as protects the lift wheel from wet and dirt.
    • Heavy-duty DC brake automatically gets engaged in the event of power failure, requiring very little maintenance and only minor periodic adjustments.
    • Hook is made of drop-forged high tensile steel with heat treatment, allowing 360 degree swiveling, and equipped with safety latch to ensure proper rigging the load.
    • Equipped with duty cycle ED 40% high efficiency, lightweight and robust motor, running the chain hoist quietly and steady.
    • Operates on three phase voltage of 400V/50Hz, and LVC is 110V as standard. Other voltage for DC and LVC version is available upon request.
    • Conforms to FEM 2m / ISO M5 classification, covering a wide range of applications.
    • Average operational noise is within 75dB, quietly working and less noisy.

    Specifications

    • Load capacity 2000kg (2 falls)
    • Spring-applied double DC brake enhances the safety
    • Overload friction clutch is located outside the load path
    • Motor: 1.5KW x 2P
    • Motor isolation class: F
    • Lifting speed: 4M/min (50Hz), 4.8M/min (60Hz)
    • Load wheel: 5-pocket
    • Load chain: DT Type Grade 80, 7.1 x 20.2mm
    • Duty cycle: 2m FEM class, ED 40% or 240 times on / off per hour
    • Operation voltage: AC 400V / 50Hz (diff. voltage depend on request)
    • Friction clutch: YES
    • Chain hoist weight: 62kg (without chain)
    • Chain weight: 1.1kg per meter
    Code Image Product Name Attributes Price
    KU-RH-2000
    RigPro 2 TON Chain Hoist, 20m X 7.1mm Chain, Chain Bag, 16A Cee Plug 400v/3P/50H
    RigPro 2 TON Chain Hoist, 20m X 7.1mm Chain, Chain Bag, 16A Cee Plug 400v/3P/50H
    POA
  • RigPro Chain Bag 18" with Hooks 25m of 7.1mm chain
    RigPro Chain Bag 18" with Hooks 25m of 7.1mm chain
    The RigPro chain bags are designed to assist with the containment of excess lifting chain, coming down from loads being hoisted, thus preventing common hazards associated with loss chains. The bag with the utmost consideration to safety, convenience and strength. This removable chain bag is made of high grade black fabric, 1000 deniers, and reinforced with 3.5cm wide rugged polyester strips.
    Features - Three 3.5 cm straps crisscross the bottom to increase loading capacity.
    - 4 mm thickness acrylic plate on bottom distributes the chain weight evenly.
    - Upper metal frame keeps chain bag in rectangular shape.
    - 2 drainage holes on lower side to prevent accumulation of rainwater in case of outdoor use.
    - Made of high grade black 1000 deniers woven fabric.
    - Side strap with triple stitches.
    - Each chain bag comes with two eyehooks; quick link carabiners attached to the eye ring at two sides.
    Code Image Product Name Attributes Price
    KU-CB-18
    RigPro Chain Bag 18" with Hooks 25m of 7.1mm chain
    RigPro Chain Bag 18" with Hooks 25m of 7.1mm chain
  • RigPro Chain Bag 22" with Hooks 40m of 7.1mm chain
    RigPro Chain Bag 22" with Hooks 40m of 7.1mm chain
    The RigPro chain bags are designed to assist with the containment of excess lifting chain, coming down from loads being hoisted, thus preventing common hazards associated with loss chains. The bag with the utmost consideration to safety, convenience and strength. This removable chain bag is made of high grade black fabric, 1000 deniers, and reinforced with 3.5cm wide rugged polyester strips.
    Features - Three 3.5 cm straps crisscross the bottom to increase loading capacity.
    - 4 mm thickness acrylic plate on bottom distributes the chain weight evenly.
    - Upper metal frame keeps chain bag in rectangular shape.
    - 2 drainage holes on lower side to prevent accumulation of rainwater in case of outdoor use.
    - Made of high grade black 1000 deniers woven fabric.
    - Side strap with triple stitches.
    - Each chain bag comes with two eyehooks; quick link carabiners attached to the eye ring at two sides.
    Code Image Product Name Attributes Price
    KU-CB-22
    RigPro Chain Bag 22" with Hooks 40m of 7.1mm chain
    RigPro Chain Bag 22" with Hooks 40m of 7.1mm chain
