Rogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around its face. A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9Deg to 55.3Deg for maximum coverage. Seven 45W RGBW LEDs combine excellent colour mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control. The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter. Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colours. This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements. Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols. Update software easily with an onboard USB-C port.

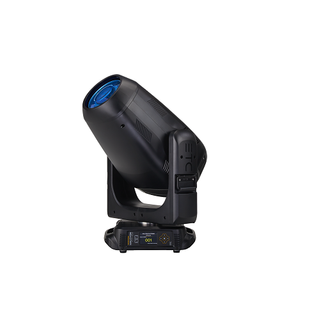

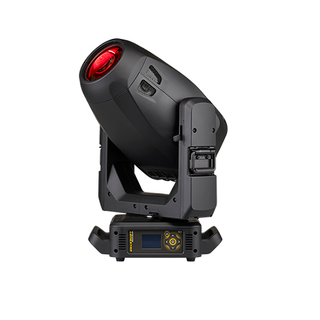

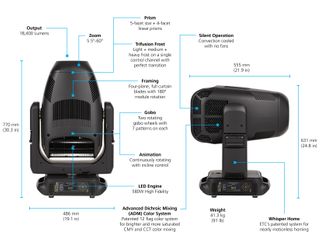

Meet the High End Systems Halcyon, the next generation of automated framing luminaires from ETC. Created to meet the needs of rental operations, theatres, and opera houses, Halcyon is designed for the exacting demands of lighting production. Offering reduced cost, reduced weight, and increased output, Halcyon fixtures are each best in class and engineered to fit into every spec for every design.

Description

ETC, the market leader in automated luminaire innovation, brings you the next generation hallmark of white light framing fixtures. High End Systems Halcyon Gold, the smallest product in the Halcyon Framing family of fixtures, is a compact luminaire with over 31,000 lumens of output in a 62 lb frame. Easily outperforming fixtures of the past in size and weight, Halcyon Gold has an extreme feature set with everything a user needs to light shows of all shapes and sizes.

Features

• Bright white LED engine
• 430 W Ultra-Bright engine
• Fixture output exceeding 31,000 lumens
• High quality 13-lens optic system
• Extremely versatile 6-57 Deg field angle zoom
• Optimized CMY and CTO color mixing for even hue control
• Seven position plus open color wheel
• Full-curtain framing system for total control of beam shaping
• 16-blade iris for extremely tight beam effects
• Beautifully linear Trifusion frost system
• Seven position plus open Rotating Gobo Wheel
• Eight position plus open Fixed Gobo Wheel
• Dual prisms for compound beam and projection effects
• Rotating Animation Wheel with linear positioning and angular control

Colour

Halcyons tighter, next-gen gradient dichroics and a linear mixing curve supported by ETC’s renowned color science create smooth and even colors, both in and out of focus.

Framing

Full curtain framing gives you all the tools to perfectly shape your show. Better gobo-on-framing clarity and repeatability with less reflection or spill.

Gobos

Meticulously reviewed and hand-selected for a full library of aerials, rotational effects, and breakups with consistent positioning across the family.

Trifusion

ETCs Trifusion system goes smoothly from sharp projection all the way to a heavy wash with a single control channel, supporting an even & linear frost distribution with maximum light output.

Animation

Halcyon offers a continuously rotating animation wheel with incline control, allowing unparalleled control of angle and spin direction.

Whisper Home

Patented Whisper Home technology uses a dual-sensor system providing homing with little movement while also being quiet, fast, and precise.

Best In Class

Choose the High End Systems fixtures you need based on budget, weight, and most importantly, light output. With matching feature sets and performance across all fixtures, Halcyon is sleek and smooth to blend into your rig.

Meet the High End Systems Halcyon, the next generation of automated framing luminaires from ETC. Created to meet the needs of rental operations, theatres, and opera houses, Halcyon is designed for the exacting demands of lighting production. Offering reduced cost, reduced weight, and increased output, Halcyon fixtures are each best in class and engineered to fit into every spec for every design.

Description

ETC, the market leader in automated luminaire innovation, brings you the next-generation hallmark of white light Framing fixtures. High End Systems Halcyon Platinum, the flagship product in the Halcyon Framing family of fixtures, has 54,000 lumens of output and a boost mode with over 70,000 lumens of output in a 99 lb frame. Outperforming fixtures of the past by as much as 20,000 lumens, Halcyon Platinum also has an extreme feature set with everything a user needs to light shows of shapes and sizes.

Features

• Bright white LED engine
• 1200 W LED engine
• Standard mode output exceeds 54,000 lumens
• Boost mode exceeding 70,000 lumens
• High quality 13-lens optic system
• Extremely powerful 6-64 Deg zoom
• Optimized CMY and CTO color mixing for even hue control
• Six positions plus open color wheel
• Full-curtain framing system for total control of beam shaping
• 16-blade iris for extremely tight beam effects
• Trifusion frost system with linear insertion from light to heavy and everything in between
• Two, 7 position plus open Rotating Gobo Wheels
• Dual prisms for compound beam and projection effects
• Rotating Animation Wheel with linear positioning and angular control

Colour

Halcyons tighter, next-gen gradient dichroics and a linear mixing curve supported by ETCs renowned color science create smooth and even colors, both in and out of focus.

Framing

Full curtain framing gives you all the tools to perfectly shape your show. Better gobo-on-framing clarity and repeatability with less reflection or spill.

Gobos

Meticulously reviewed and hand-selected for a full library of aerials, rotational effects, and breakups with consistent positioning across the family.

Trifusion

ETCs Trifusion system goes smoothly from sharp projection all the way to a heavy wash with a single control channel, supporting an even & linear frost distribution with maximum light output.

Animation

Halcyon offers a continuously rotating animation wheel with incline control, allowing unparalleled control of angle and spin direction.

Whisper Home

Patented Whisper Home technology uses a dual-sensor system providing homing with little movement while also being quiet, fast, and precise.

Best In Class

Choose the High End Systems fixtures you need based on budget, weight, and most importantly, light output. With matching feature sets and performance across all fixtures, Halcyon is sleek and smooth to blend into your rig.

Meet the High End Systems Halcyon, the next generation of automated framing luminaires from ETC. Created to meet the needs of rental operations, theatres, and opera houses, Halcyon is designed for the exacting demands of lighting production. Offering reduced cost, reduced weight, and increased output, Halcyon fixtures are each best in class and engineered to fit into every spec for every design.

Description

ETC, the market leader in automated luminaire innovation, brings you the next generation hallmark of white light framing fixtures. High End Systems Halcyon Titanium, the middle product in the Halcyon Framing family of fixtures, is an earth shattering luminaire with over 40,000 lumens of output in a 76 lb frame. Outperforming fixtures of the past by 15,000 lumens and 20 lb, Halcyon Titanium also has an extreme feature set with everything a user needs to light shows of all shapes and sizes.

Features

• Bright white LED engine
• 600 W Ultra-Bright engine
• Fixture output exceeding 40,000 lumens
• High quality 13-lens optic system
• Extremely powerful 6-60 Deg zoom
• Optimized CMY and CTO color mixing for even hue control
• Six positions plus open color wheel
• Full-curtain framing system for total control of beam shaping
• 16-blade iris for extremely tight beam effects
• Trifusion frost system with linear insertion from light to heavy and everything in between
• Two, 7 position plus open Rotating Gobo Wheels
• Dual prisms for compound beam and projection effects
• Rotating Animation Wheel with linear positioning and angular control

Colour

Halcyons tighter, next-gen gradient dichroics and a linear mixing curve supported by ETCs renowned color science create smooth and even colors, both in and out of focus.

Framing

Full curtain framing gives you all the tools to perfectly shape your show. Better gobo-on-framing clarity and repeatability with less reflection or spill.

Gobos

Meticulously reviewed and hand-selected for a full library of aerials, rotational effects, and breakups with consistent positioning across the family.

Trifusion

ETCs Trifusion system goes smoothly from sharp projection all the way to a heavy wash with a single control channel, supporting an even & linear frost distribution with maximum light output.

Animation

Halcyon offers a continuously rotating animation wheel with incline control, allowing unparalleled control of angle and spin direction.

Whisper Home

Patented Whisper Home technology uses a dual-sensor system providing homing with little movement while also being quiet, fast, and precise.

Best In Class

Choose the High End Systems fixtures you need based on budget, weight, and most importantly, light output. With matching feature sets and performance across all fixtures, Halcyon is sleek and smooth to blend into your rig.

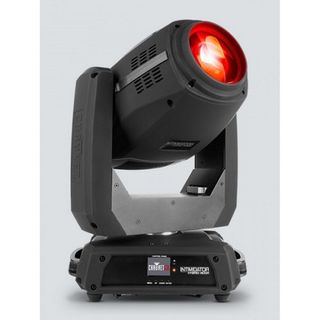

FEATURES

• True hybrid moving head fitted with an intense 140 W discharge light engine
• All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly
• Dual, overlapping prisms with independent control multiply the beam dynamics
• Dual gobo wheels allow for gobo morphing and amazing mid-air projections
• Motorized zoom works in beam, spot and wash modes for ultimate light control
• Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
• Emit crisp projections at almost any distance using the motorized focus
• Glass optics ensure crisp beams and gobos at all times
• Flexible menu option accepts Osram 132 W lamps if needed
• Full-colour display with IRC-6 compatibility, totem mode and onboard memory for storing a scene
• On-board power linking saves time running extension cords
• Fits best in the CHS-50 VIP Gear Bag

SPECIFICATIONS

• DMX Channels: 13 or 19
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540 deg;/270 deg; Pan and Tilt Ranges: 180 deg, 360 deg, 540 deg; pan/90 deg, 180 deg, 270 deg; tilt
• Colors: 12 + white, split colors, continuous scroll at variable speeds
• Gobos: wheel (1): 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
  wheel (2): 17 + open, aluminum, continuous scroll at variable speeds
• Light Source: (included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)
  (optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)
• Strobe Rate: 0 to 20 Hz
• Illuminance: (3 deg; beam): 382,000 lux @ 5 m
  (7° spot): 104,700 lux @ 5 m
  (14° wash): 4,680 lux @ 5 m
• Power Linking: 3 units @ 120 V; 6 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 260 W, 2.5 A @ 120 V, 60 Hz
  254 W, 1.3 A @ 230 V, 50 Hz
• Gobo Size: (rotating): 13.7 mm outside, 11 mm image, 1 mm max thickness
• Zoom Angle: (beam): 3 deg; to 11 deg;
  (spot): 7 deg; to 21 deg;
  (wash): 14 deg; to 28 deg
• Weight:15.2 kg
• Size: 322 x 220 x 513 mm
• Approvals: CE, MET
• Gobo wheel: (1): 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
  (2): 17 + open, metal, continuous scroll at variable speeds
• Optional Controllers: IRC 6

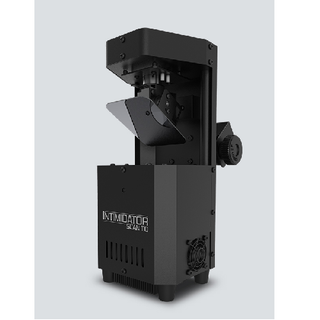

Small and mighty moving beam power! Intimidator Scan 110 is an extremely compact and lightweight LED scanner perfect for mobile applications.

Energize any dance floor with fast and precise movements using either sound-activated programs that dance to the beat of the music or convenient, wireless non-DMX control using an optional IRC-6 remote.

Intimidator Scan 110 is a time saver too! Built-in movement macros and move-in-black features make programming fast and easy and you can save time running cables and extension cords by power linking multiple units as well.

Fits best in the CHS-40 VIP gear bag.

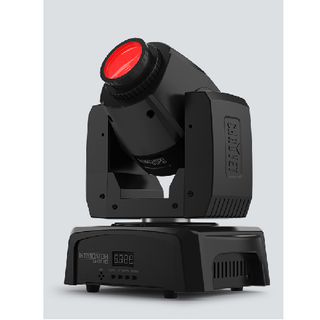

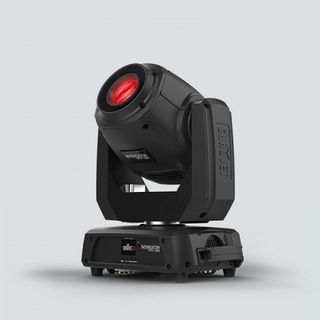

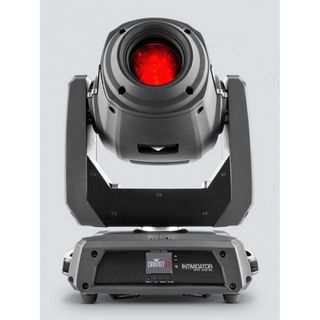

Small but mighty, the compact Intimidator Spot 110 is a lightweight LED moving head prefect for modest mobile applications.

It features separate color and gobo wheels for creative programming but also easy-to-use sound-activated programs for dynamic light shows to sync to the music.

Built-in automated programs are also on board the Intimidator Spot 110 and it’s easy to generate a synchronized show in Master/Slave mode.

Fits best in the CHS-40 VIP gear bag.

FEATURES

• Feature-packed moving head fitted with a 100 W LED designed for mobile performances
• Dual rotating prisms split the beam for great effects and cover a larger area
• Throw light farther by decreasing the beam angle 5° using the manual zoom
• Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
• Project crisp gobos from nearly any distance with the motorized focus
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Set, save, and recall 1 scene manually, directly from the full-colour LCD display
• Convenient, wireless non-DMX control using the optional IRC-6 remote
• powerCON®-compatible power input/output connections for power linking
• Suitable for every event with either black or white housing

SPECIFICATIONS

• DMX Channels:8 or 14
• DMX Connectors:3-pin XLR
• Pan and Tilt:540deg;/270deg
• Pan and Tilt Ranges:540deg, 360deg, 180deg; pan/270deg, 180°, 90deg; tilt
• Colors:8 + white, split colors, continuous scroll at variable speeds
• Gobos:7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Light Source:1 LED (white) 100 W, (3.2 A), 50,000 hours life expectancy
• Strobe Rate:0 to 20 Hz
• Illuminance:(12°): 35,010 lux @ 2 m
  (17°): 19,710 lux @ 2 m
  (12°): 5,470 lux @ 5 m
  3,097 lux @ 5 m
• Power Linking:5 units @ 120 V; 9 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 330 W, 2.8 A @ 120 V, 60 Hz
  345 W, 1.5 A @ 230 V, 50 Hz
• Gobo Size:24 mm outside, 20 mm image, 1.1 mm max thickness
  Prism (1): 3-facet round, bidirectional rotation at variable speeds
  Prism (2): 5-facet linear, bidirectional rotation at variable speeds
• Zoom Angle: (manual): 12 deg; to 17 deg;
• Weight: 11.4 kg
• Size: 423 x 322 x 297
• Approvals: CE, MET
• Optional Controllers: RC-6

FEATURES

• Exceptionally bright, 150 W LED moving head spot designed for large events
• Motorized zoom for short-throw or long-throw applications
• Unique 14turn hanging bracket allows for single or dual clamp mounting options
• Dual rotating prisms splits the beam for great effects and to cover a larger area
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Emit crisp projections at almost any distance using the motorized focus
• Works with the IRC-6 for wireless control and triggering
• Activate built-in, automated and sound-activated programs, or control in DMX or Master/Slave mode
  powerCON;-compatible power input/output connections for power linking

SPECIFICATIONS

• DMX Channels: 9 or 15
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540deg/270deg;
• Pan and Tilt Ranges: 540deg, 360deg, 180deg pan/270deg, 180deg, 90deg; tilt
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 aluminum + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Light Source: 1 LED (white) 150 W, (12.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 1.8 kHz
• Illuminance: (10deg;): 38,000 lux @ 2 m (23deg;): 19,850 lux @ 2 m
• Power Linking: 3 units @ 120 V; 5 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current: 277 W, 2.5 A @ 120 V, 60 Hz
  268 W, 1.3 A @ 230 V, 50 Hz
• Gobo Size: 24 mm outside, 20 mm image, 1 mm max thickness
• Zoom Angle: (motorized): 10deg; to 23
• Weight: 12.4 kg
• Size: 220 x 322 x 466 mm
• Approvals: CE, MET
• Optional Controllers: IRC 6
• Prism: (1): 6-facet round, bidirectional rotation at variable speeds
• Prism: (2): 5-facet linear, bidirectional rotation at variable speeds

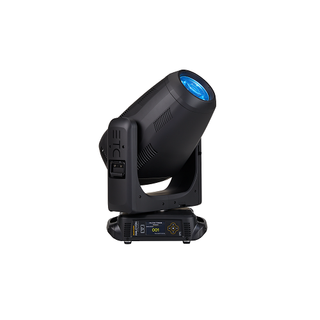

Meet Lonestar, a versatile and affordable lighting tool built for designers and programmers who want maximum performance from a mid-sized automated framing fixture. The budget-friendly luminaire brings punchy output, a professional feature set, and ETC’s legendary quality at a new, more affordable price point.

Engineered to easily fit into any lighting design, Lonestar is the most compact High End Systems framing fixture yet but doesn’t sacrifice any features or output.

Output

Offering punchy 15,400 lumen output from its Bright White LED engine, Lonestar delivers high brightness and visual impact to any stage.

Colour

With seamless CMY mixing, linear CTO plus a fixed colour wheel for the purest saturated colours available, all your needs are covered.

Shaping

Lonestar's full curtain framing shutters allow precise, repeatable beam shaping; put the light where you want it, and never where you don't.

Patterns

Shape your stage with Lonestar’s nine rotating patterns. Animation wheel, plus dual frosts and prisms produce limitless morphing and texture layering options

Beams

Build structure in the air with Lonestar’s beams. The 3.5 – 55 degree zoom range creates powerful narrow beams to wide washes and everything in between.

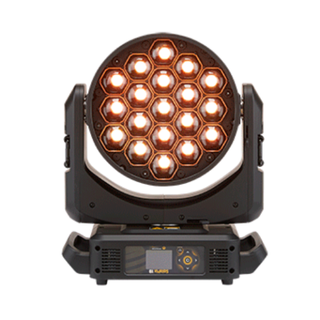

FEATURES

• Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
• 16-bit Dimming of master dimmer as well as individual colours for smooth control of fades
• Built-in colours for quick design possibilities
• Built-in virtual gobo wheel with background colours for impressive atmospheric effects
  fast movement of pan, tilt, and zoom
• Quiet operation for a wide range of installation situations
• DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
• Converts TCP/IP Protocol to DMX for shorter data cable runs
• 7deg 49deg; Zoom angle for variable beam sizes
• True 1 compatible power input

SPECIFICATIONS

OPTICAL

• Light Source: 12 LEDs (quad-color RGBW) 40 W, (2.6 A), 50,000 hours life expectancy
• Colour Temperature (range): 2800 to 10000 K
• Beam Angle: 5deg; to 36deg;Field Angle: 7deg; to 49deg;
• Zoom Angle: 7deg; to 49deg;Illuminance (7deg;): 19,000 lux @ 5 m
• Illuminance (49deg): 800 lux @ 5 m
• PWM Frequency: 900 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540deg/270deg
• Pan and Tilt Ranges: 180°, 360deg, 540° pan/90deg, 180deg, 270deg tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 323 x 233 x 471 mm
• Weight: 14.8 kg
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 1.5 m

CONTROL

• Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX
• DMX Channels Single Mode: 20, 69, 115
• DMX Channels Dual Mode – Function: 8, 20, 26
• DMX Channels Dual Mode – Pixel: 36, 48, 60
• Art-Net Channels Single Mode: 20, 69, 115
• Art-Net Channels Dual Mode – Function: 8, 20, 26
• Art-Net Channels Dual Mode – Pixel: 36, 48, 60

FEATURES

• Completely silent, fully-featured 560 W 95+ CRI LED yoke profile fixture including CMY+CTO colour mixing, a four-blade framing shutter system with rotation, a colour wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and rotating gobo wheels.
• 100% convection cooled for zero fan noise along with silent motion and effects
• 16-bit dimming with a selectable redshift of master dimmer for smooth control of fades
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• One rotating and one static gobo wheel with unique, theatrical based designs
• Interchangeable gobos between rotating and static wheels
• Variable frost system
• + or – 60 degrees rotation framing shutter system to allow for better framing positioning.
• Animation wheel for enhanced visual effects
• Iris for total beam control
• RDM control over DMX for fixture reporting
• 5 to 50 zoom angle for variable beam sizes
• True 1 compatible power input and throughput
• Battery backup display with auto-rotate depending on fixture orientation

OPTICAL

• Light Source: 1 LEDs (CW) 500 W, (15.5 A), 6000 K, 30,000 hours life expectancy
• Light Source: 1 LED (RGB) 60 W, (3.2 A), 50,000 hours life expectancy
• Colour Temperature (at full): 6000 K
• CRI: 95.6
• Beam Angle: 5 to 5
• Field Angle: 6 to 54
• Zoom Angle: 6 to 54
• Lumens Source: 20,672
• Lumens Output: 10,549
• Illuminance (6.4 DEG): 29,598 lux @ 5 m
• Illuminance (53.7 DEG): 640 lux @ 5 m
• Selectable PWM: 20,000, 40,000

DYNAMIC EFFECTS

• Pan and Tilt: 540DEG/270DEG
• Pan and Tilt Ranges: 540DEG, 360DEG, 180 pan/270, 180, 90 tilt
• Colours: 6 + white, split colours, continuous scroll at variable speeds
• Colours: CMY flags, CTO flag, colour correction
• Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 23 mm (image)
• Effect Wheel: 1 effect
• Framing Shutters: Yes
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Variable Frost, Motorized
• Iris: Motorized,15 Leaf
• Prism: 5 Facets, round, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
• Weight: 75.5 lb (34.4 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant Polymer

CONNECTIONS

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
• DMX Channels: 32 or 41
• Art-Net Channels: 32 or 41
• Modes/Personalities: 2 personalities (32, 41)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V

CERTIFICATIONS / QUALIFICATIONS

WHATS INCLUDED

• Maverick Silens 2 Profile
• Seetronic Powerkon IP65 power cord
• 2 Omega brackets with mounting hardware
• Gel Frame Holder and Gel Frame

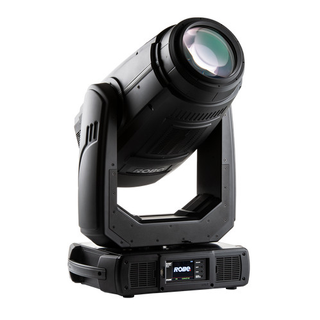

T1. The new ONE and only fixture you need for theatre, television and touring and now with the option to be connected to the Robe innovative RoboSpot system.
