Round Sling Wire 2.0m, 2 Ton
Description
Round Sling Wire 2.0m, 2 Ton
Description

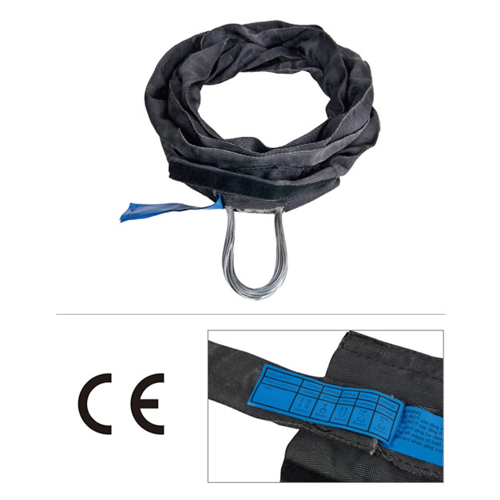

RIGPRO Polyester Round Sling w/Steel Wire Core
Polyester round sling but steel wire rope inside. This sling is composed of dia. 1.5mm steel wire in 34 loops, making it most flexible with superior strength. Inspection window covered by lid provides convenient access to check the wire rope. Identification labels are included under this lid. Heat resistance up to 150° C. Load capacity 2,000kgs with safety factor 5, whereas it turns to be load capacity 1,000kgs according to BGV-C1 with safety factor 10. Minimum bending radius R=6mm.
Working Length Required
As defined by arrows meaning circumference of complete sling when laid flat, so called "pull to pull" length.
Sling Angle
When slings are used in a basket hitch and suspended from one hook, sling angles will directly affect the rated capacity of any sling. Sling capacity decreases as the angle from horizontal decreases.
Working Load Required
Subject to heaviest loads, lifting conditions, and angles.
Specification
| Product Code | Length | Load Capacity |
| RS-S102 | 1M | 2,000 kg |
| RS-S202 | 2M | |
| RS-S302 | 3M | |
| RS-S402 | 4M | |
| RS-S502 | 5M |
- Inspection window for checking the steel wire easily.
- Identification labels clearly reveal the specification of this sling.
