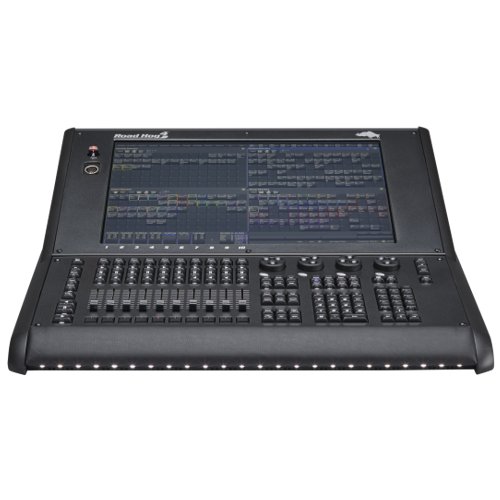

The most cost effective Hog ever, the Road Hog 4-21 strikes the perfect balance between performance and economy. The programming interface remains familiar, and the ergonomics of the console’s compact chassis are unparalleled, while the shared Hog software environment lets the user transition across the whole range without sacrificing workflow.

Programmers will love the 21.5”, high-resolution display providing ample space for customized screen layouts with one additional video output. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are provided for Art-Net, sACN and console networking. This Hog packs an enormous punch!

Road Hog 4-21 is the go-to desk for venues and rental companies around the globe. It’s easy to see why — the size, weight, and generous programming surface ticks all the right boxes.

Might we suggest that Road Hog 4-21 pairs beautifully with a couple of external touchscreens and a MiniWing 4?

With eight universes of onboard processing, four local DMX outputs, two external touchscreen connections, USB and HogNet / FixtureNet ports, you are ready to rock. SMPTE, MIDI, and more DMX are only a Widget away!

Product Features

Robust Hog 4 OS operating system
Hog-Net connector
Fixture-Net connector
Unlimited simultaneous crossfades
Internal solid-state hard drive
One internal 21.5-inch 10-point touchscreen
Two DisplayPort monitors/touchscreens supported
10 manual playback faders
Four expanded-wheelset encoders
12 user-assignable function keys
Kensington security slot
Integrated dimmable white lapwork light
Integrated dimmable blue vent light
One dimmable white/blue desk light included
Two USB flash drives for show storage and console recovery included
Dust cover included
Custom road case available
Compliance: ETL, CETL, CE
Capture Lighting Design Software, Duet

Weights and Dimensions

Width: 678mm
Depth: 701mm
Height: 206mm
Weight: 17.5kg

Connectivity

Local output processing: 8x universes (4096 output channels) expandable total outputs using DMX Processors (HPU or DP8K)
Local DMX-512 outputs: 4x Neutrik 5-pin XLR
Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
Solid-state hard drive
Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DP8Ks
MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/sACN, unrestricted by local output capacity)
OSC (Open Sound Control) for remote control and integration
Supports USB playback and expansion Wings
9 USB ports for flash drives, pointing devices, keyboards
USB 2.0 ports: 4 rear
USB 3.0 ports: 4 rear, 1 front
