Playback Wing 4 in Roadcase

Stock Code:
HES-PBW4C
POA
Quantity Breaks
1+
POA
Please Call
Lead Time:
3 Weeks

Description

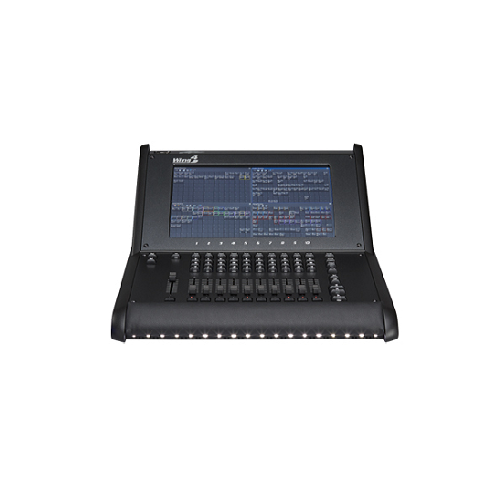

The Playback Wing 4 provides ten additional faders plus one Grand Master, all motorized. Hog 4 consoles and Hog 4 PC software benefit from the additional playback hardware the Playback Wing offers.

It uses the same high-quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable. A 15.6” touchscreen is integrated in the wing, allowing you to expand your console using one integrated unit.

Product Features

  • USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
  • Internal 15.6-inch 10-point touchscreen
  • 10 motorized playback faders
  • Motorized Grand Master
  • Master Choose column and paging buttons
  • Super Widget Expansion slot provides four DMX outputs from Hog 4 PC
  • Integrated dimmable white lapwork light
  • One dimmable white/blue desk light included
  • USB 2.0 ports: 2 rear
  • Dust cover included
  • Custom road case available
  • Compliance: ETL, CETL, CE

Electrical

  • Mains power: 100-250VAC, 50/60Hz, max 100W
  • Mains connector: IEC320 C13
  • Fuse: 1x 5x20mm 5AT fuse

Weights and Dimensions

  • Width: 512mm
  • Depth: 610mm
  • Height: 244mm
  • Weight: 12.5kg
