ColorSource CYC LED

Stock Code:
ETC-CSCYC
POA
Quantity Breaks
1+
POA
Make an Enquiry
Please Call
Notify When in Stock

Description

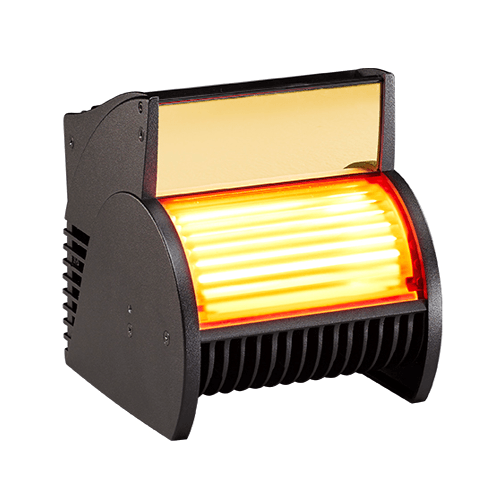

ETC ColorSource CYC

Sometimes size is everything.

The ColorSource CYC is dedicated to a single purpose: creating beautiful, smooth washes of light on a cyclorama or wall. And it delivers! Its compact, fan-free design features a unique five-colour mix of red, green, blue, indigo, and lime, giving an incredible range of colours at an affordable price.

Gone are the days of endless tinkering to get decent lighting on the cyclorama. ColorSource CYC is pre-focused. Simply set the fixture on the deck or hang it level and you're done!

Working together for complete coverage

ColorSource CYC fixtures work as a system to create an even, smooth wash by blending not only with their neighbour but their neighbour's neighbour.

Specifications

SOURCE
  • 42 Lumileds LUXEON C LEDs
  • 4,117 Max lumens
  • 31 Lumens per watt
  • L70 rating (hours to 70% output): 50,000 hours*
COLOUR
  • Red, green, blue, indigo and lime
  • Variable color temperature range
  • Calibrated array
  • No red shift
OPTICAL
  • No beam angle range
  • Gate size: N/A
  • No aperture size
  • No pattern projection
  • No pattern size
  • 1,200 Hz (default) and 25,000 Hz (via RDM)
  • built in accessory for spill control
ELECTRICAL
  • 100V-240VAC 50/60 Hz
  • powerCON power in and thru
  • 39A (first half-cycle) at 120V
  • 9 fixtures per circuit (20A switched circuit, R20 module or similar)
  • 133W/1.4W
THERMAL
  • Ambient operating temp: 0°–40° C
  • No fan
  • Droop compensation
  • 18.5 dBa average at 1 m
  • 453 BTUs/hour
CONTROLS
  • DMX512 via 5-pin XLR or RJ45 connector
  • DMX
  • 5 channel- IRGBS (5)
    Direct- IRGBILS (7)
    1 channel- I (1)
    RGB - RGB (3)
  • RDM configuration
  • UI type: 7-segment address display
  • Local control
  • 12 Onboard presets
  • 5 Onboard sequences
  • No onboard effects
  • Fixture-to-fixture control
  • Local level control via UI
