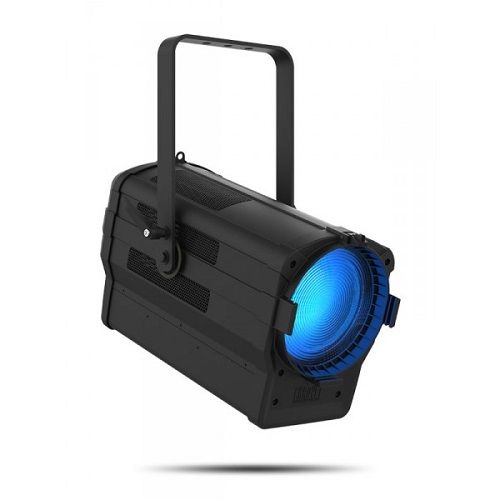

Ovation F-915FC RGBAL LED; 30-85 Motorised zoom
Stock Code:
CH-F-915FC
POA
Quantity Breaks
1+
POA
Please Call
Description
FEATURES
- Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
- Smooth, motorized zoom from 30deg; to 85deg;
- Beautiful 16-bit dimming of master dimmer and individual colours
- Easy to use onboard control of colour, zoom and dimming
- Virtual Color wheel with colour matched to popular gel colours
- Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Virtually silent operation for use in studio and theatre applications
SPECIFICATIONS
OPTICAL
- Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
- Colour Temperature (range): 2800 to 6500 K
- CRI (3200 K): 90
- Beam Angle: 17deg to 54deg
- Field Angle: 30deg to 85deg
- Zoom Angle: 30deg to 85deg
- Lumens (30deg): 4,294
- Lumens (73deg): 6,661
- Illuminance (30deg): 1,450 lux @ 5 m
- Illuminance (73deg): 312lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 569.44x 320 x 275 mm
- Weight: 8.6kg
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast
CONNECTIONS
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 1.5 m
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 3, 5, 7, 11, 13, 14 or 17
- Modes/Personalities: 8 personalities (3, 5, 7, 11, 13, 14, 17, HSV)
