Description

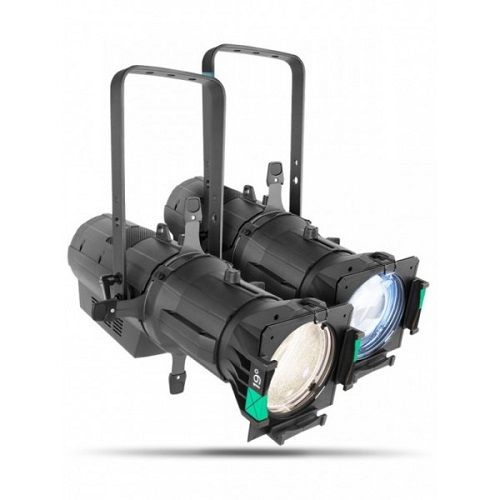

Ovation E-260WW is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

FEATURES

  • Warm or cool white ERS style fixture with output exceeding a tungsten 750w source
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 198 W, (3.5 A), 5452 K, 50,000 hours life expectancy
  • Color Temperature (at full): (WW) 3149 K; (CW) 5452 KCRI: (WW) 91; (CW) 90

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik power
  • CONPower Input: Neutrik power
  • CONPower Output: Neutrik power
  • CONData Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: (WW) DMX; (CW) DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)
