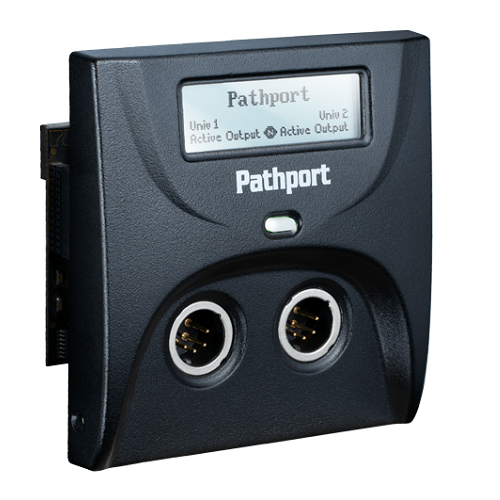

6202 Pathport C-Series 2-port XLR5F
Stock Code:
PP-6202
POA
Quantity Breaks
1+
POA
Limited Stock
Description
The original and most popular Pathport™ gateway. Suitable for flushmount, permanent installation, or for portable use.
- Two DMX512 ports, individually configurable
- DMX routing on a universe or channel-by-channel basis
- Multiple source merging or prioritizing
- DMX output speed and signal loss behavior user-set
- LCD display provides status feedback
- Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
- E1.20 RDM compliant as proxy device
- Manage up to 128 RDM responders per port
- Fits standard 2-gang, deep backbox
- Surface mount or portable enclosures as accessories
- Elegant design suitable for any location
- Supports the following Ethernet protocols:
- E1.31 Streaming ACN (sACN)
- Strand Shownet
- Pathport Protocol
- Art-Net
- ETC Net2 (receive only)
| Model | Description |
|---|---|
| 6201 | Pathport C-Series gateway with 2 DMX Inputs |
| 6202 | Pathport C-Series gateway with 2 DMX Outputs |
| 6203 | Pathport C-Series gateway with 1 DMX Input and 1 DMX Output |
