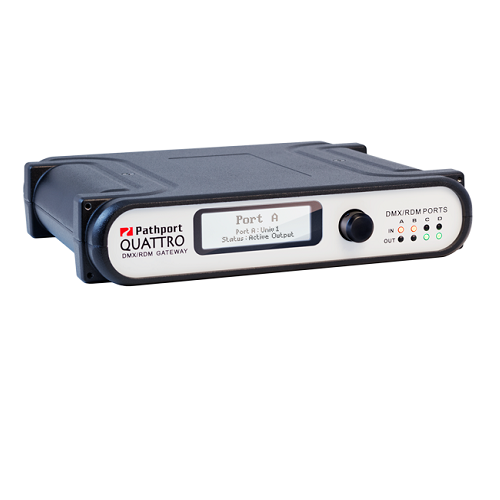

6321 Pathport Quattro 4-port Node w/ Rear XLR5F
Stock Code:
PP-6321
POA
Quantity Breaks
1+
POA
Limited Stock
Description
A compact four-port version of our popular DMX-over-Ethernet management gateways.
Power-over-Ethernet operation makes the Pathport QUATTRO ideal for truss-mounted locations, while silent, fanless operation allows it to be placed immediately next to the lighting console, no matter where the console must be located. The encoder knob/LCD screen interface provides front panel access to all common configuration parameters. Most users won’t need a computer for configuration.
- Four DMX512 ports, individually configurable
- 10/100Mb Ethernet port
- Front panel UI supports configuration of IP settings, port direction, basic patching and more
- Route DMX on either a universe or channel-by-channel basis
- Map up to eight sources to each output channel, with merge and/or priority options user-set for each source
- Acts as E1.20 RDM proxy controller, when used with freely downloadable Pathscape software
- DMX output speed and signal loss behaviour user-selectable
- Compact size – two gateways may fit side-by-side in 1RU of space
- Rackmount ears included
- Operates on Poe (Power over Ethernet) or auxiliary 24-48VDC power supply (accessory)
- Supports the following Ethernet protocols
- E1.31 streaming ACN (sACN)
- Art-Net
- Pathport Protocol
- Shownet
| 6321 | Pathport QUATTRO 4-Port gateway, rear XLR5F connectors |
| 6322 | Pathport QUATTRO 4-Port gateway, rear terminal connectors |
| 6326 | Pathport QUATTRO 4-Port gateway, rear RJ45 connectors |
