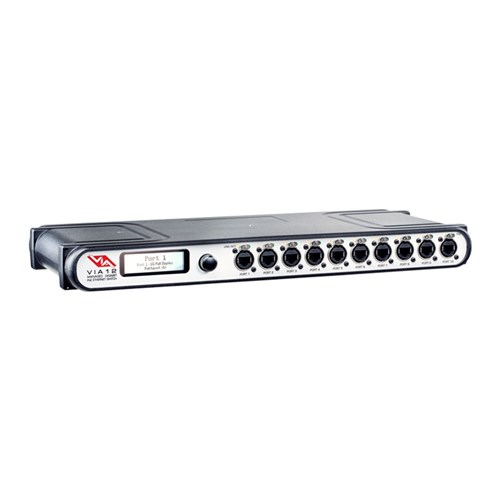

The VIA12 is a twelve copper port (plus two SFP+ ports) Gigabit Ethernet Switch designed specifically for lighting, sound and video signal routing in all entertainment production systems, including live shows.

Unlike switches designed and marketed for office and communication applications, VIA12 is convection cooled and ships as an unmanaged switch, pre-configured and optimized for entertainment network use. Layer 2 and 3 management features are enabled and configured through the front panel interface and the Pathscape software suite.

Trap Art-Net and convert it to sACN
Features include IGMP querier and snooping, DHCP server per VLAN, bandwidth monitor, Dante-compliant QoS option, EAPS, ring protection, Rapid Spanning Tree (RSTP)
Silent operation - fanless, convection-cooled design
Illuminated LCD display and rotary encoder for displaying and setting switch and port properties
Global properties editable from front panel interface: IP Address, Subnet Mask, Default Gateway, VLAN Configuration, Link Speed, PoE Allocation, DHCP Pool, Ring Protection
Properties displayed by front panel interface: Switch Name, Port Name, PoE usage, Serial Number, MAC address, firmwareProperties displayed by front panel interface: Switch Name, Port Name, PoE Usage, Serial Number, MAC Address, Firmware Version, Connected Devices (LLDP Compliant), Link Status and Speed, Bandwidth Monitor
Model 6750-P features an integrated 100W PoE supply for powering compatible external devices
Up to 15W of Power-over-Ethernet (PoE) may be allotted to each copper port (6750-P Model)
Twelve locking etherCON RJ45 ports (ten on front panel, two on rear) support 10/100/1000Base-T speeds
Two mini-GBIC ports on rear panel, for SFP or SFP+ fiber modules (1000Base-LX, 1000Base-SX, 10GBase-SR or 10GBase-LR)
Supports SFP+ 10Gbit Direct-Attach cables, both active and passive
Link Layer Discovery Protocol (LLDP)
Includes rack ears; wall and truss mounts available as accessories
