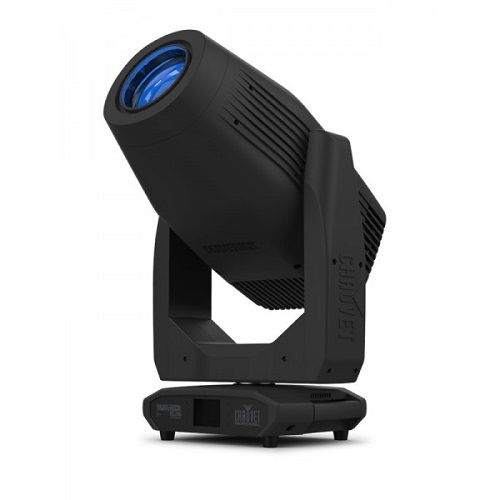

Maverick Silens 2 Profile 500W LED
Stock Code:
CH-MAVSILENS
POA
Quantity Breaks
1+
POA
Please Call
Description
FEATURES
- Completely silent, fully-featured 560 W 95+ CRI LED yoke profile fixture including CMY+CTO colour mixing, a four-blade framing shutter system with rotation, a colour wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and rotating gobo wheels.
- 100% convection cooled for zero fan noise along with silent motion and effects
- 16-bit dimming with a selectable redshift of master dimmer for smooth control of fades
- Variable CMY + CTO colour mixing system to create a wide pallet of colours
- One rotating and one static gobo wheel with unique, theatrical based designs
- Interchangeable gobos between rotating and static wheels
- Variable frost system
- + or – 60 degrees rotation framing shutter system to allow for better framing positioning.
- Animation wheel for enhanced visual effects
- Iris for total beam control
- RDM control over DMX for fixture reporting
- 5 to 50 zoom angle for variable beam sizes
- True 1 compatible power input and throughput
- Battery backup display with auto-rotate depending on fixture orientation
OPTICAL
- Light Source: 1 LEDs (CW) 500 W, (15.5 A), 6000 K, 30,000 hours life expectancy
- Light Source: 1 LED (RGB) 60 W, (3.2 A), 50,000 hours life expectancy
- Colour Temperature (at full): 6000 K
- CRI: 95.6
- Beam Angle: 5 to 5
- Field Angle: 6 to 54
- Zoom Angle: 6 to 54
- Lumens Source: 20,672
- Lumens Output: 10,549
- Illuminance (6.4 DEG): 29,598 lux @ 5 m
- Illuminance (53.7 DEG): 640 lux @ 5 m
- Selectable PWM: 20,000, 40,000
DYNAMIC EFFECTS
- Pan and Tilt: 540DEG/270DEG
- Pan and Tilt Ranges: 540DEG, 360DEG, 180 pan/270, 180, 90 tilt
- Colours: 6 + white, split colours, continuous scroll at variable speeds
- Colours: CMY flags, CTO flag, colour correction
- Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 23 mm (image)
- Effect Wheel: 1 effect
- Framing Shutters: Yes
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Variable Frost, Motorized
- Iris: Motorized,15 Leaf
- Prism: 5 Facets, round, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move-in-Black: Yes
- Dim Curves: 4
CONSTRUCTION / PHYSICAL
- Dimensions: 17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
- Weight: 75.5 lb (34.4 kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant Polymer
CONNECTIONS
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
- DMX Channels: 32 or 41
- Art-Net Channels: 32 or 41
- Modes/Personalities: 2 personalities (32, 41)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
CERTIFICATIONS / QUALIFICATIONS
WHATS INCLUDED
- Maverick Silens 2 Profile
- Seetronic Powerkon IP65 power cord
- 2 Omega brackets with mounting hardware
- Gel Frame Holder and Gel Frame
