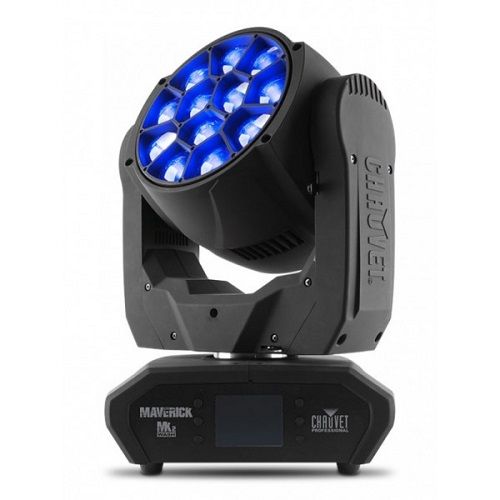

Maverick MK2 Wash 480W LED
Stock Code:
CH-MAVMK2WASH
POA
Quantity Breaks
1+
POA
Please Call
Description
FEATURES
- Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
- 16-bit Dimming of master dimmer as well as individual colours for smooth control of fades
- Built-in colours for quick design possibilities
- Built-in virtual gobo wheel with background colours for impressive atmospheric effects
fast movement of pan, tilt, and zoom - Quiet operation for a wide range of installation situations
- DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
- Converts TCP/IP Protocol to DMX for shorter data cable runs
- 7deg 49deg; Zoom angle for variable beam sizes
- True 1 compatible power input
SPECIFICATIONS
OPTICAL
- Light Source: 12 LEDs (quad-color RGBW) 40 W, (2.6 A), 50,000 hours life expectancy
- Colour Temperature (range): 2800 to 10000 K
- Beam Angle: 5deg; to 36deg;Field Angle: 7deg; to 49deg;
- Zoom Angle: 7deg; to 49deg;Illuminance (7deg;): 19,000 lux @ 5 m
- Illuminance (49deg): 800 lux @ 5 m
- PWM Frequency: 900 Hz
DYNAMIC EFFECTS
- Pan and Tilt: 540deg/270deg
- Pan and Tilt Ranges: 180°, 360deg, 540° pan/90deg, 180deg, 270deg tilt
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: No
- Color Temperature Presets: Yes
- Move-in-Black: Yes
- Dim Curves: 4
CONSTRUCTION / PHYSICAL
- Dimensions: 323 x 233 x 471 mm
- Weight: 14.8 kg
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer
CONNECTIONS
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 1.5 m
CONTROL
- Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX
- DMX Channels Single Mode: 20, 69, 115
- DMX Channels Dual Mode – Function: 8, 20, 26
- DMX Channels Dual Mode – Pixel: 36, 48, 60
- Art-Net Channels Single Mode: 20, 69, 115
- Art-Net Channels Dual Mode – Function: 8, 20, 26
- Art-Net Channels Dual Mode – Pixel: 36, 48, 60
