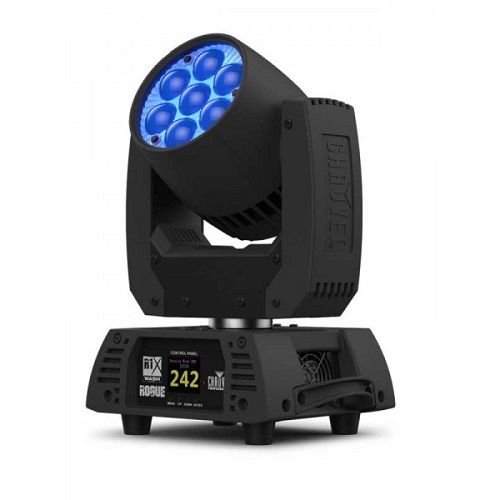

Powered by seven RGBW 25 W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique,bubble” lens design for excellent colour rendering and stunning visual effects.

Other standout features include an incredible 7.9deg to 62.7deg zoom range, high-speed and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors.

Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.

Fully featured RGBW LED yoke wash fixture with zoom
16-bit dimming of master dimmer as well as individual colours for smooth control of fades
7 RGBW LEDs, 25 W each
3- and 5-pin DMX input/output connections
Unique lens design for excellent colour blending
Fast, smooth pan and tilt movement
RDM Enabled for remote addressing and troubleshooting
Selectable LED maximum output to match legacy Rogue R1 Washes
Selectable PWM settings for camera operation
6 distinct dimming modes for advanced control
User-selected calibrated white for 7500 K at full output
Omega mounting bracket fits all Rogue and Maverick fixtures
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility

Optical

Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Colour Temperature (range): 2800 to 10000 K Beam Angle: 8 deg; to 30 deg;
Beam Angle: 7.9 deg; to 35.5°
Field Angle: 11.5 deg; to 50.8°
Cutoff Angle: 19.3 deg; to 62.7°
Zoom Range: 7.9 deg; to 62.7°
Lumens – Source: 4,000
Lumens – Output: 2,455
Illuminance (11 deg;): 2,872 lux @ 5 m
Illuminance (50 deg;): 279 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540 deg & 230 deg;
Pan and Tilt Ranges: 180 deg, 360 deg, 540 deg; pan 90 deg;, 180 deg; 230 deg; tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Built-in Automated Programs: Yes
Customisable Programs: No
Recall Custom Programs: No
