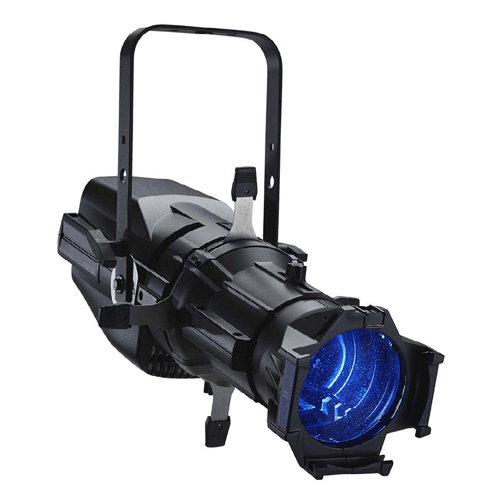

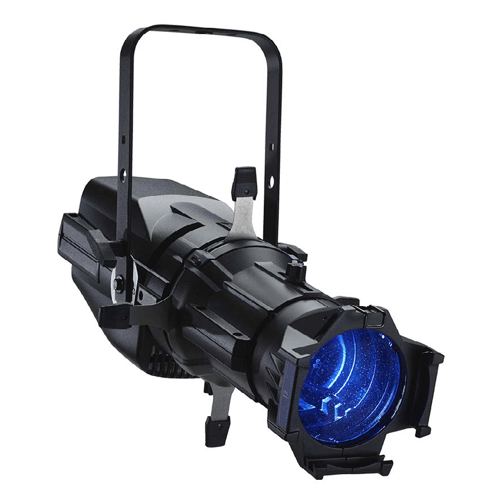

ColorSource Spot LED Luminaire, Deep Blue, RGB + Lime Control, DMX Black
Description
Rich, emotional color
An LED luminaire crafted by lighting experts, ColorSource Spot uses a balanced recipe of red, green, blue, a twist of lime, and an extra dash of red to provide a richness of color only possible from ETC LED luminaires. ColorSource Spot outputs bright, beautiful light, is easy to use with or without a lighting desk, and lives up to ETC's high standards for quality.
ColorSource luminaires are factory-calibrated to ensure consistency. Their four-color mixing system offers bright, vibrant colors, and perfectly-mixed pastels.
The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.
ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-color mixing system offering bright, vibrant colors and perfectly-mixed pastels.
The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.
About the ColorSource Array options - Original vs. Deep Blue
Original ColorSource fixtures use an RGB-L array where the ‘B’ represents the use of blue LEDs. ColorSource Deep Blue replaces those blue LEDs with a deeper 'Royal Blue" (indigo) LED. How does this impact your color mixing? Please reference the color chart below.
Original ColorSource fixtures can reach any color within the dark shaded triangle while the ColorSource Deep Blue fixtures can reach any color within the light shaded triangle. While much of these areas overlap, there is a portion of each range that can only be reached by the respective color arrays (A=Original, B=Deep Blue).
S P E C I F I C A T I O N S
SOURCE
- 60 Lumileds LUXEON® Rebel LED
- 6,932 Max lumens
- 42.4 Lumens per watt
- L70 rating (hours to 70% output): 54,000 hours (both variants)*
COLOR
- Spot: Red, green, blue, limeSpot DB: Red, green, indigo, lime
- Color mixing
- Calibrated array
- No red shift
OPTICAL
- Swappable lens tubes between 5-90 degrees
- 79-24 mm Gate size
- 6.25"-14" (depending on lens tube) aperture size
- Pattern projection
- A or B Pattern size
- 1,200 Hz (default) and 25,000 Hz (via RDM)
- Can be used with Source Four LED CYC and Fresnel adapters
ELECTRICAL
- 100-240 VAC 50/60 Hz
- powerCON power in and thru
- 28 A at 120 V (First half-cycle)
46 A at 240 V (First half-cycle) - 9 fixtures (15 A power thru connector) or 10 fixtures (R20 module or similar)
- 147 W / 1.87 W at 120 V
- 1.24 A at 120 V
THERMAL
- Ambient operating temp: 0–40deg
- Fan (controllable)
- Droop compensation
- 21.2 dBa average at 1 m
- 504.78 BTUs/hour
CONTROLS
- DMX512 via 5-pin XLR connector Input method
- DMX512/RDM
- 4 modes for footprint
- RDM configuration
- UI type: Seven-segment, three-button interface
- Local control
- 12 Onboard presets
- 5 Onboard sequences
- No onboard effects
- Fixture-to-fixture control
- 15-bit virtual dimming engine
