DALI DT8 Decoder, 4ch; 5A, 12-36VDC, CV
Description

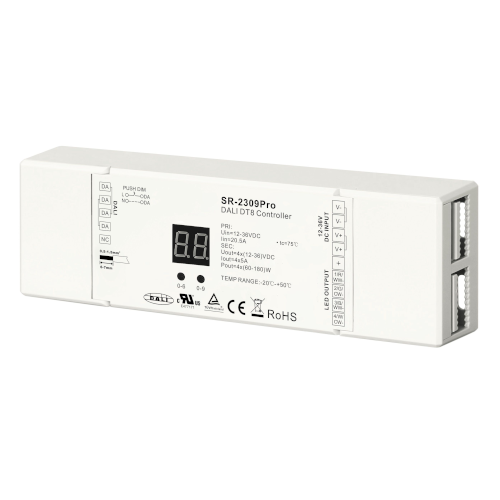

SR-2309PRO is a 4 in 1 DALI DT8 LED Controller which is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011. It is DALI DT8 device with built-in DALI-2 interface.
Four universal device types in 1: Primary N, Tc, XY coordinate and RGBW.
This control gear is designed with 4 channels PWM output, which enables to control tuneable white LEDs, RGB LEDs, RGBW LEDs depending on the device type configured. This control gear is innovative to be compatible with universal DALI systems, whatever DALI DT8 device types a DALI system support, this control gear supported all DALI DT8 device types.
DALI address can be freely set using the buttons and digital display even without a DALI master controller.
This control gear also supports push dim to control not only brightness but also colour temperature and RGB colours even if there is no DALI signal.
Key Features
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT8 device
- 4 in 1 DALI DT8 LED controller
- Multi-devices integrated in one control gear
- DALI DT8 device to control RGBW Outputs or tuneable white outputs via single DALI address
- Only 1 address required to control 4 outputs separately under primary N mode
- 4 Channels constant voltage or constant current output
- Control of four PWM outputs via DALI device type 8
- Colour control as defined in the DALI specification device type 8
- Colour type primary N, Tc, XY coordinate, RGBW can be set by manual buttons
- Supports DT8 device commands, compatible with DALI masters that support DT8 commands
- Configuration via DALI master USB interface
- Numeric display for setting DALI address manually
- Compatible with universal AC push switch
- Waterproof grade IP20
