DMX Decoder 2ch; CC 250-1500mA; 50w; Screw Terminals
Stock Code:
SR-2106-50W-CCT
Quantity Breaks
1+
In Stock
Description

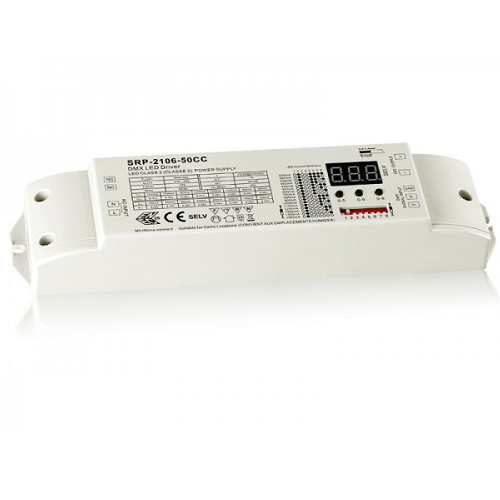

SRP-2106-50CC is a 50w dimmable DMX LED driver with 1 channel constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DMX address can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers.
Key Features
- Dimmable LED driver, Max. output power 50W
- 1 channel constant current output, 250mA ~ 1500mA Adjustable by DIP switches
- Class ? power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF 0.9, Efficiency 87%
- Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers
- DMX address can be manually assigned via buttons and showed on digital display
- To control single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
