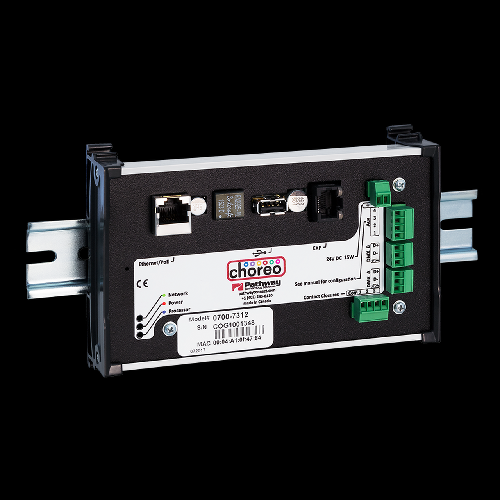

The Choreo™ DIN-mount is a headless playback controller for dynamic DMX512 lighting systems, compatible with all Pathway DIN System Enclosures, Pathport DMX/RDM Ethernet Gateways and VIA Entertainment Ethernet Switches. Using a laptop or tablet and VNC Viewer, you have full, live control of Choreo's natural language interface. This makes the selection of lights, adjustment of their attributes, and the recording of reference libraries, memories and cues fast and simple. Once programmed, use Pathway NSB Wall Stations to trigger memories or cues. Other events can be triggered by the astronomical clock.

Select the Lights you want to control.

No command line to learn – manage images, not numbers
Choreo groups Lights automatically to reduce setup time
Groups you create reduce programming time
Real-time visual feedback – the entire venue at a glance
Segregate lights into rooms to declutter the display

Control your lights quickly and easily with a large, well-ordered assortment of tools.

Never look at a DMX chart again
Tools categorized by Intensity, Color, Position and Shape – recall them in an instant with touchscreen tools
Attribute reference libraries enable fast programming
Tunable White, Dim to Warm Correlated Color Temperature and multiple Color Spaces make working with LEDs a joy, not a chore
Apply comprehensive, simple-to-adjust Effects to any attribute

Record what you see to memories, playlists and chases. Trigger it with time clock event playback or external show control interfaces.

Save Memories on an unlimited number of pages for on-the-fly playback from the touchscreen or external controls
No cue number constraints – record, drag and drop them on an unlimited number of playlists at will, then run them from the touch screen, from external controls or synchronize with timecode for automated playback
Capture Groups, Colors, Positions and Shapes into custom reference libraries
Unlimited timing and transition options enable nuanced show playback
Actions on Cues and Memories associate powerful show control functions with any trigger

Playback your work and see it come together.

Organise show elements in Memory Pages and Playlists
Password-protected touchscreen lock-out function presents a set of configurable Memory Pages or a Playlist for recall from the touchscreen
Schedule individual Memory and Cue Playbacks to happen on specific days at exact times or relative to sunrise and sunset

Choreo will not intimidate your facilities personnel and it will not frustrate your creative design team.

DMX512 and Ethernet output including Art-Net, KiNET, E1.31 sACN and Pathport
Use any VNC viewer for remote control and playback
Unlimited Intensity, Color, Position and Shape attribute timing
Automatic Move-In-Black feature with memories and cues
Power-over-Ethernet or 24VDC operation
7" capacitive touchscreen (7TS models)
Show file management between Cognito2, CognitoPC or other Choreos over the network; USB port for local backups
Multi-platform Off-Line Editor and compatibility with Cognito2 lighting control console
Continually updated library of fixture definitions available online
