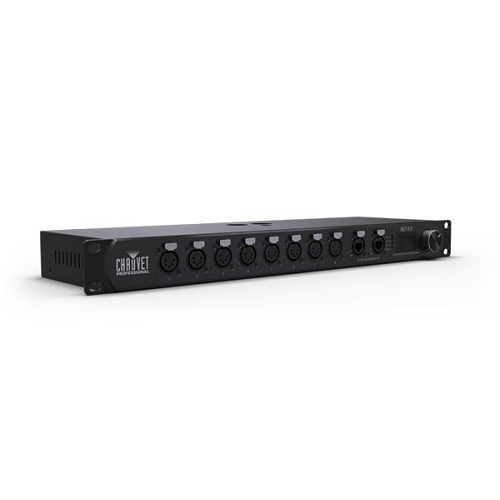

Net-XII is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets, which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs and all optically isolated and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs (or the Ethernet inputs to mix network inputs with DMX inputs in a single device). LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library while providing experts with a highly customizable network infrastructure for complex control systems.

At a Glance

5-pin DMX splitter/distributor
Art-Net/sACN to DMX converter, up to 8 universes
DMX to Art-Net/sACN converter, up to 8 universes
Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs
HTP (highest takes priority) and LTP (latest takes priority) merge functions supported
Backup settings and configurations with the same or other NET-X IIs
Webserver supported for remote configuration and backup/update
Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones, 1 at a time, using the 5-wire Phoenix cold contacts on the rear of the unit
Supports RDM over Art-Net for remote fixture management
