BroaMan Route66 - Fibre Patchbay
Description
Route66 Fibre Patchbay is perfect solution for studio infrastructure or advanced OB Vans. It is a standalone protocol independent fibre router - can be used to route open as well as proprietary protocols like SMPTE-311m (camera - CCU fibre link), Studer A-Link, Calrec Hydra, Yamaha TwinLANe, Gigabit Ethernet etc. All of those mentioned streams can be freely routed in the Optocore Control software, external hardware or 3rd party software control. Single Route66 can work with multiple different protocols at the same time.
Route66 replaces manual fibre patchbay and necessity to patch cables manually every time the production changes – with Route66 single operator can do all patching from the remote location via LAN.

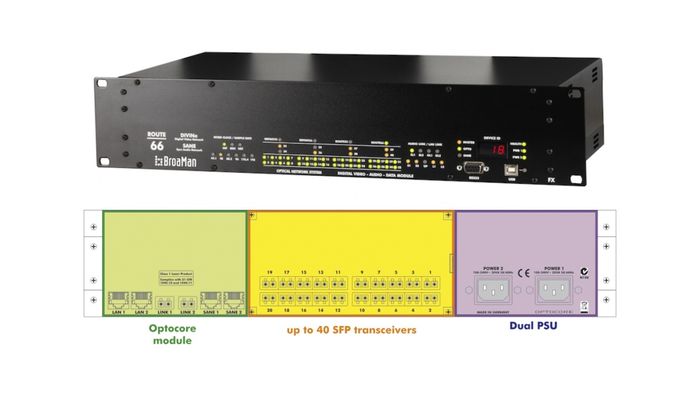

KEY FACTS:
- Up to 40 bi-directional SFP slots
- Each SFP supports bandwidth up to 4G
- Protocol transparent and independent
- Fibre patching controlled from software
- 4 x LAN
- No fan
- Dual redundant PSU
- 2RU chassis
Optical Connection Complies with 21 CFR 1040.10 and 1040.11
- Connection LC
- Data rate Dependent on the Protocol data rate - up to 4GBit
SANE, LAN ports Convention
- Audio TIA - 568A/B, Optocore 200 Mbit/s
- LAN TIA - 568A/B, IEEE - 802.3 10/100 Mbit/s
Remote Control
- RS232 EIA / TIA - 232 57 600 Baud
- USB USB 2.0 - Device 12 Mbit/s
- LAN IEEE - 802.3 10/100 Mbit/s
Power Supply
- Type Switch-mode, universal input
- Mains voltage 240 V 50 60 Hz
- Frequency 50 60 Hz
- Cooling Passive, via surface and ventilation openings on both sides of the device
