Barrel Clamp, Silver
Description

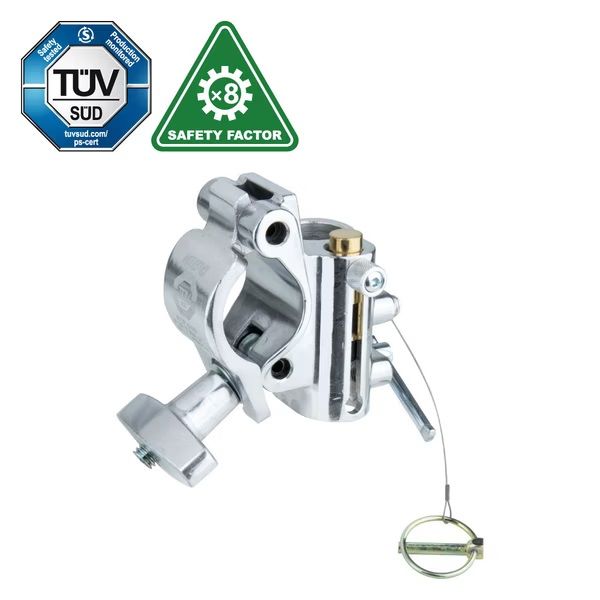

Kupo TV Barrel Adapter - Chrome
KU-KCP-844, KG808010
The Kupo TV Coupler is built for heavy-duty lighting equipment and comes with a 16mm receiver and 28mm spigot.
TUV approved, the TV Coupler is constructed by rugged die-cast aluminum and extruded aluminum and features a hinged locking jaw.
The TV Coupler comes with a 28mm junior socket for a luminaire or telescopic hanger.
The 3/8in threaded 16mm baby stud is also available and can alternate with the 16mm baby socket via the spring latch for lighter weight lights and accessories.
The hinged locking jaw is restricted, making operation for single handed use easier. The safety wire is built in with the clamp to ensure this essential safety aid is always on hand.
The Kupo TV Coupler will support up to 300kg on the 28mm attachment, and 40kg on the 16mm attachment.
- Built for heavy-duty lighting equipment and comes with a 16mm receiver, spigot and a 28mm receiver
- Supports up to 300kg on the 28mm attachment, and 40kg on the 16mm attachment
- Fits pipes/tube dia: 48mm-51mm
- Constructed from high-tensile aluminum extrusion
Specifications
- Weight: 0.91kg
- Color: Chrome
- Product Height (cm): 7.88cm
- Product Length (cm):16.6cm
- Product Width (cm): 15.5cm
- Product Weight (kg): 0.91kg
- Maximum Payload Capacity (kg): 300.0kg
- Maximum Jaw Diameter (mm): 51.0mm
- Minimum Jaw Diameter (mm): 48.0mm
- Primary Material: Aluminum
- Secondary Material: Steel
- Warranty: Limited Two-Year Warranty
