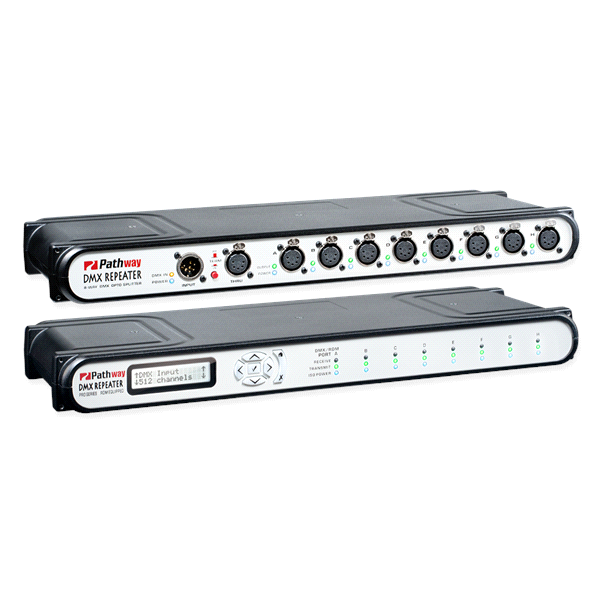

The Pathway DMX Repeater series of opto-splitters are an essential component of DMX distribution systems, permitting star-wiring configurations while isolating and protecting equipment from electrical faults.

RDM Hub models provide Ethernet-type intelligence features on a pure DMX512 network and an RDM controller.

Other advanced features include input sensing, prioritization between two controllers, or HTP merging of two sources with one source able to roam - ideal for incorporating remote focus units.

Pathway Pro marked products are geared for advanced entertainment lighting system applications and are available only to authorized buyers.

Control Device Type	Interface Device
Mounting Location	Portable
Product Type	Opto Splitter
Network Compatibility	DMX, RDM
Networkable Control	Yes
Voltage Rating	100-240
# of Comm. Ports	8
Receiving Protocol	DMX, RDM
Sending Protocol	DMX, RDM
Dimming Protocol	DMX, RDM
Compliance Listing	BAA and BABA, ROHS
Regulatory Listing	CE, ETL
Series	PWREP

Variations of the PWREP

9014	CI-273W6V	PWREP RM P8 XLR5F REAR NONRDM	DMX Repeater, 8 Way, Rear 5-pin XLR, Fully Isolated
9014-3	CI-273W7N	PWREP RM P8 XLR3F REAR NONRDM	DMX Repeater, 8 Way, Rear 3-pin XLR, Fully Isolated
9015	CI-273W7V	PWREP RM P8 TERM REAR NONRDM	DMX Repeater, 8 Way, Rear Terminal, Fully Isolated
9016	CI-273W84	PWREP RM P8 XLR5F FRONT NONRDM	DMX Repeater, 8 Way, Front 5-pin XLR, Fully Isolated
9016-3	CI-273W86	PWREP RM P8 XLR3F FRONT NONRDM	DMX Repeater, 8 Way, Front 3-pin XLR, Fully Isolated
9017	CI-273W88	PWREP RM P8 RJ45EC REAR NONRDM	DMX Repeater, 8 Way, Rear RJ45 EtherCON, Fully Isolated
9018	CI-273W8E	PWREP RM P8 RJ45EC FRONT NONRDM	DMX Repeater, 8 Way, Front RJ45 EtherCON, Fully Isolated
