NIVOflex Stablio 200 x 100cm
Description

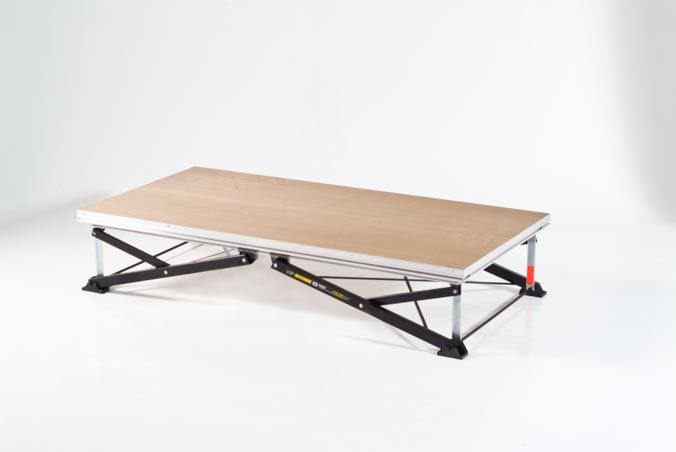

NIVOflex Stabilo
For use everywhere, rigid and robust. Made from high-strength aluminum extrusion with strong hollow section steel scissors arms.
The NIVOflex Stabilo platform height can be adjusted by pulling the Bowden cable levers at each ends without having to turn the platform over. The standard heights are 20, 40, 60, 80, 100 cm but also increments of 16 2/3 cm and tailor-made heights are available.
The height adjustment is locked by bolts which can be seen and heard when they shoot home. Wide plastic feet spread the load to protect the floor and ensure 100% structural security.
The NIVOflex Stabilo stage platform is bolted together for easy maintenance and repair and to allow all the individual parts to be replaced easily. (See our spare-parts list.) The multi-function profile allows all kinds of accessories to be fitted to complete your stage; fabric drapes, wood fascia, guard rails and stairs.
Specifications
- Size: 200 x 100 cm
- Load capacity: 750 kg/m2
- Test load: 1.237 kg/m2
- TUV tested according to DIN 15921 with a 1,65 safety factor
- Set-up height: max. 100 cm
- Storage height: 20 cm
- Wooden top: 22 mm
- Weight: approx. 59 kg
- Heights: 20, 40, 60 ,80 ,100 cm or 16 2/3 cm increments, special heights possible
