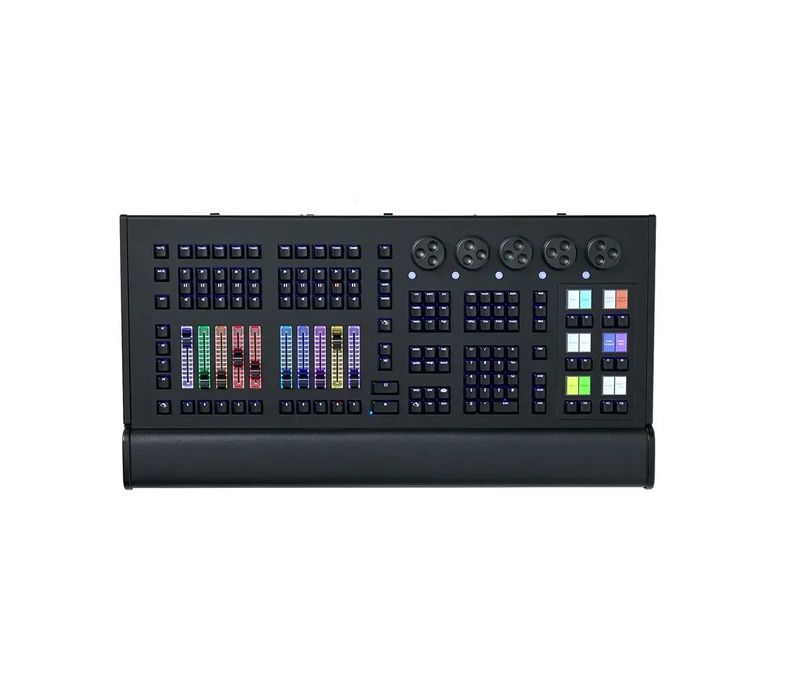

Flex Hog Console; 64 Universes; SMPTE; Fiber; Wi-Fi; No Road Case
Stock Code:
HES-FLEXHOG
POA
Quantity Breaks
1+
POA
Please Call
Description
Flex Hog
The Flex Hog console delivers streamlined simplicity while maintaining top-tier efficiency. Featuring the same reliable interface as the Tour Hog, minus the dashboard displays and keyboard drawer, the Flex Hog is the perfect console for productions that prioritize precision in a compact footprint.
PRODUCT FEATURES

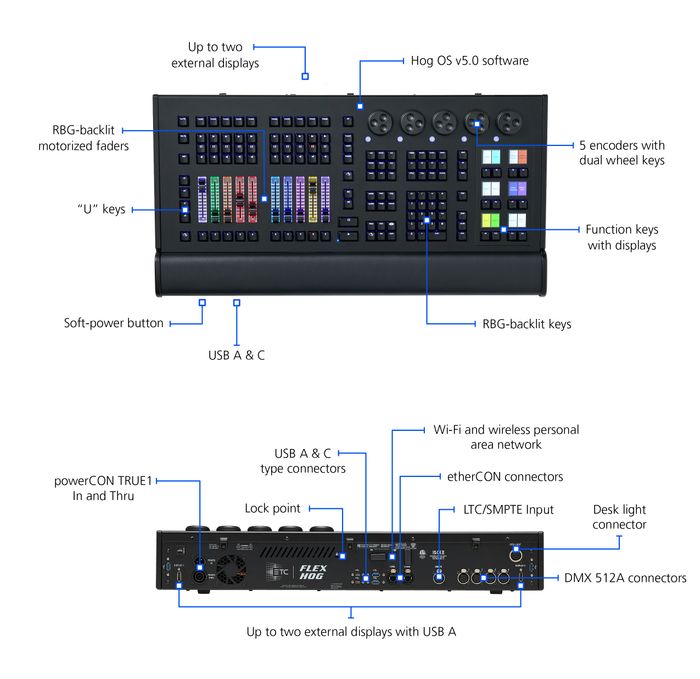

- 64 Universes
- Neutrik powerCONTRUE1 power input and thru
- Two Neutrik EtherCON Ethernet connections
- USB 3.0 type A (4) and type C (2) connectors
- Wi-Fi and Bluetooth antennas
- Four DMX outputs (5-pin XLR)
- SMPTE input (3-pin XLR)
- Desk Light (3-pin XLR, standard point)
DISPLAY FUNCTIONS
- Six full color function key displays
- Supports two external display port monitors at 1280x1024 minimum resolution, with optional touch or multi-touch control
- User configurable displays with recordable views
- Dedicated views to access most-used items quickly
- Palette, list, views, scenes, batches, effects directories
- Programmer window
- Plot views
- Output window
- Fixture Schedule and Patch windows, sortable by fixture or by universe
- Three color schemes for daylight use, regular use or dark environment use
PROGRAMMING
- Compact RGB backlit command keypad for quick programming
- Command-line interface
- Programmer window displays selected and adjusted fixtures
- Lists constructed with +, -, and Thru or selection softkeys, Next, Back and All commands
- Intensity set with command keypad, full key, intensity palettes
- Ordered groups
- Comprehensive fanning using segments and buddying
- 12 Function keys for user kinds and commands
- Dedicated kind keys and five high-resolution parameter encoders, with two keys per encoder
- Eight user "U-Keys" for user defined functions
- Media picker window
- Hog Color System
- Programmer window
- Groups for simplified fixture selection
- Palettes: intensity, position, colour, beam, effects
- Effects Engine
- Pixelmapping Effects
- Park
- Undo command
- Delete, Move and Copy commands
- Highlight, lowlight and rem dim commands
- Cue level and parameter level timing
- Record, Update and Merge commands
- Knockout and Clear commands
- Set command for text labels and data entry
PLAYBACK CONTROLS
- 10 pageable, motorized RGB-backlit master playbacks with customizable faders, flash, go, halt, back and choose keys
- Main playback stack including GM, Restart, Assert, Release, Pig, Skip Forward, Skip Backward, Master Pause, and Master Play keys
- Master Ranges for quick reassignment of playback masters content
- Unlimited fader Pages
- Comment macros and keystroke macros
- Paging keys
- Virtual masters
- Scenes
- Batch controllers
- Group masters
- Triggering via Command keys
- Playback expansion via Tour Wing
- OSC input/output, MIDI messages, MIDI Show Conrol, MIDI/LTC timecode (MIDI via optional external MIDI interface)
INTERFACES AND ACCESSORIES
- Tour Wing playback wing
- Gig Hog programming wing
- HPU hybrid processing unit
- Response network gateways and interfaces
- ETCnomad
