Tour Hog Console; 24" Display; 64 Universes; Road Case; SMPTE; MIDI; WIFI; Fiber

Stock Code:
HES-TOURHOG
POA
Quantity Breaks
1+
POA
Please Call

Description

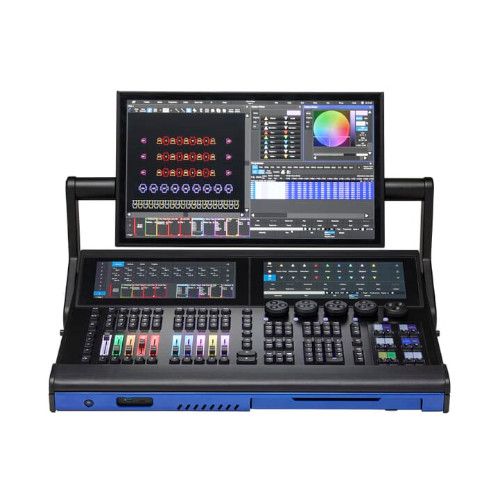

Tour Hog

The Tour Hog is designed to suit any production environment where a compact, all-in-one solution is required. Full of compelling, road-tested features in a stand-alone design, the Tour Hog is perfect for anything from festivals to local tours.

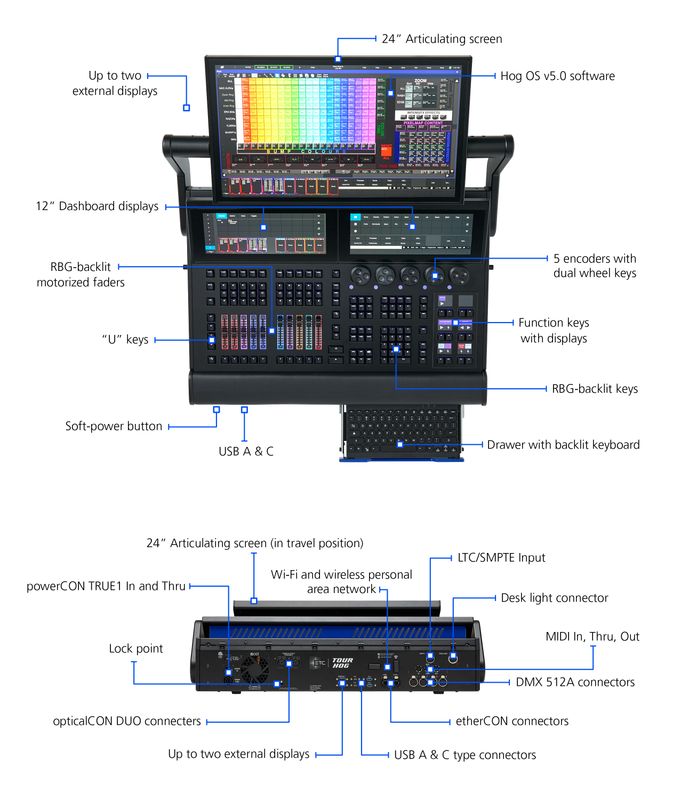

PRODUCT FEATURES

  • 64 Universes
  • Neutrik powerCON TRUE1 power input and thru
  • Two Neutrik EtherCON Ethernet connections
  • Two Neutrik Multimode opticalCON Duo connectors
  • USB 3.0 type A (4) and type C (2) connectors
  • Wi-Fi and Bluetooth antennas
  • Four DMX outputs (5-pin XLR)
  • SMPTE input (3-pin XLR)
  • MIDI In/Thru/Out
  • Desk Light (3-pin XLR, standard pinout)

DISPLAY FUNCTIONS

  • Built-in articulating 23.8" high resolution multitouch display and dual 12.5" dashboard displays; six full color function key displays
  • Supports two external display port monitors at 1280x1024 minimum resolution, with optional touch or multi-touch control
  • User configurable displays with recordable views
  • Dedicated views to access most-used items quickly
  • Palette, list, views, scenes, batches, effects directories
  • Programmer window
  • Plot views
  • Output window
  • Fixture Schedule and Patch windows, sortable by fixture or by universe
  • Three color schemes for daylight use, regular use or dark environment use

PROGRAMMING

  • Compact RGB backlit command keypad for quick programming
  • Command-line interface
  • Programmer Dashboard display for encoder mapping, command line/status display and additional programming tools
  • Programmer window displays selected and adjusted fixtures
  • Lists constructed with +, -, and Thru or selection softkeys, Next, Back and All commands
  • Intensity set with command keypad, full key, intensity palettes,
  • Ordered groups
  • Comprehensive fanning segments and buddying
  • 12 Function keys for user kinds and commands
  • Dedicated keys and five high-resolution parameter encoders, with two keys per encoder
  • Eight user "U-Keys" for user defined functions
  • Media picker window
  • Hog Color System
  • Programmer window
  • Groups for simplified fixture selection
  • Palettes: intensity, position, colour, beam, effects
  • Effects Engine
  • Pixelmapping Effects
  • Park
  • Undo command
  • Delete, Move and Copy commands
  • Highlight, lowlight and rem dim commands
  • Cue level and parameter level timing
  • Record, Update and Merge commands
  • Knockout and Clear commands
  • Set command for text labels and data entry

PLAYBACK CONTROLS

  • Playback Dashboard display for playback bar display, master ranges, and additional playback tools
  • 10 pageable, motorized RGB-backlit master playbacks with customizable faders, flash, go, halt, back and choose keys
  • Main playback stack including GM, Restart, Assert, Release, Pig, Skip Forward, Skip Backward, Master Pause, and Master Play keys
  • Master Ranges for quick reassignment of playback masters content
  • Unlimited fader Pages
  • Comment macros and keystroke macros
  • Paging keys
  • Virtual masters
  • Scenes
  • Batch controllers
  • Group masters
  • Triggering via Command keys

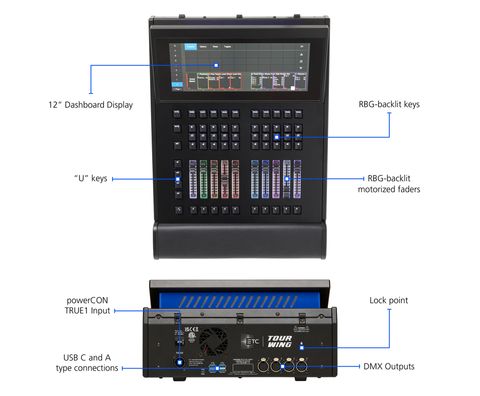

  • Playback expansion via Tour Wing
  • OSC input/output, MIDI messages, MIDI Show Conrol, MIDI/LTC timecode

INTERFACES AND ACCESSORIES
